Ceeco 8- Position 250 mm Planetary Cabling Line

Direction of wire travel:Right to left
Application: Assembly of colored optical fiber and UV resin coating / curing of strand core
Maximum reel flange diameter: 250 mm
Maximum rotational speed: 100 RPM
Fiber diameter range: 0.24 mm to 0.40 mm
Stranded cable diameter range: 0.90 mm to 1.40 mm
Tension member diameter range:0.25 mm to 0.50 mm
Maximum pulling tension: 50 kg
Lay direction: Right or left, reversible
Line components:
Tension member supply stand

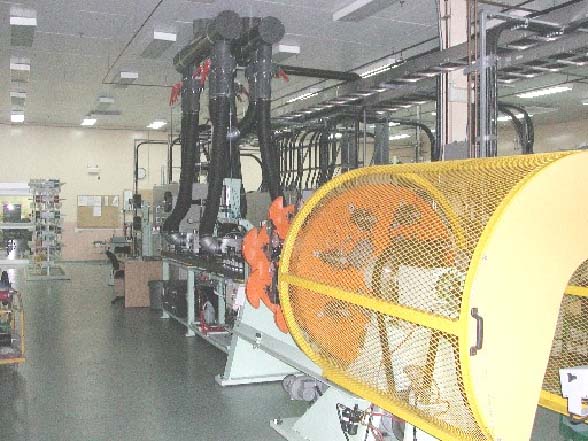

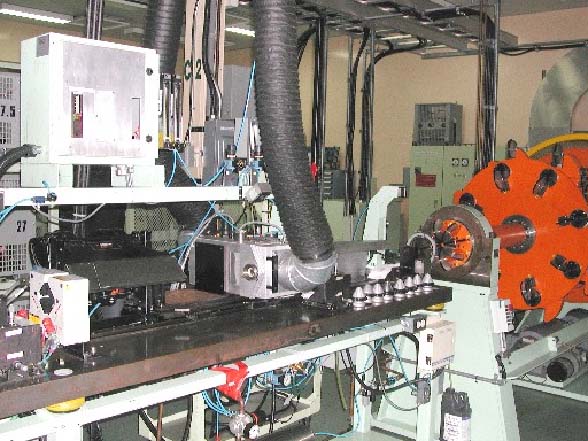

8-position planetary cabler
Stranding die stand
Pullout capstan
Length measuring unit
Driving motor and gear

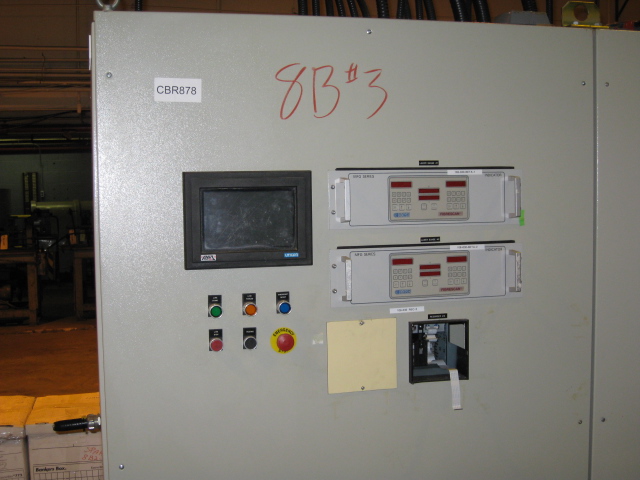

Control and operation panel
Accumulator unit
430 mm takeup stand

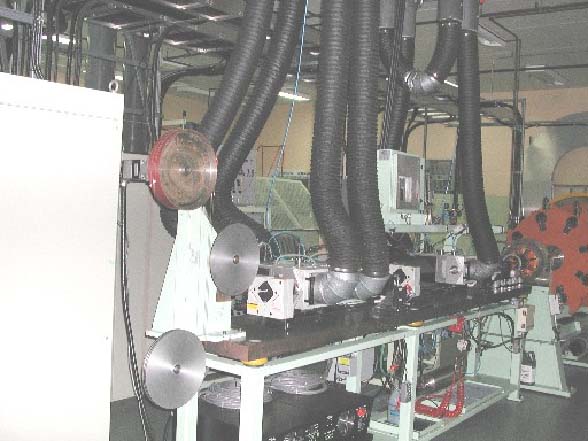

Resin coating / UV curing system

Note: missing table right after planetary, have all of UV system.
