Samp Fine Wire Drawing, Annealing and Spooling Line

Features:
Make: SAMP
Model: TRB3
Direction of wire travel: Left to right

Specifications:
Material: Copper or aluminum wire
Number of wires: 1
Maximum size of entering wire: #12 AWG (2.05 mm)
Maximum finish wire size: #24 AWG (0.50 mm)
Minimum finish wire size: #34 AWG (0.16 mm)
Maximum line speed: 9000 FPM (45 m/sec)

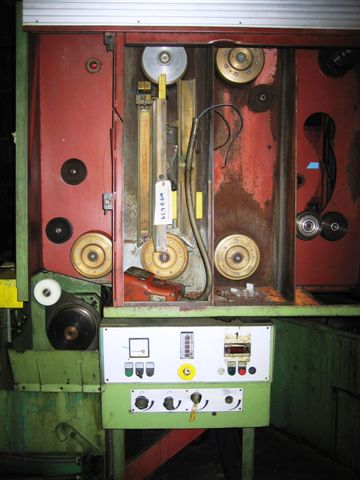

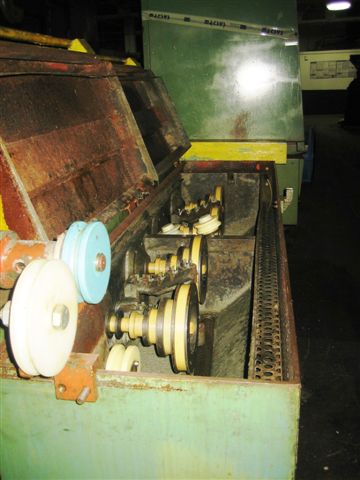

Drawing machine (ria146/a145):
Model: MS200
Number of dies: 21
Number of draw-block shafts: 4
Drafting elongation: 26 % per die
Drafting area reduction: 20.5 % per die
Finish capstan: Separate
Draw-block / capstan material: Ceramic
Drawing lubricant system: Not included

Annealer (ria146):
Model: RC15
Annealer drive: Through V belts from main machine
Automatic voltage control: For acceleration / deceleration annealing

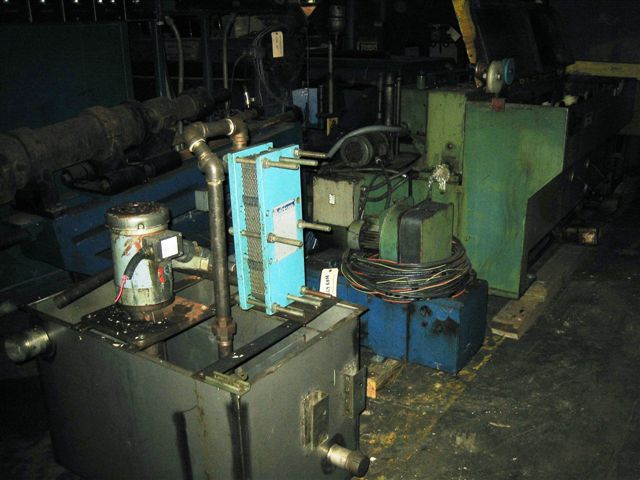

Annealing coolant system: Heat exchanger/circulation pump included (rif105)

Spooler:
Model: TE/25-A
Spooler drive: Independent motor and drive
Spooler arbor: Expanding type
Dancer: Machine mounted

Reel size:
Maximum flange diameter: 10” (250 mm)
Bore diameter: 3” (76 mm)

Electrics:
Main motor / drive: Included, 40 HP DC
Annealer controls: Transformer, voltage control
Spooler motor / drive: Included
Operating Voltage: 460 V / 3 Ph / 60 Hz

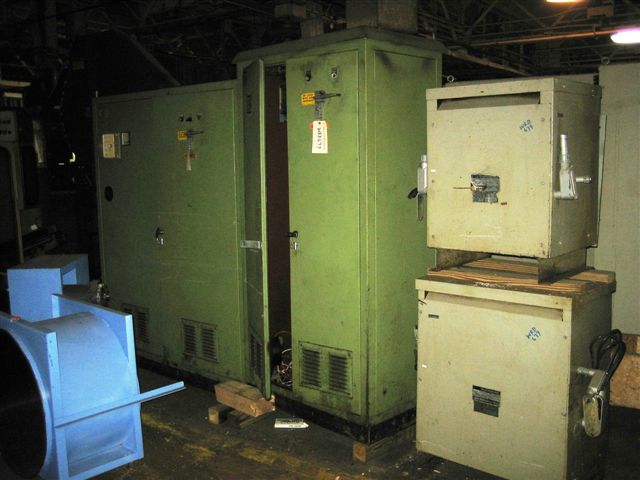

Panels-RIA135

MOT910/MOT910.1 75KVA HiTran Transformers RIF117
