3 1/2" Davis Standard 24:1 L/D, Thermatic III Jacket/Weld Line
Line Direction: Left to Right
PAY2582, PAY2582.1

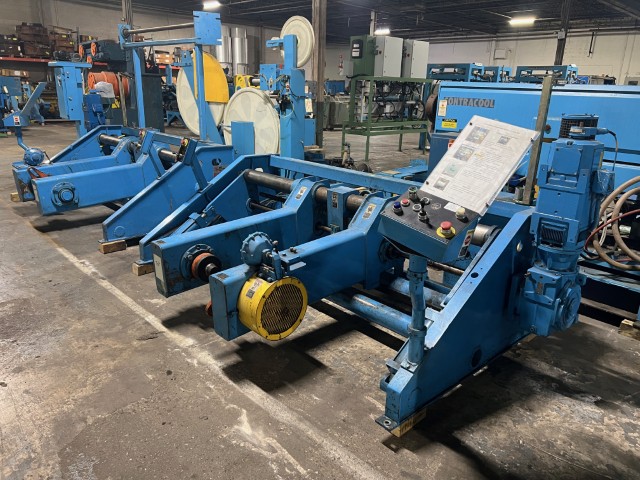

(2) MGS 72" Shaftless Payoffs, Driven,
Model POSL-72
Serial Number: 3087
Year of Manufacture 2002
Hydraulic lift both arms
Hydraulic in / out both arms
Lift Capacity: 14,000 lbs.
7.5 HP DC Motor Driven
DAN682
Overhead Accumulator, 36” Plastic Sheaves
CAT712
20" Hall Metering Belt Caterpuller (Mounted on a raised frame)
TPR480
Colt Dual Tape Payoff, Shear
MSC3664
Tape Former
WEL524, WEL524.1 WEL524.2
Miller Tape Welder/
Miller Welder chiller,
Model Coolmate3
Serial Number NA430630L
Weld hole detector/Weld station
PLA1183
Koolant Koolers Chiller
Model HVC2000-PPMB-50HZ
Serial Number 23087
WEL525
Heintz Cold Welder
Model KBM5
Serial Number H2534
Wire range 18 AWG .040" (1.01 mm) to 8 AWG .128" (3.25 mm),
Dimensions - 9" x 11-1/2" x 13" (228.60 mm x 292.10 mm x 330.20 mm),
Weight: 65 lbs (29.51 kg)
WEL527
Jig
MSC3688
Cleaning Pads/Tank

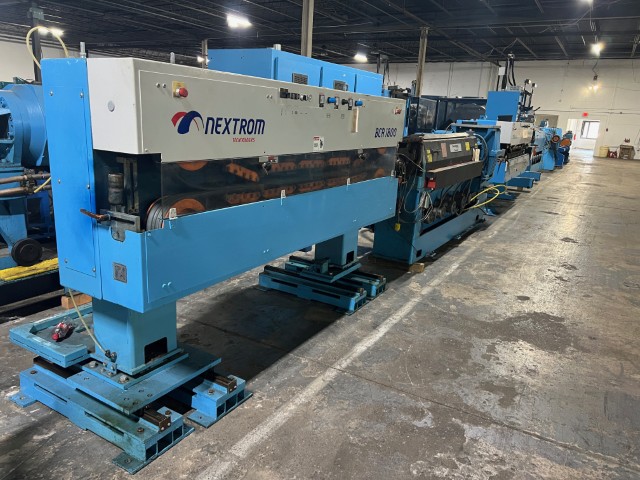

CAT713
1.80 m Nextrom Belt Caterpuller,
BCA-1800
belt groove, extra belts
Articulating belts
Pneumatic belt tension
Right Angle gearbox
DC Motor and Drive
CAT713.1
Nextrom Panel
MODEL BCA-1800-128
Work Order Y0T04001-02
PLA1185
Process Control gravimetric blender
Touch Screen Operator
MSC3684 Guide
TST Eddy Chek 5 Monitor
DAN683
6 ft Vertical dancer, 1 sheave
MSC3678
Micro Air -Air Cleaner
Model OM3510
Tape Cleaner
MSC3685, MSC3685.1
GEO Air Wipe
Model PPW
4 positions
MSC3686
Accessory Table
EXP1543
3 1/2" Davis Standard 24:1 L/D, Thermatic III
Model 35IN35,
Serial Number S-5701
Year of Manufacture 1996
Shop Order 52793
Electrically heated, 5 zones blower cooled
DC Motor and Drive
Hopper Loaders
Extra screws on stands
MSC3682
IMCS Pallet Upender
MSC3683
IMCS Pallet Upender
MSC3660
50-100 ft Stainless Steel Trough
MSC
Air wiper
TST1234
Clinton Spark Tester
TST1235
Keyence Diameter Gauge
MSC
Belt Measuring Machine,
MSC
Proton Laser counter

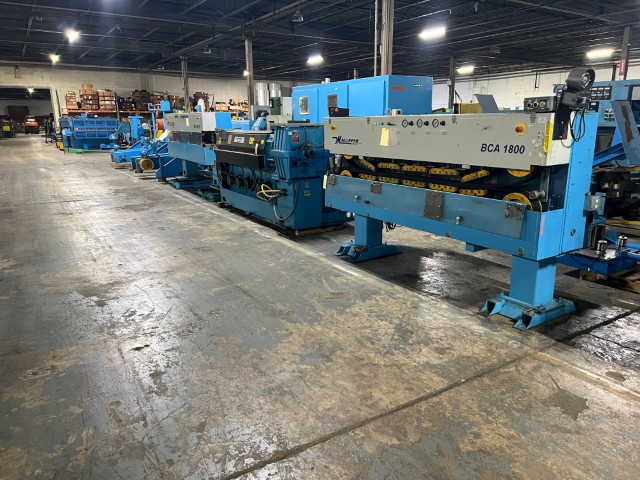

CAT714
1800mm Maillefer Belt Caterpuller,
Model BCA1800
Year of Manufacture 2005
Articulating belts
Pneumatic belt tension
Right Angle gearbox
AC Motor and Drive
CAT714.1
Maillefer Panel
Model BCA1800
Work Order Y5T01049-01
MSC
Sweed Chopper (portable stand), Model 515AE
DAN
6' Vertical Dancer, 1 sheave
TKU1793, TKU1793.1
(2) 2m Skaltek Portal Traversing Take ups
Model U20T,
Year of Manufacture 2002
Floor rail traversing
Reel lifting mechanism
Motorized in / out pintle action
700 mm to 2000 mm reel flange diameter range
700 mm to 1180 mm reel overall width range
6,000 Kg maximum lifting capacity
DAN684
Hall Take Up dancer
Line 803
