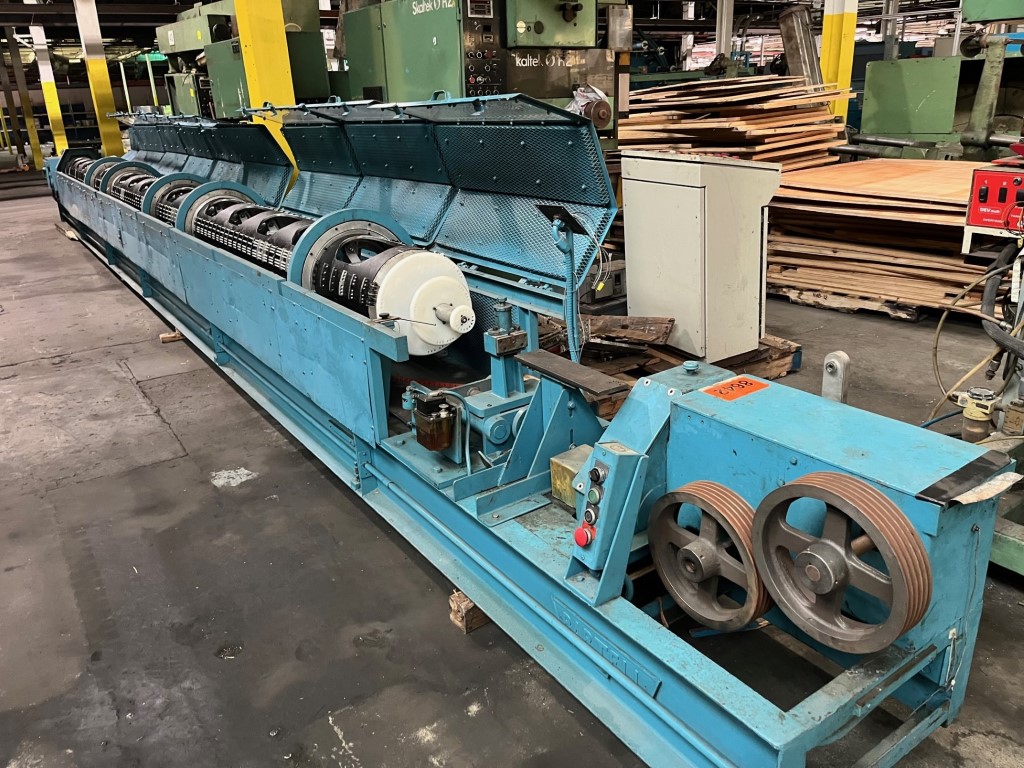

10" Bartell Tubular Strander, 18 Wire, Model 18B64
|
Product Code:TBR208
Manufacturer:Bartell Machinery
Location: Pawtucket, Rhode Island
|
|
|
10" Bartell Tubular Strander, 18 Wire
Model 18B64
Number of positions: 18
Outside string up

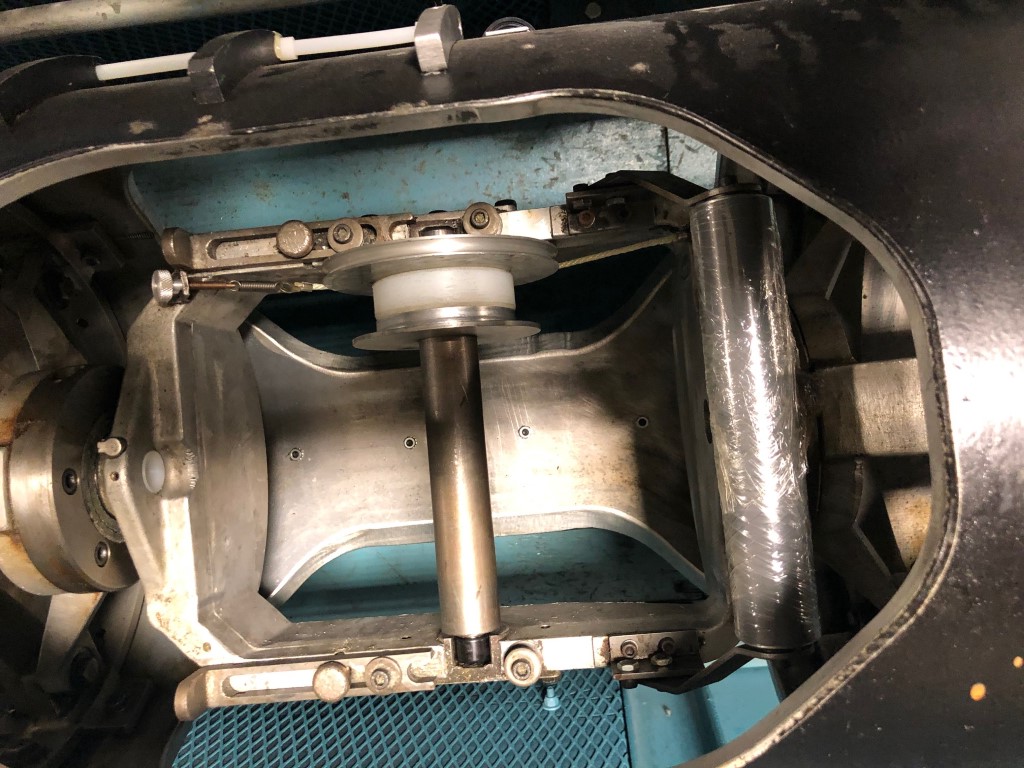

Encircling bearing type
12" Dual Capstan, 5 x 5 grooves
Square sound guards
Rated at 1310 RPM

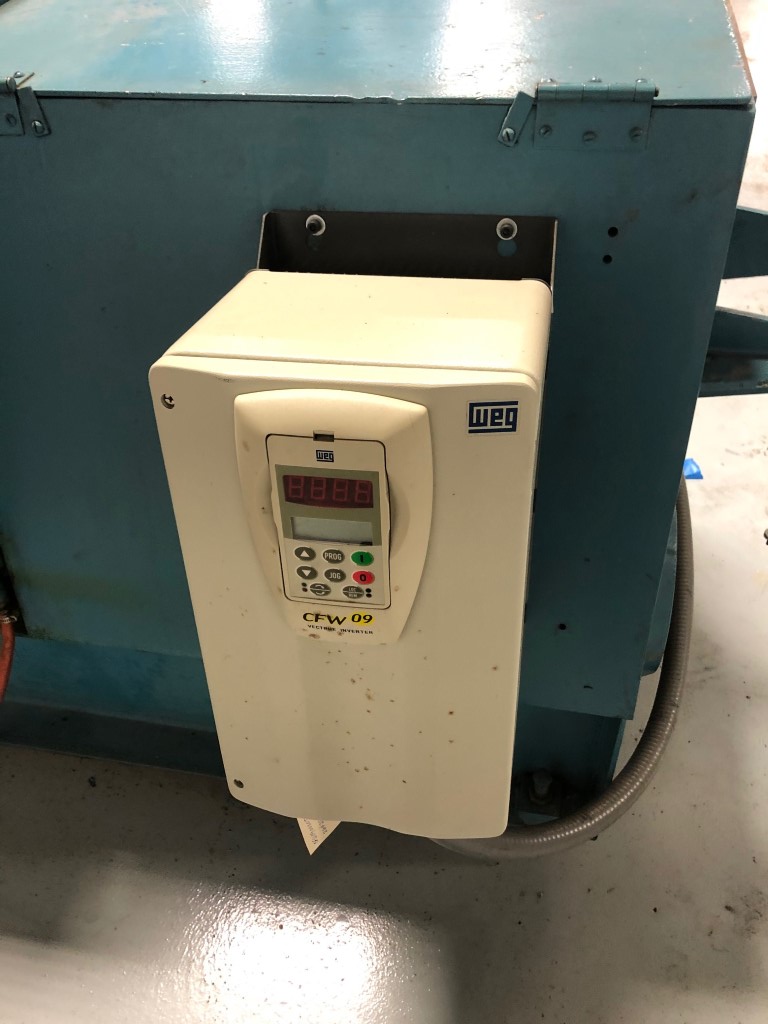

AC Motor, WEG Programmable Inverter Drive
Single wire size range: 0.008" to 0.032" (0.20 to 0.81mm)
Maximum finish cable size: 0.156" (3.96mm)
Reel flange diameter: 10" (250mm)
Reel overall width: 6 7/8" (175mm)
(1) AWC Payoff
Model D-20AIIS
Serial Number D20AIIS0915001
Year of Manufacture 2000
220V, 1 Phase, 10 Amp, 60 Hz
For wires sizes .010-.090" on spools up to 1,000 lbs
(1) Bartell 30" shaft Type Take-up
|
|
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned.
Items listed on the website are for infomational purposes only.
Please base your purchasing decision on
specific information you receive from your sales representative.
|
|
