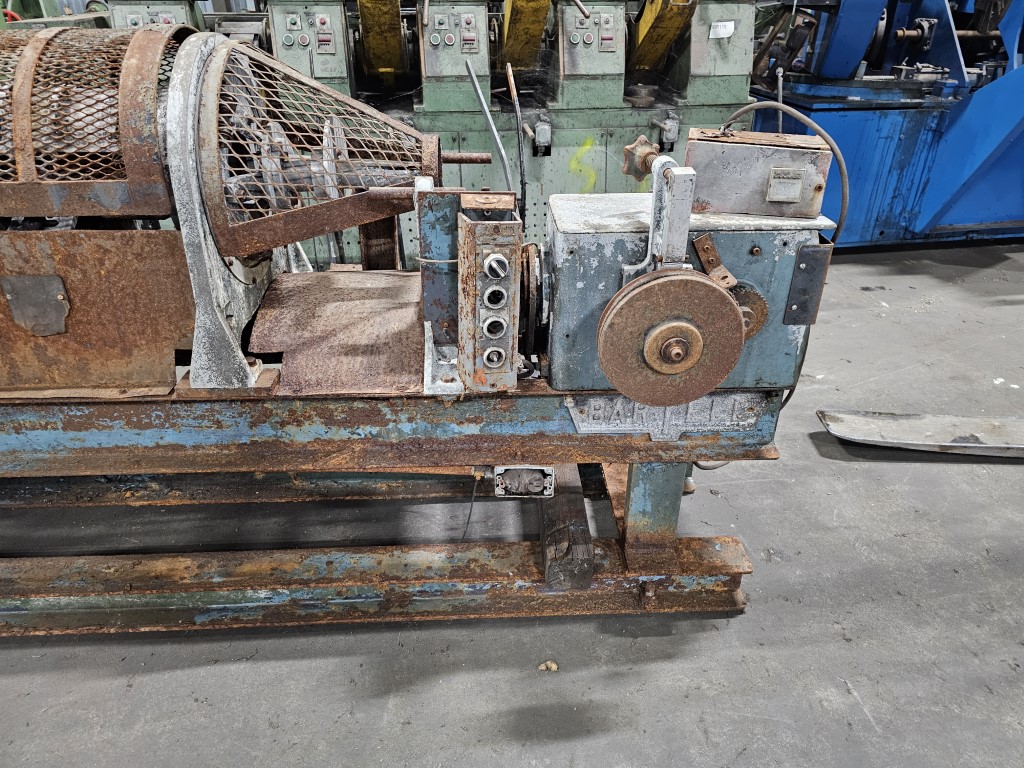

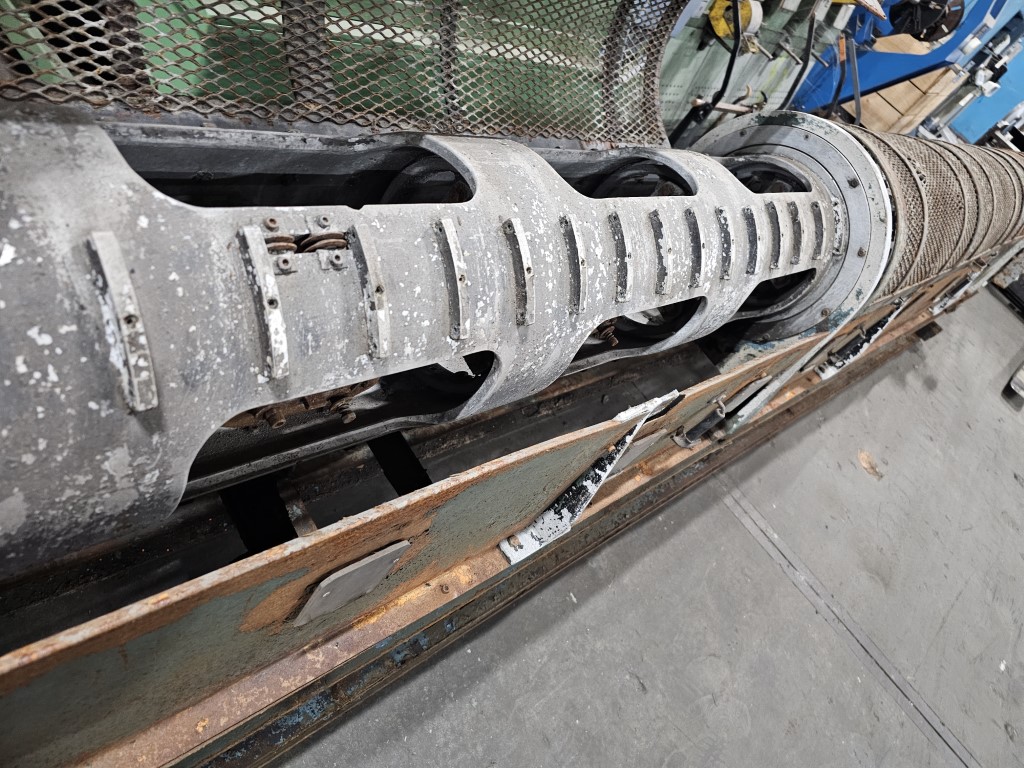

6 1/2" Bartell Tubular Strander, 12W

Model 12B62

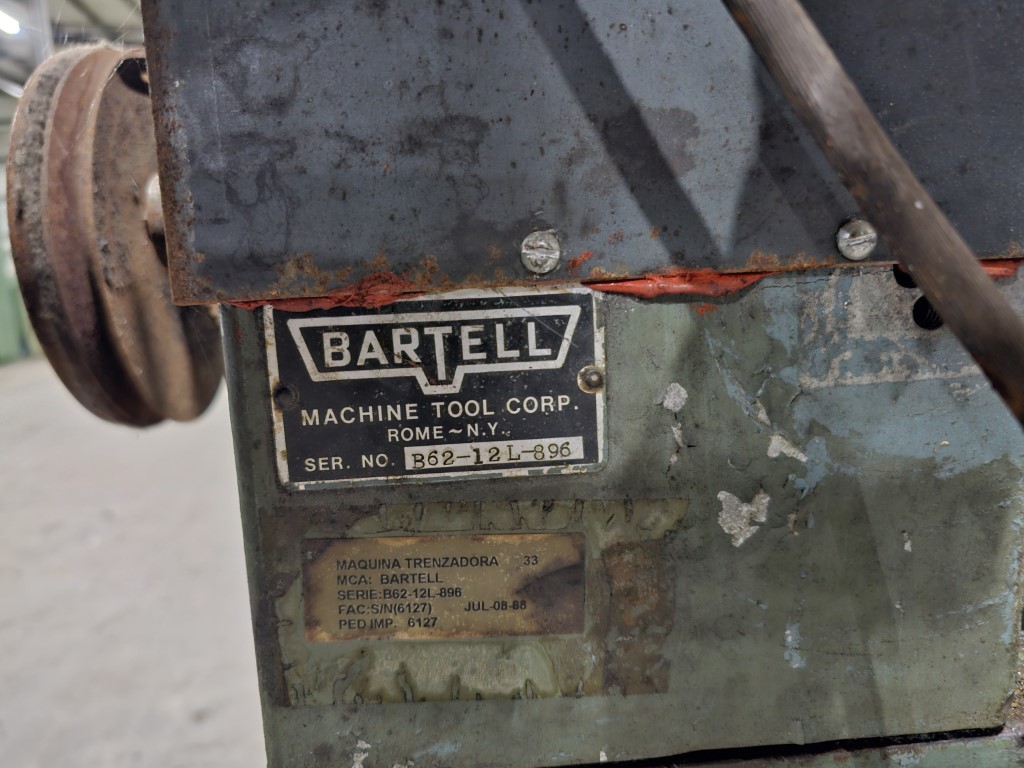

Serial Number: B62-12L-896
Outside string up
Maximum rotational speed: 1670 RPM
Cradles: Shaft type
Tension mechanism: Rope brake
Capstan: 12" Single Wheel and 6" idler
Guards: Round Wire Mesh
Single wire size range: 0.004" to 0.011" (0.10 to 0.28mm)
Maximum finish cable size: 0.062" (1.57mm)
Reel Flange Diameter: 6½” (165mm)
Overall Reel Width: 4" (100mm)

30" Shaft Type Take-up
Asset # 1034904ACS
