Four-Pair 20” (500 mm) Ceeco Group Twinning Line
Type: 531
Serial number: 2498-345-124
Year of manufacture: 1996
Product size range: AWG #26 to # 22 (0.40 to 0.64 mm)
Payoff maximum rotational speed: 1500 RPM
Payoff maximum production capacity: 3000 TPM
Payoff reel flange diameter: 20” (500 mm)
Takeup maximum rotational speed: 300 RPM
Takeup reel flange diameter: 39⅜” (1000 mm)

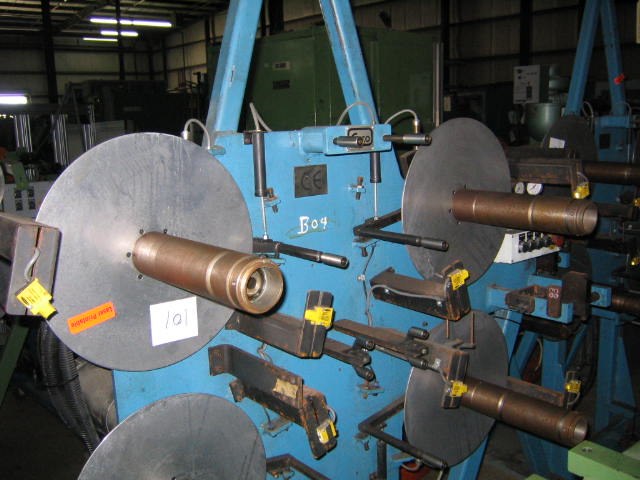

Payoff
Four-position group twinner, vertical configuration bows, fleet-o-matic dancers, eight
cantilever shafts, full machine enclosure
CAP729

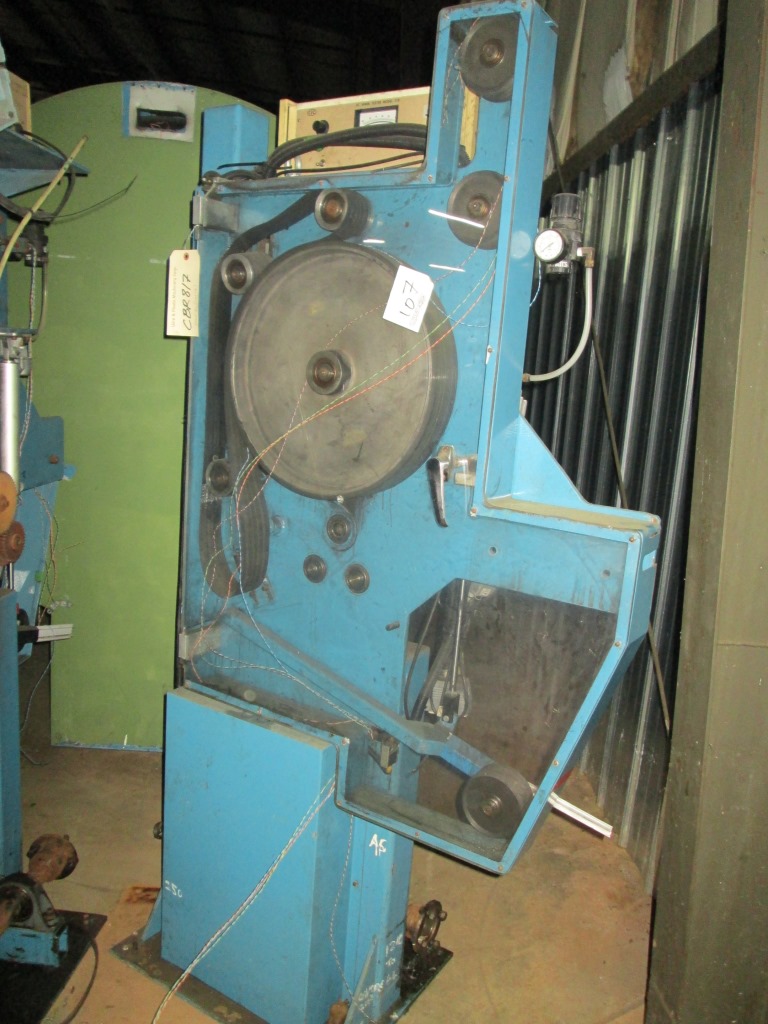

Capstan: 18” (450 mm) diameter belt wrap capstan, belt tensioning system, lexan door
Spark tester: Clinton, high frequency type
Tape application
Four-position unit plus two-position unit, longitudinal type, adjustable tape tension control
Take-up SOLD
36" Ceeco Single twist cabler, traversing shaft type reel carriage, balanced flyer mechanism,
adjustable traverse, full machine enclosure

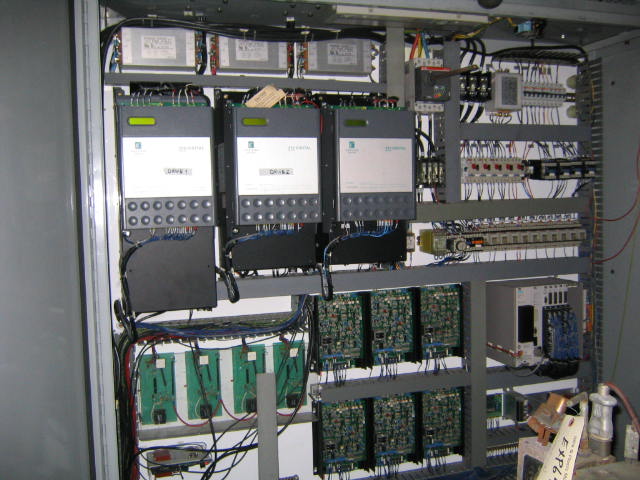

Electrics: The supply includes all necessary motors, drives and controls
