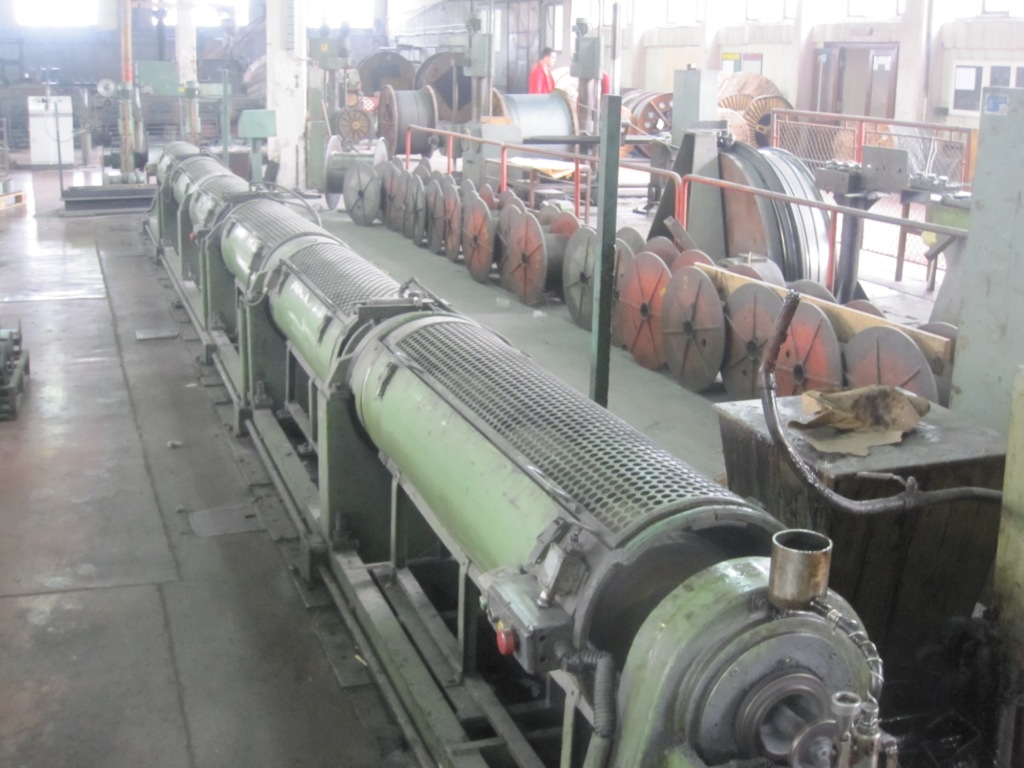

200mm Cortinovis Tubular Strander, 18 Wire

For Steel wire
Product Range: 1.0mm - 3.8 mm
Max production speed: 58 meters per minute
Year of Manufacture: 1962
Line Direction: Left to Right

Closing die
Outside string up
Trunion style rotor support
Wire Straightener (horizontal/vertical)
(450mm) 18"/ (300mm) 12" dual wheel vertical capstan
Gear box for lay changes.

(900mm) 36" shaftless take up
Dual hydraulic lift
air operated one pintle for in/out
DC motor
Uhing type traverse

(1.2m) 48" column type shaftless payoff
Motorized screw lift
Motorized in/out both columns
Air caliper brake

Welder

Electrics: 380 V / 50 Hz / 3 Phase

Machine Number: (PU-4)
