60" Single Twist Rotating Take-up, w/Taper/Binder

Product Code:CBR994

Manufacturer:Custom Built

Location: Pawtucket, Rhode Island
Click on any image to enlarge
Do you have a similar machine for sale ?
Fill out the contact us form

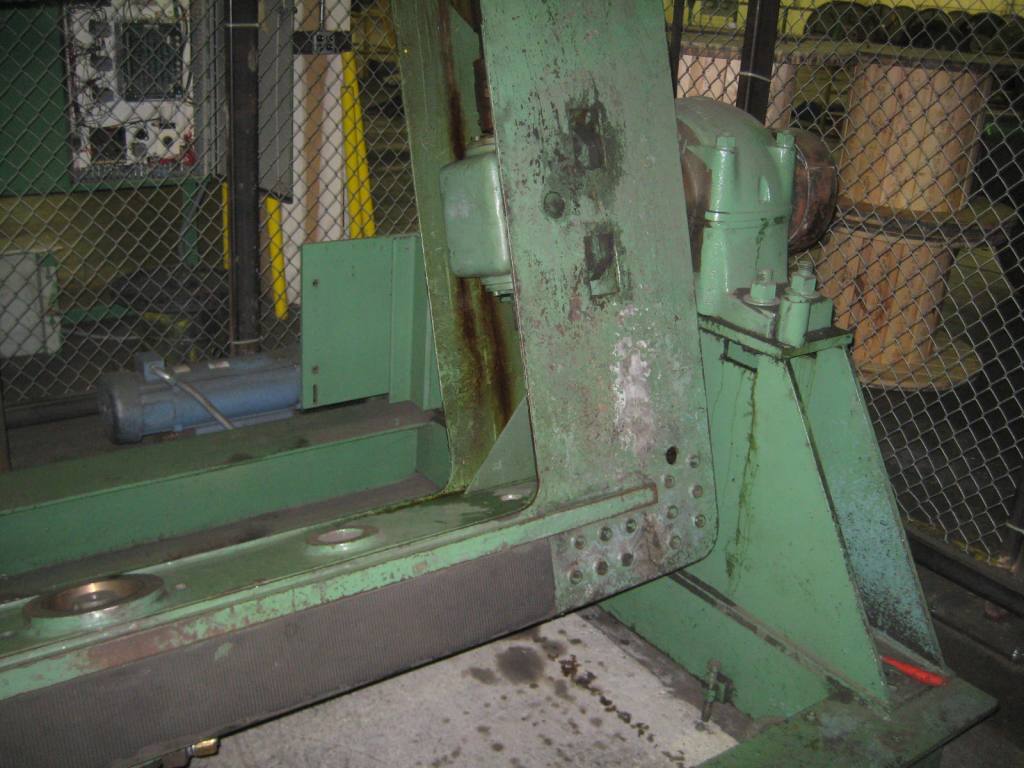

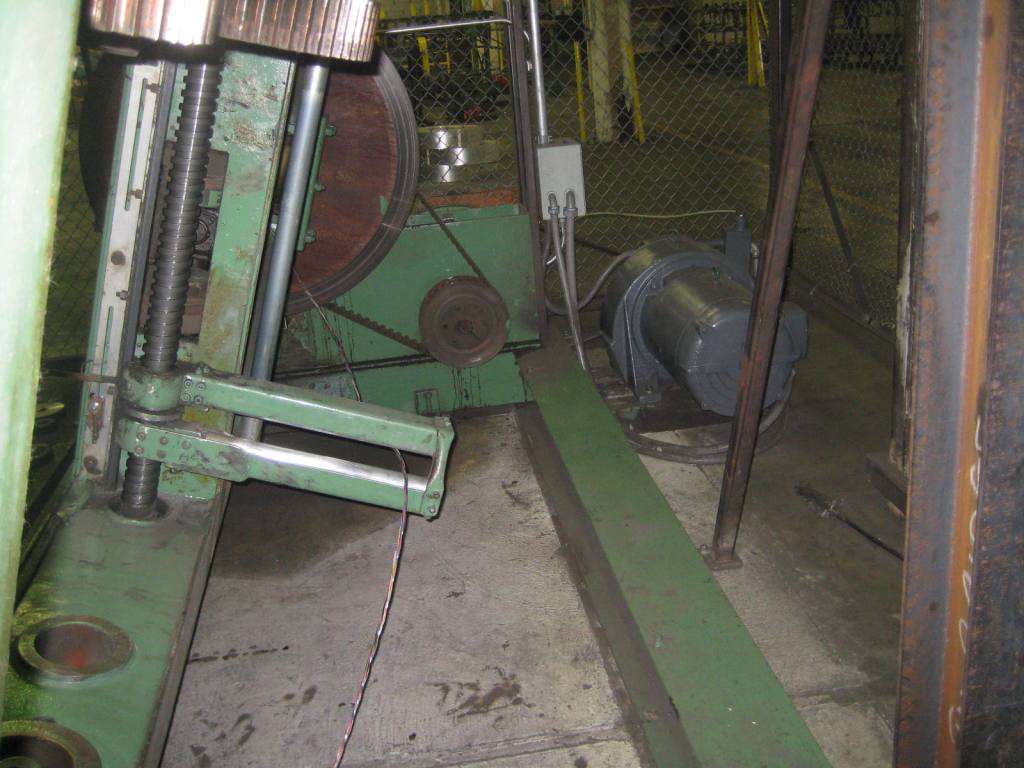

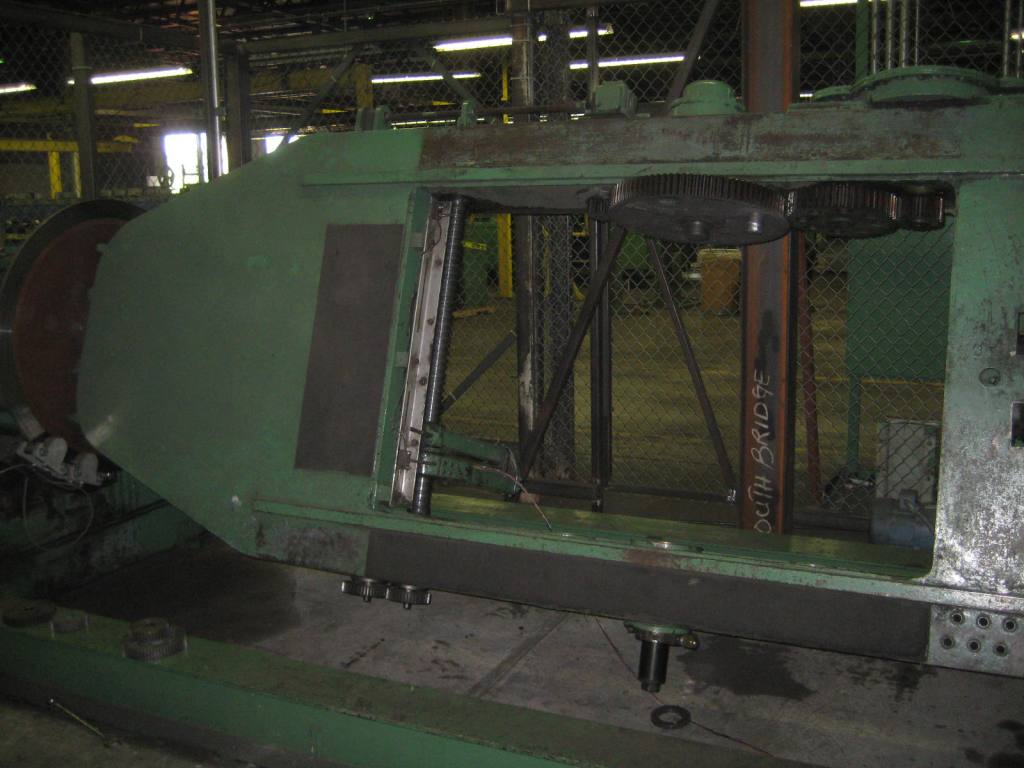

60" Single Twist Rotating Take Up / Drumtwister

Rotating closed cradle style
Shaftless
Reel Dimensions:
60" flange diameter x 36" Overall width
Lay plate
Main Rotor Motor: 20/30 HP ECC
Reel Drive: 5 HP DC
4:1 Driveall transmission

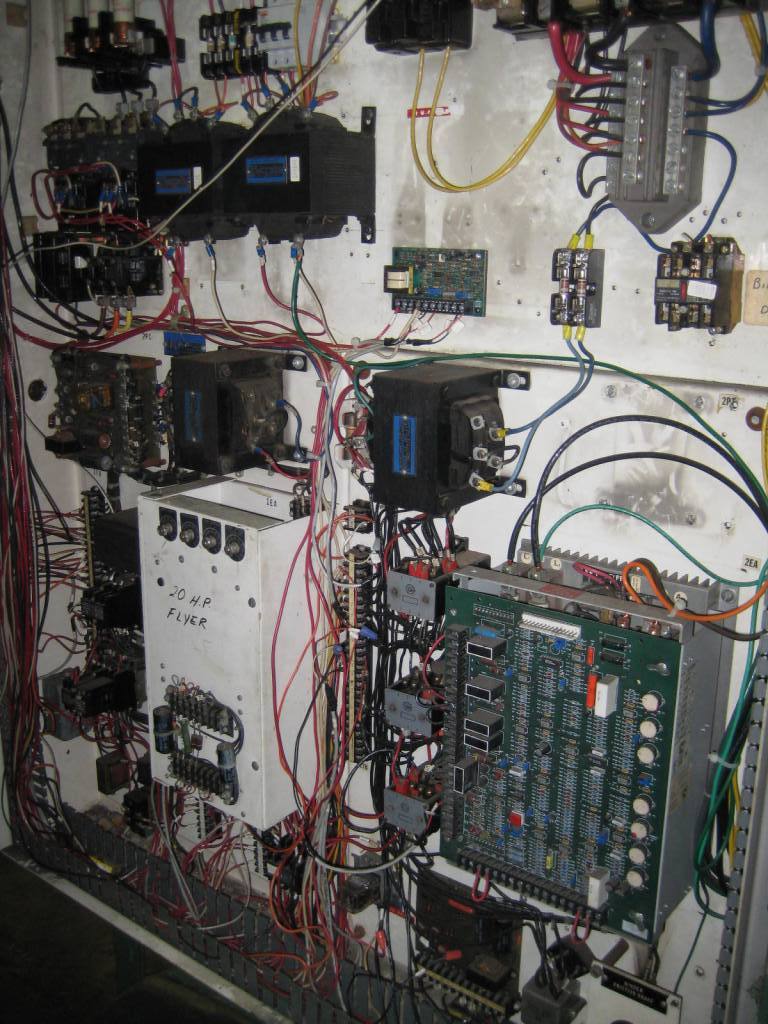

Drive and Control Panel

16" Concentric tape/binder head
COP Dimensions:
6" ID x 18" OD

Rotating Take-up
Floor Dimensions: 17' 3" x 6 1/2' Wide

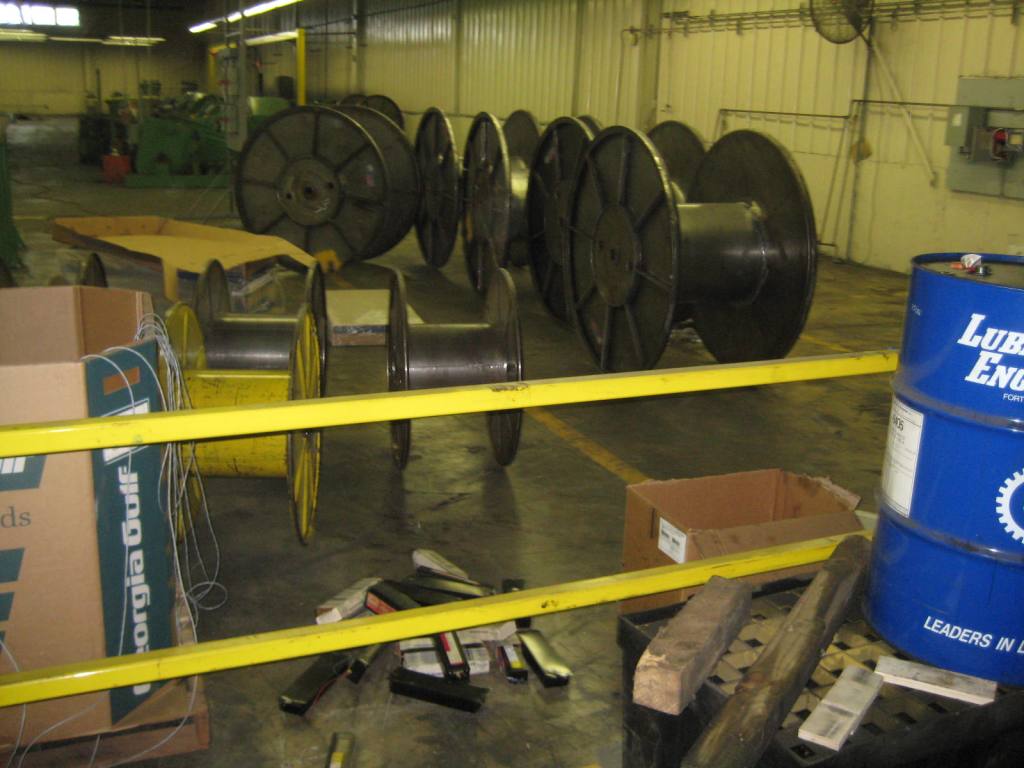

(Qty 8) Steel Reels Available Separately:
REE160 60" Flange diameter x 17.75" Traverse x 36" OAW x 16" Drum x 5" Arbor.
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned. Items listed on the website are for infomational purposes only. Please base your purchasing decision on specific information you receive from your sales representative.

Our complete inventory list is not available on the website. if you don't see the machine you are looking for, please contact us and we will be happy to assist you.
