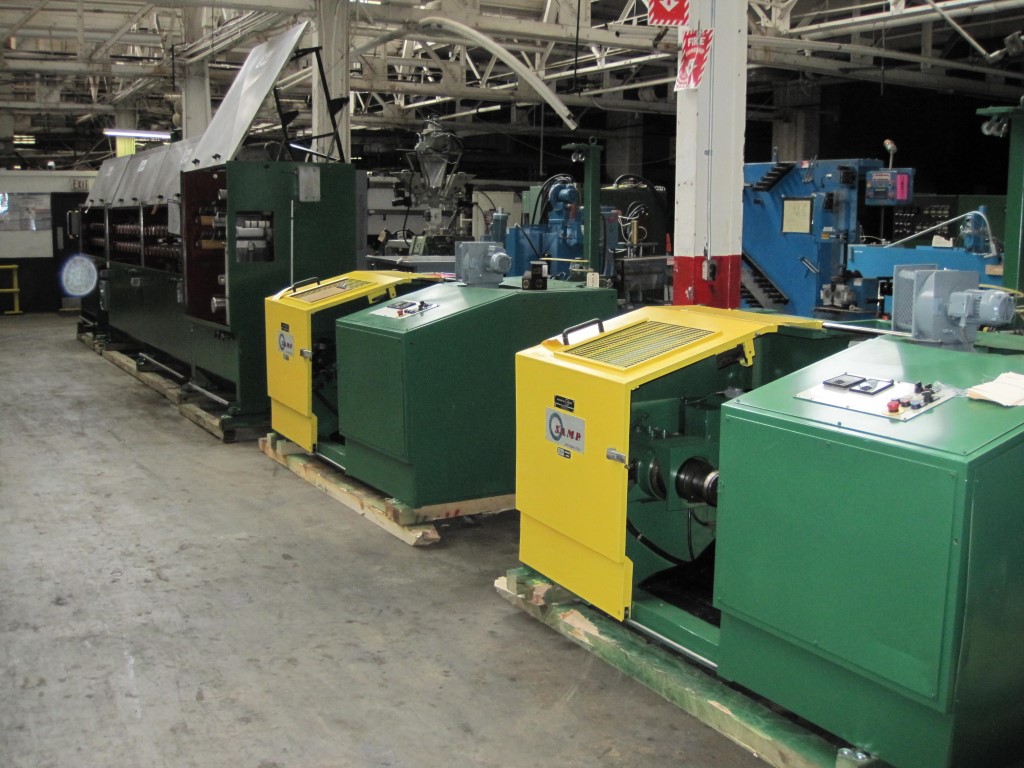

SAMP Multi-wire 14 Wire Drawing Line, MLS/ST.14, MT8 (7+7). 31 Dies, R12 Annealer & (2) 630mm Dynamic Spoolers. Yr of Mfg 1993
|
Product Code:WRD678
Manufacturer:SAMP
Location: Bristol, Connecticut
|
|
|
SAMP Multi-Wire 14 Wire Drawing Line
Consisting of:
Wire drawing Section MT8 (7+7).31 31 dies, 14 wire
Annealing Section: R12.14.14.550
Annealer driven by main drive
Machine Specifications
Inlet 1.628mm/14 AWG
Outlet 0.1016-0.1651 mm/ 38 AWG - 34 AWG
Number of dies: 31
Number of wires: 14
Main Motor 150 HP (93kV), 500V, 205A, ECC300V, 5.48A, RPM 450-3100
Max Speed: 30 meters/second
Recommended Dies I Area Reduction I Wire Elongation
1-Variable-22-28%
2-10-24.14%-26%
11-20-17.24%-19%
21-30-13.51%-15%
31-variable-5-17%
Die Case dimensions:
1st and 2nd module -25.4 mm dia. x 12.7 mm thick
3rd module -- 25.4 mm dia. x 8.4 mm thick
Die material - Bare & tin copper - Compax
Alum & alum alloys - Tungsten carbide & polycrystalline diamond dies for finishing.
Thin and very thin wire - natural diamond dies.
(2) SAMP 630 mm shafless Dynamic Take Ups,
Model TE/65-M
S/N-9307006, S/N 9601504
23 HP DC motors and Drives
Isolation Transformer: -275KVA 460V PRI. 460/266 SEC.
Note: can draw heavier sizes
0.20mm -10 wires only
0.25mm - 8 wires slower speed
Cleaned and Painted
|
|
