2 1/2" NRM and 2 1/2" Hartig Tandem Extruding Line
Direction: Left to right
36" Davis Standard Shaft Type Payoff
Model 18-36
Serial Number: C102
Shop Order: 9644C
1 1/2" dia. shaft, OAW 18" air lift
Dancer controlled band brake
Cleaned. painted, checked out operational
36" Davis Standard Shaft Type Payoff
Model: 18-36
Serial Number: C9409
Shop Order: 27696C
1 1/2" dia. shaft, OAW 18" air lift, dancer controlled band brake.

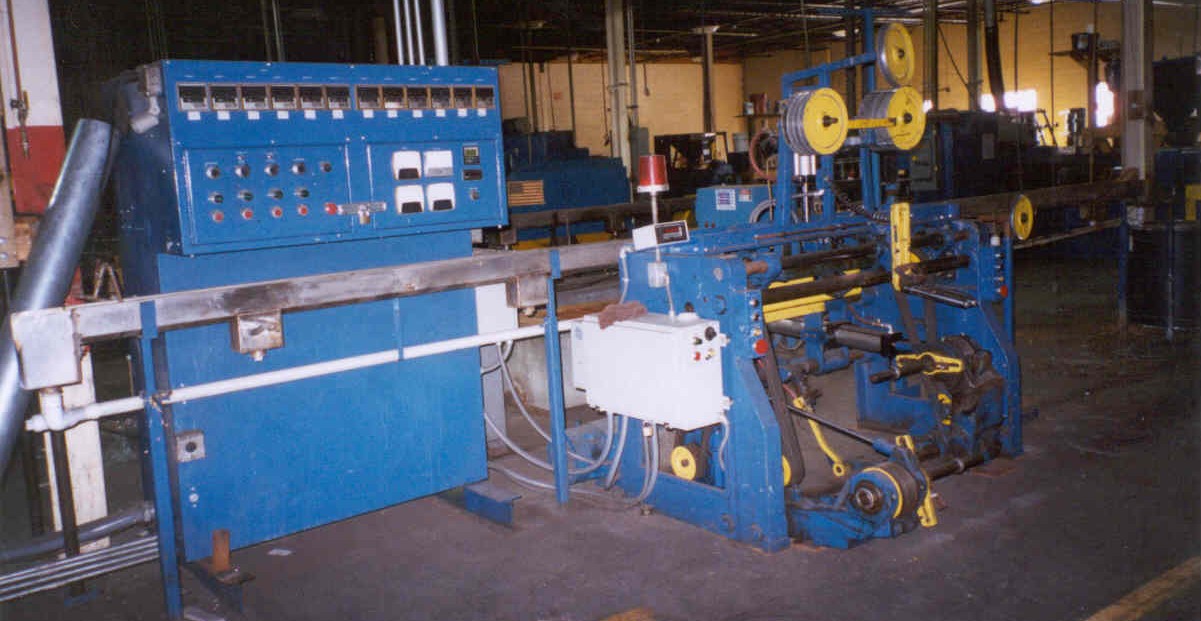

2 1/2" NRM Extruder, 24:1 L/D
Model Spacemaker
Year of Manufacture 1968
Serial Number: 12886
4 Zones Electrically heated, air cooled
16.8 gear ratio
50 HP DC tuckunder motor
Hopper

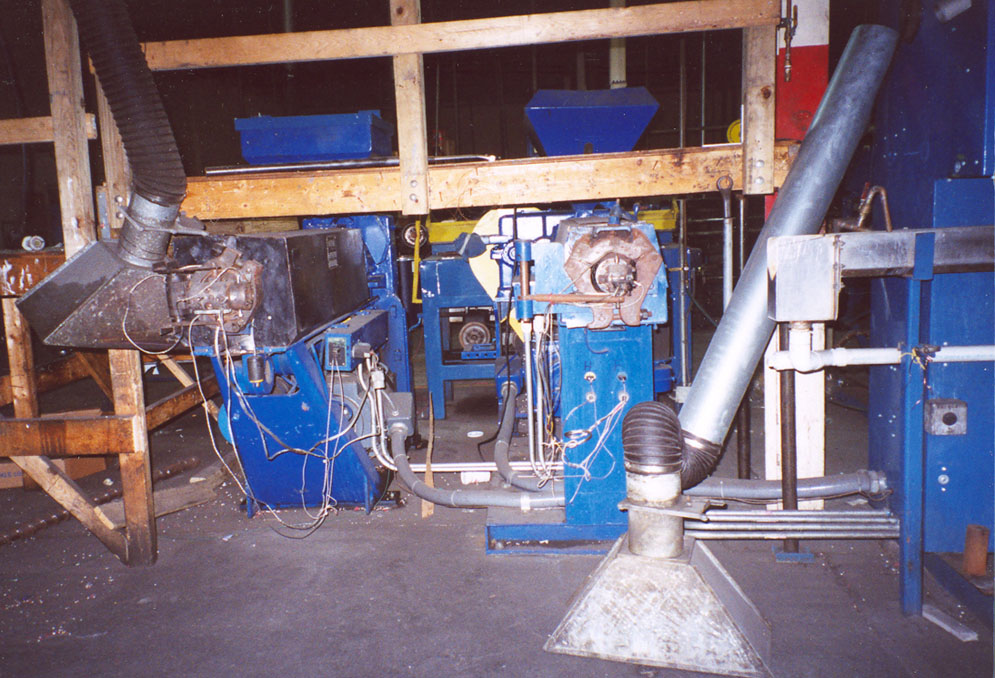

Adjustable Center crosshead.

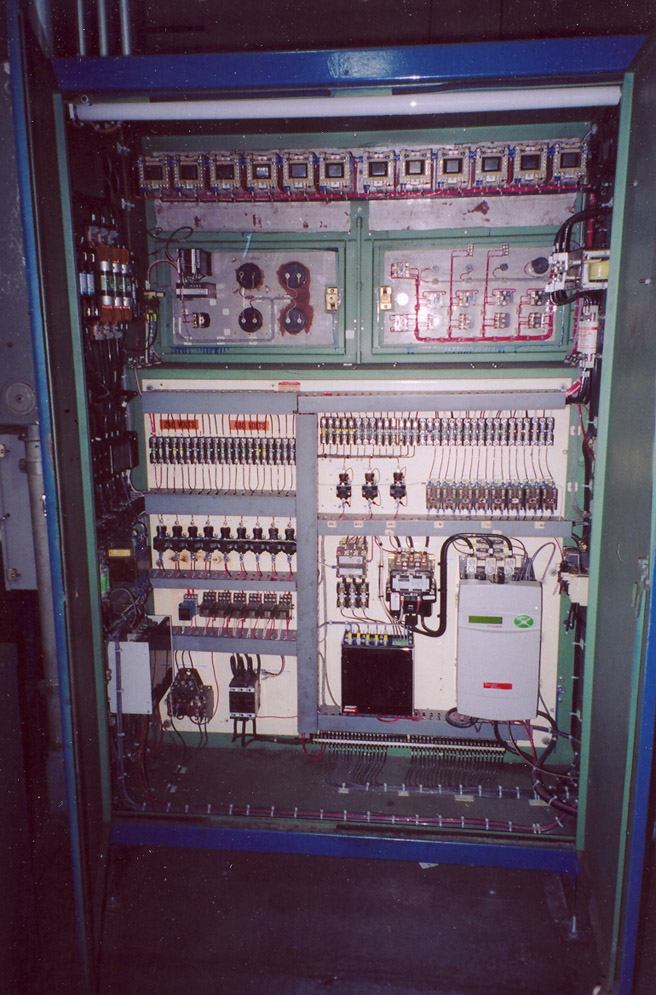

Temperature and drive control panel with Barber Colman 580 controllers
Sprint/Bardac DC drives.
2 1/2" Hartig Nylon Extruder, 24:1 L/D,
electric heat, air cooled, 4 zones,
50 HP DC tuck under motor, fixed center crosshead.
30' 4"x4" stainless steel water trough with drain boxes and stands.
Process Cooling System Chiller,
Model PT-221

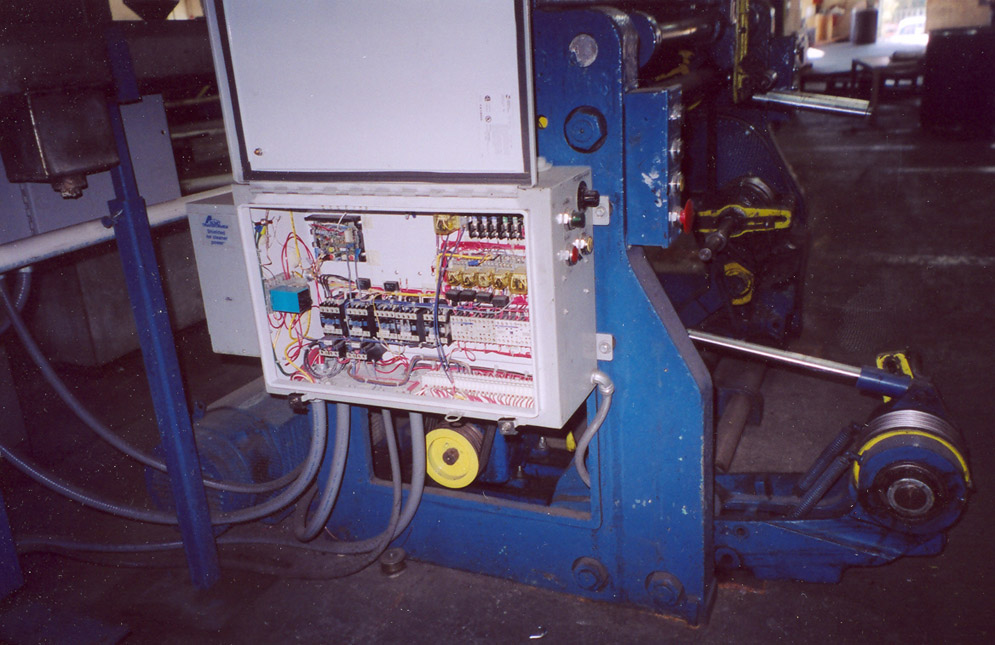

30" Davis Standard Dual Take up,
Model DR-30
DC traverse motor.
Ball screw traverse. ECC clutch brake motor with 4:1 driveall.
Overhead Accumulator, recently rebuilt.
Line # 14
