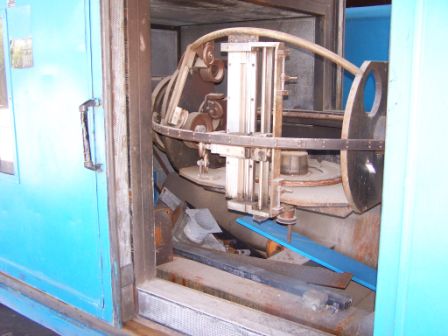

Henrich Model F.A.EL Double Twist Buncher

Features:
Model: HDV0800 F.A.EL
Serial number: MC702

Specifications:
Bows: Dual
Bow material: Carbon fiber
Capstan: Internal, dual type
Enclosure: Integral, sound abatement

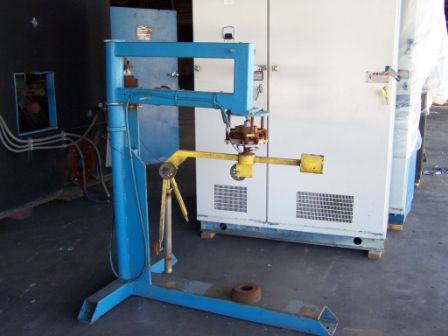

Lay plate / die holder assembly: Adjustable, machine mounted

Maximum product cross-section: 10 mm²
Maximum rotational speed: 2500 RPM
Maximum production capacity: 5000 twists/min
Maximum linear speed: 130 m/min
Change gear type lay range: 6.4 mm to 76.0 mm

Takeup reel:
Maximum flange diameter: 800 mm
Maximum overall width: 600 mm
Maximum weight of full reel: 1150 Kgs

Electrics:

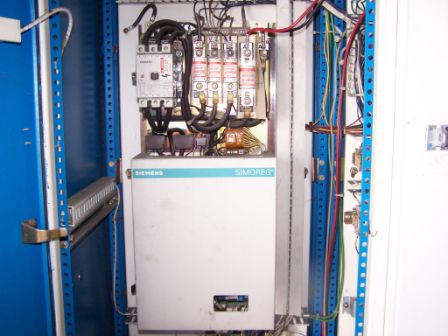

Panel: Simoreg Quad-4
Main motor: 29.4 kW DC
Operating Voltage: 460 V / 3 Phase/ 60 Hz
