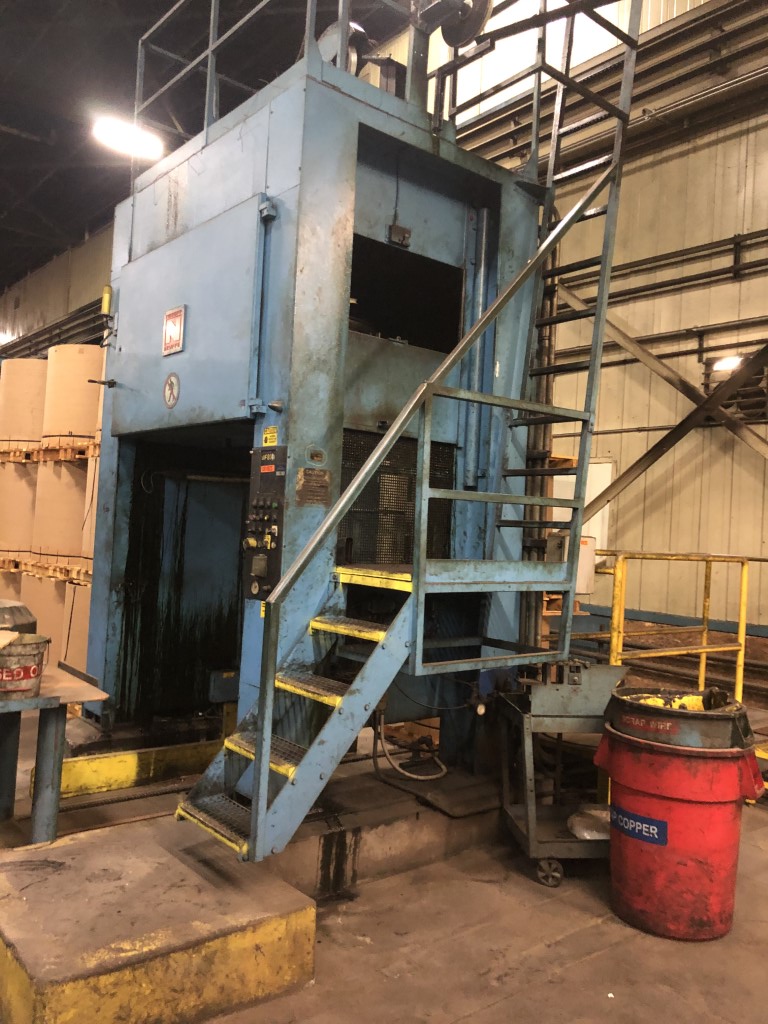

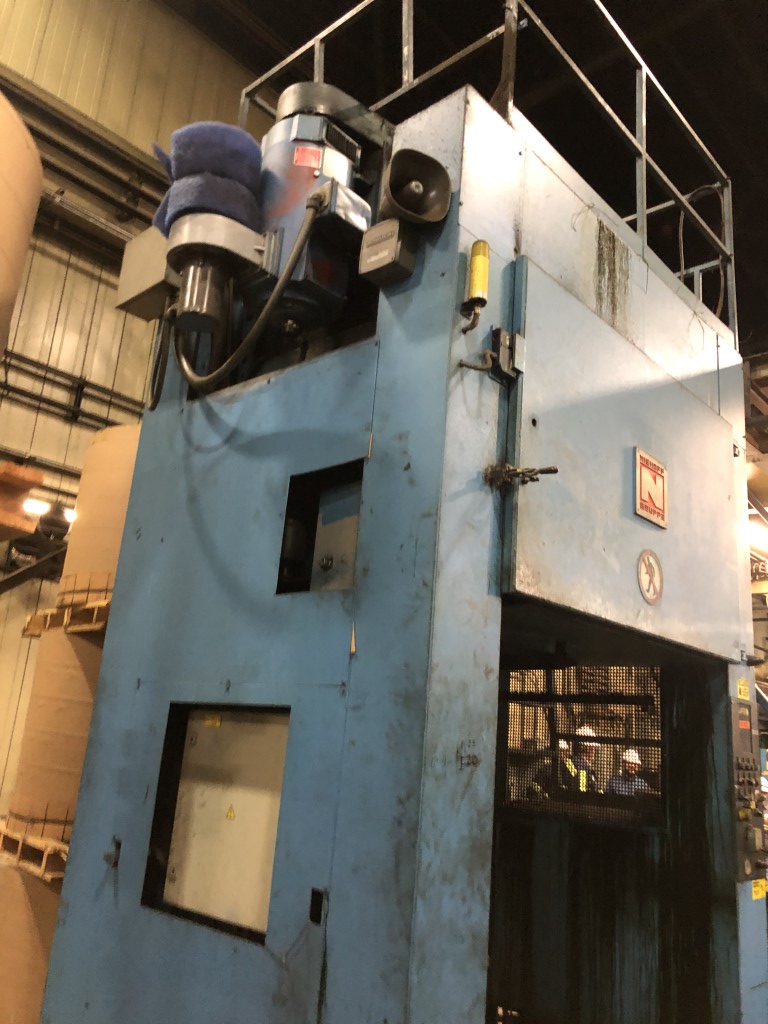

800mm Niehoff Drop Coiler
Model WF801.1.N.E.AN.
Serial Number 10.50.542
Year of Manufacture 1997
Specifications:
Max Production Speed: 35 m/s, 6,890 FPM
Individual wire Cu. Hard or Soft: 1.0 mm - 4.5 mm, 18 - 5 AWG
Coiling head diameter: 830 mm
Barrel dimensions:
Inner diameter: 600 mm
Outer diameter: 1,000 mm
Height: 1,500 mm
Weight: 2,000 kg. With Vibrator: 2,400 kg.
Max Input Rating: 30 kW,

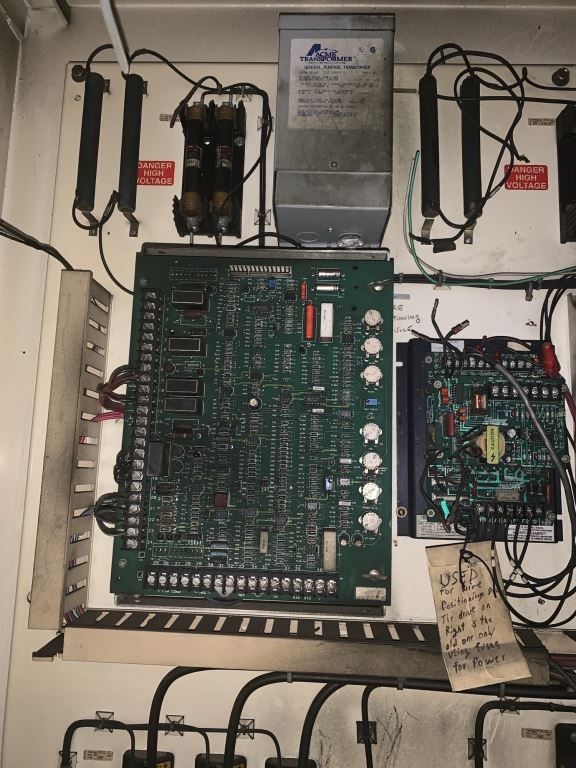

40 HP DC Motor and Drive
Rosette Loop pattern
Machine Weight: 5,000 kg
from WRD1121 Line
