760mm Samp Double Twist Buncher

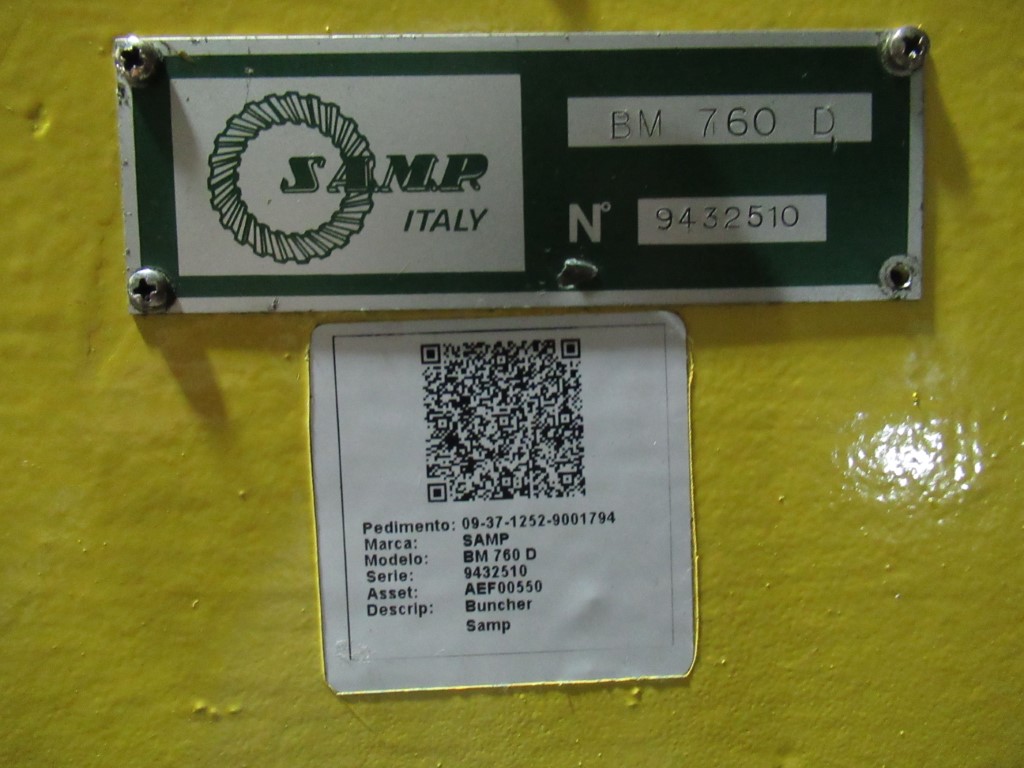

Model BM/760-D,
Serial Number 9432510,
Year of Manufacture 1994

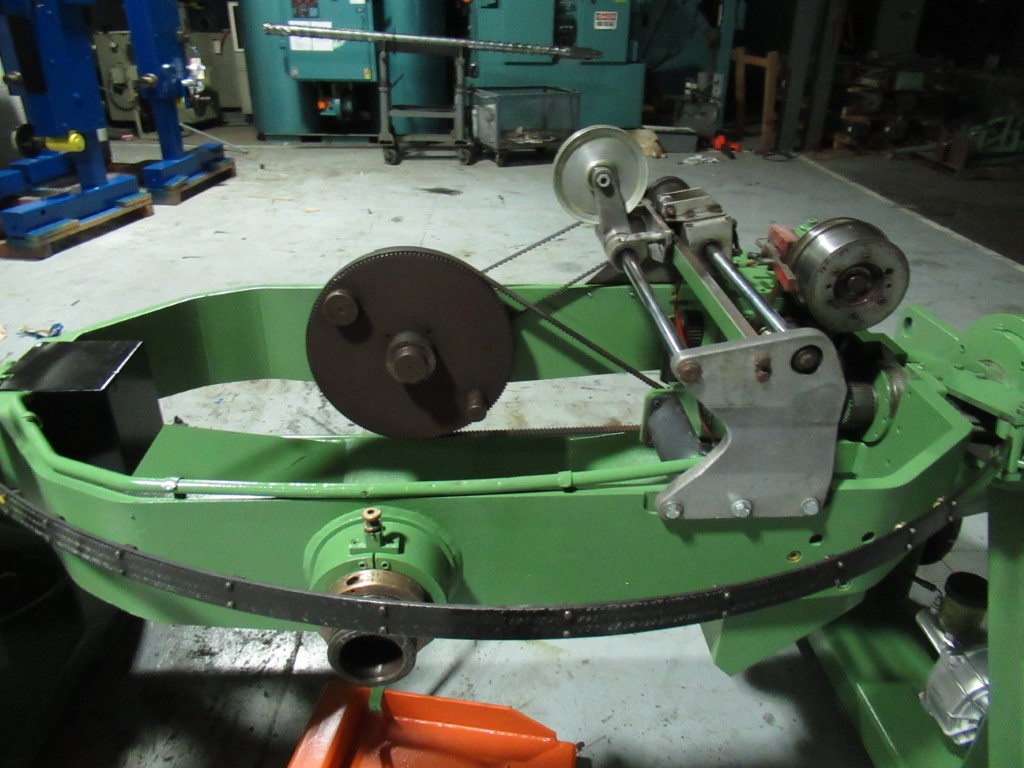

Bows: Dual, Carbon fiber

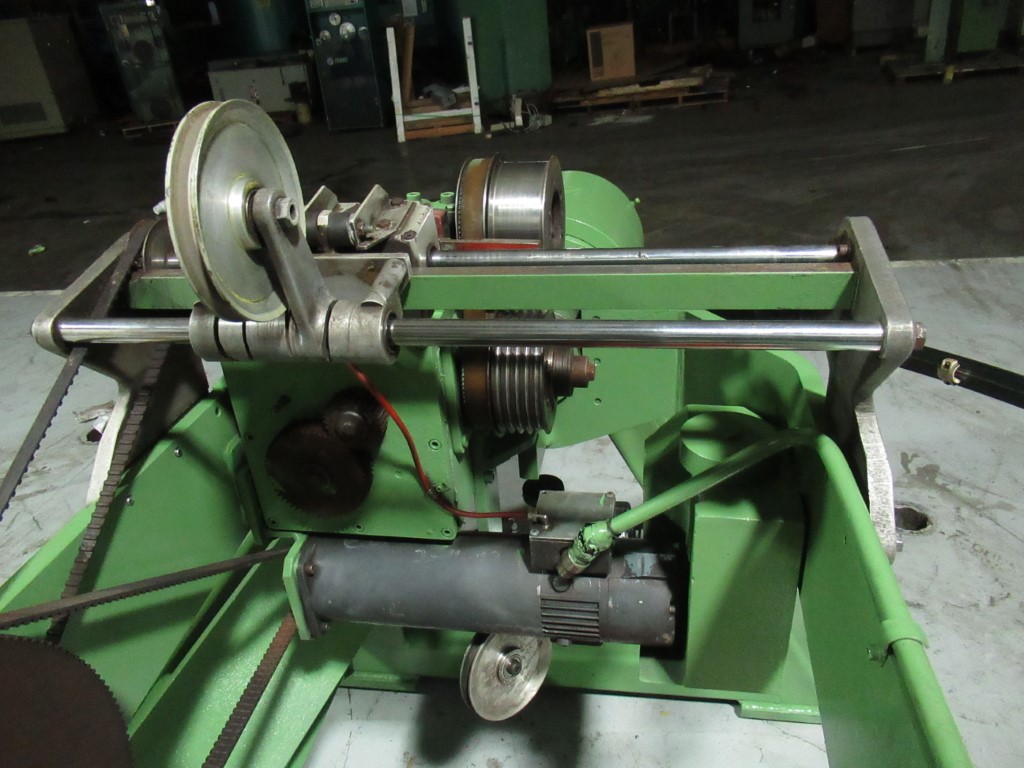

Capstan: Internal, dual type, 130 mm diameter
Product tension: Computerized control
Reel handling: Automatic load / unload

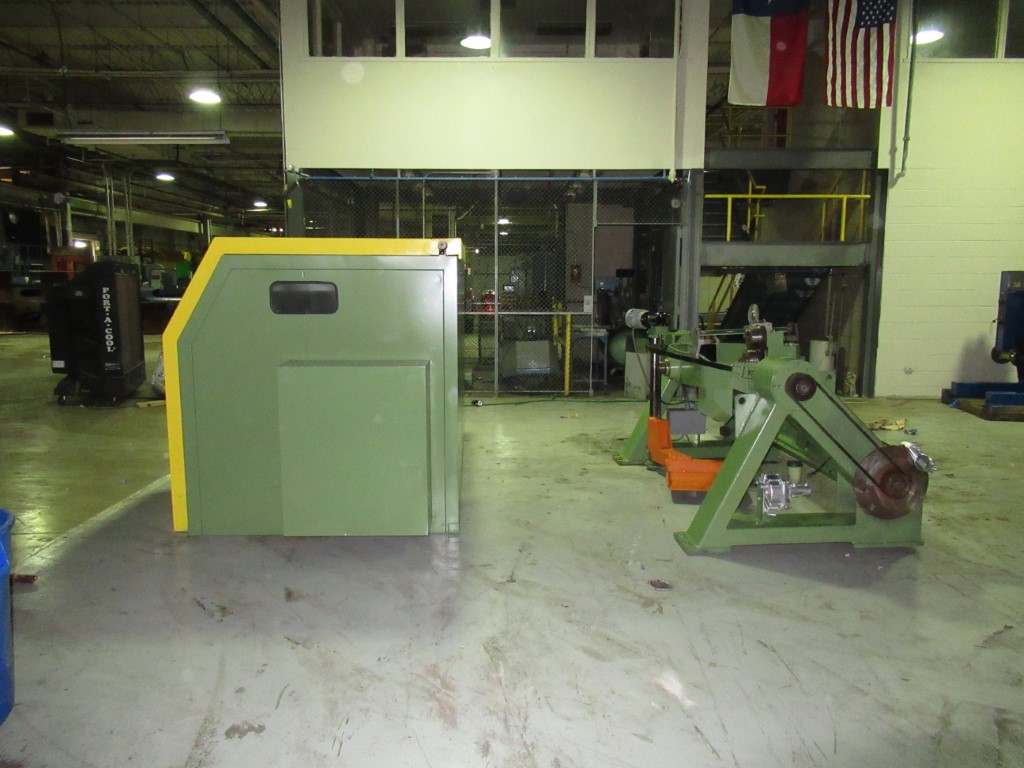

Enclosure: Integral, sound abatement
Lay plate / die holder assembly: Adjustable, machine mounted
Flexible strand cross-section range: 0.127 mm² to 6 mm²
7-wire strand cross-section range: 0.35 mm² to 6 mm²
19-wire strand cross-section range: 0.597 mm² to 6 mm²
Maximum rotational speed: 2800 RPM
Maximum production capacity: 5600 twists/min
Maximum linear speed: 300 m/min
Change gear type lay range: 5.96 mm to 62.98 mm
Reel flange diameter range: 560 to 762 mm
Overall width range: 300 mm to 475 mm
Maximum weight of full reel: 750 Kgs
Electrics:
Samp Drive SC4QML230
Sael Drive 1G2QML125
PLC Mitsubishi F-40 MR

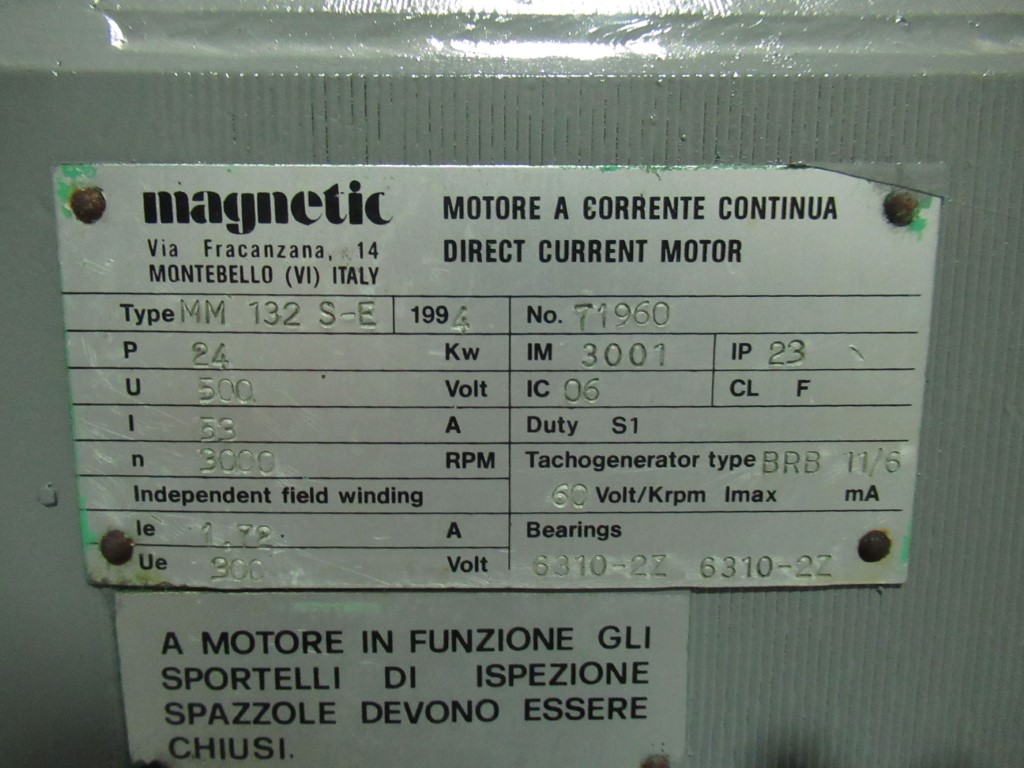

Bow Motor:26 kW DC
Reel Motor: 3 kW DC
Lifting table motor: 1 kW DC
Cleaned and Painted
Item # 106, #18
