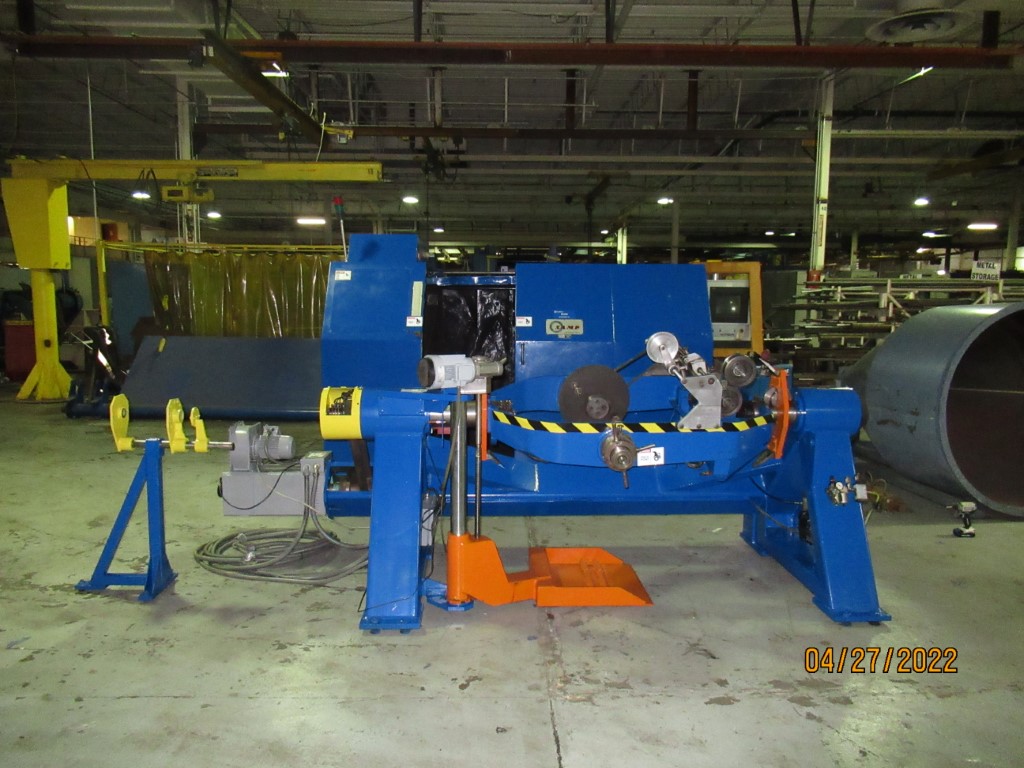

800mm Samp Double Twist Buncher
Model: BM 800-D

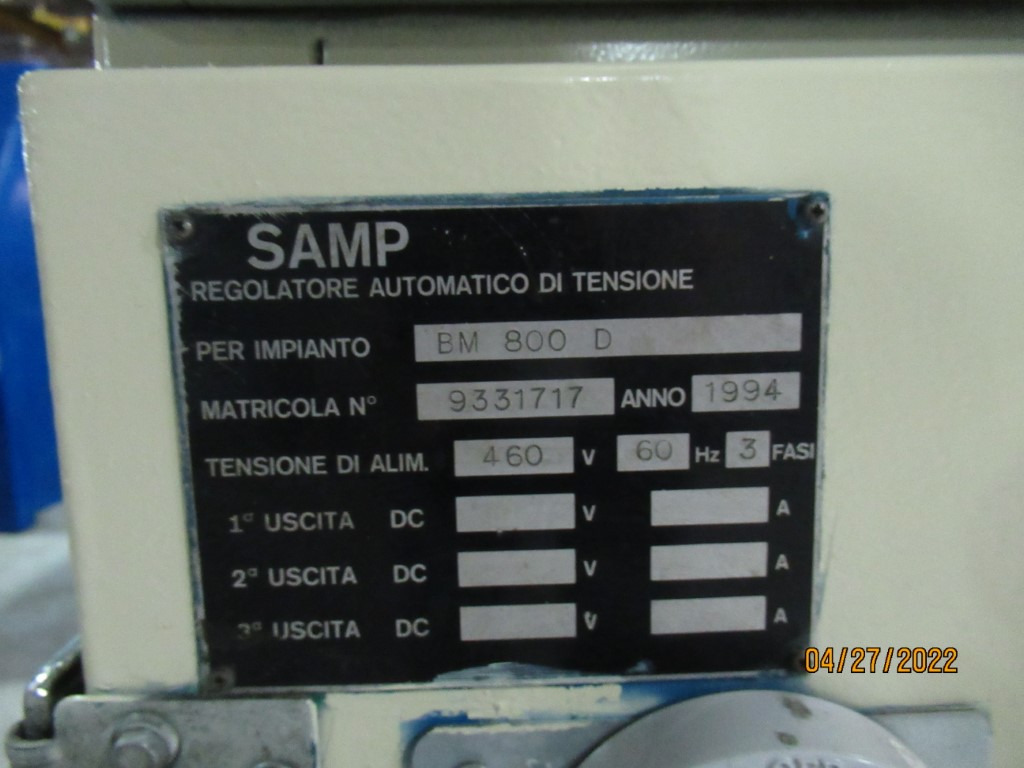

Serial Number 9331701
Year of Manufacture: 1994
Direction: Left to Right

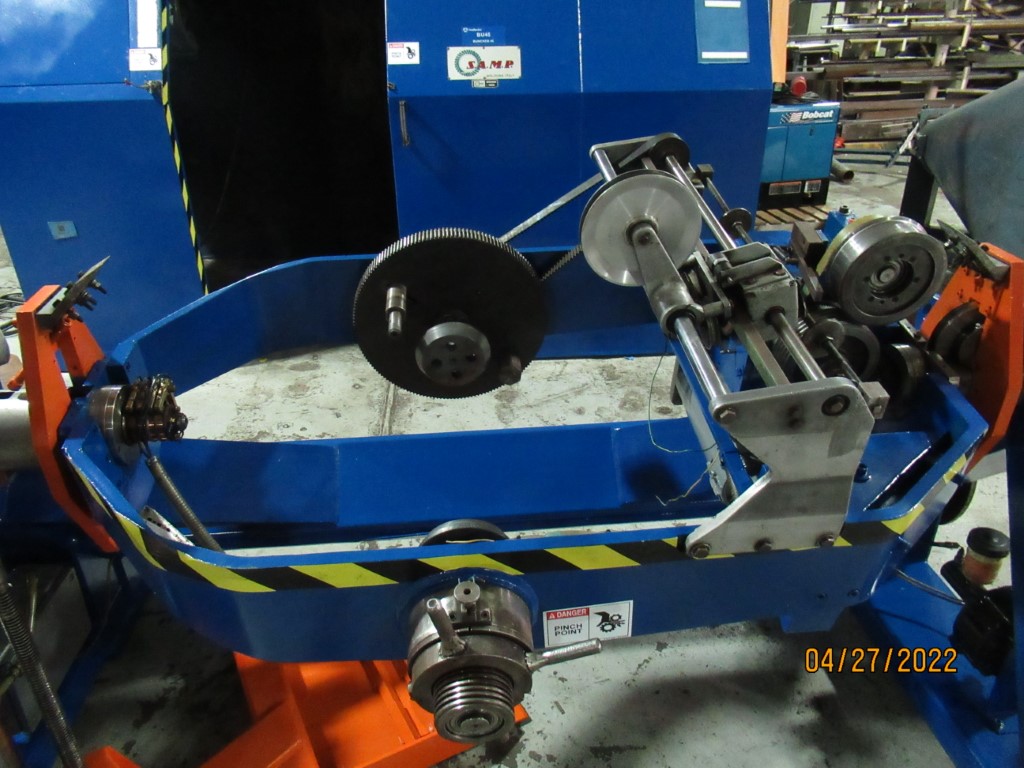

Bows: Dual, carbon fiber
Capstan: Internal, dual type, 160 mm diameter
Product tension: Computerized control
Reel handling: Automatic load / unload
Enclosure: Integral, sound abatement
Lay plate / die holder assembly: Adjustable, machine mounted
Lay change: Electronic lay control
Lay range: 10.71mm to 113.21mm
Flexible strand cross-section range: 0.1 mm² to 6 mm²
7-wire strand cross-section range: 0.1 mm² to 6 mm²
19-wire unilay strand cross-section range: 0.245 mm² to 6 mm²
Maximum product size with alternative bow: 16 mm²
Maximum finished flexible cable diameter: 5.40 mm
Maximum finished 19-wire unilay cable diameter: 3 mm
Maximum rotational speed: 2500 RPM
Maximum production capacity: 5000 twists/min
Maximum linear speed: 300 m/min
Reel flange diameter range: 500 to 800 mm
Maximum reel overall width: 600 mm
Reel bore diameter: 200mm
Maximum weight of full reel: 1150 Kg
Bow motor: AC motor
Reel motor

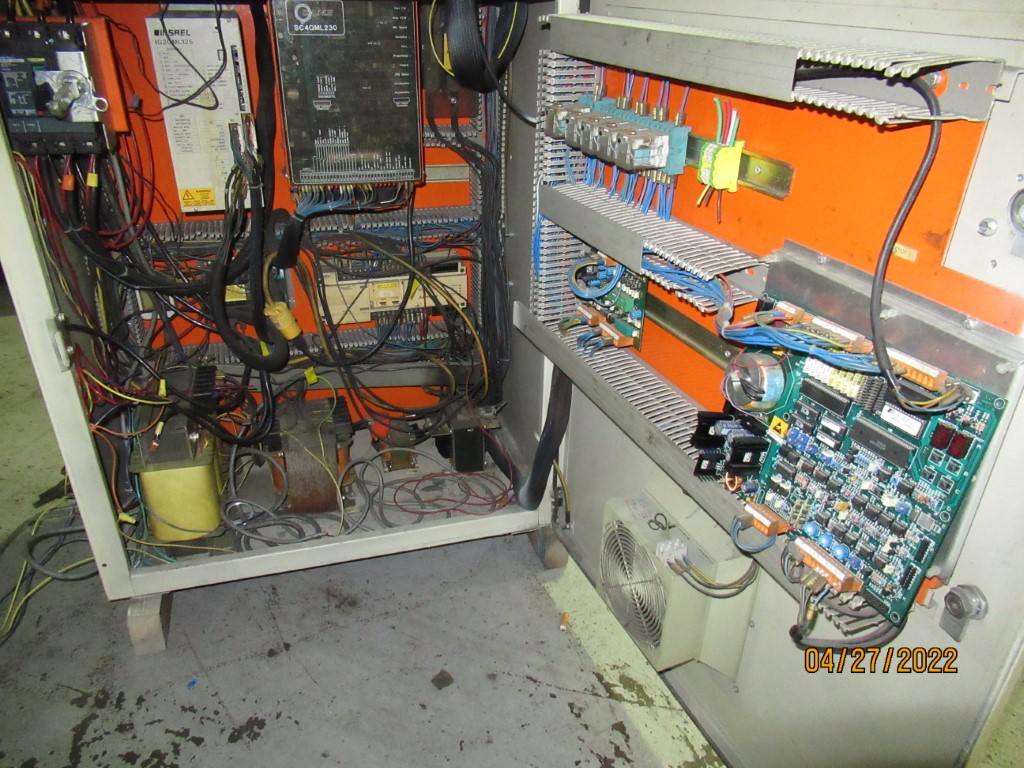

Drives, PLC, Operator controls
AC drive, year 1995
Panel 9331703

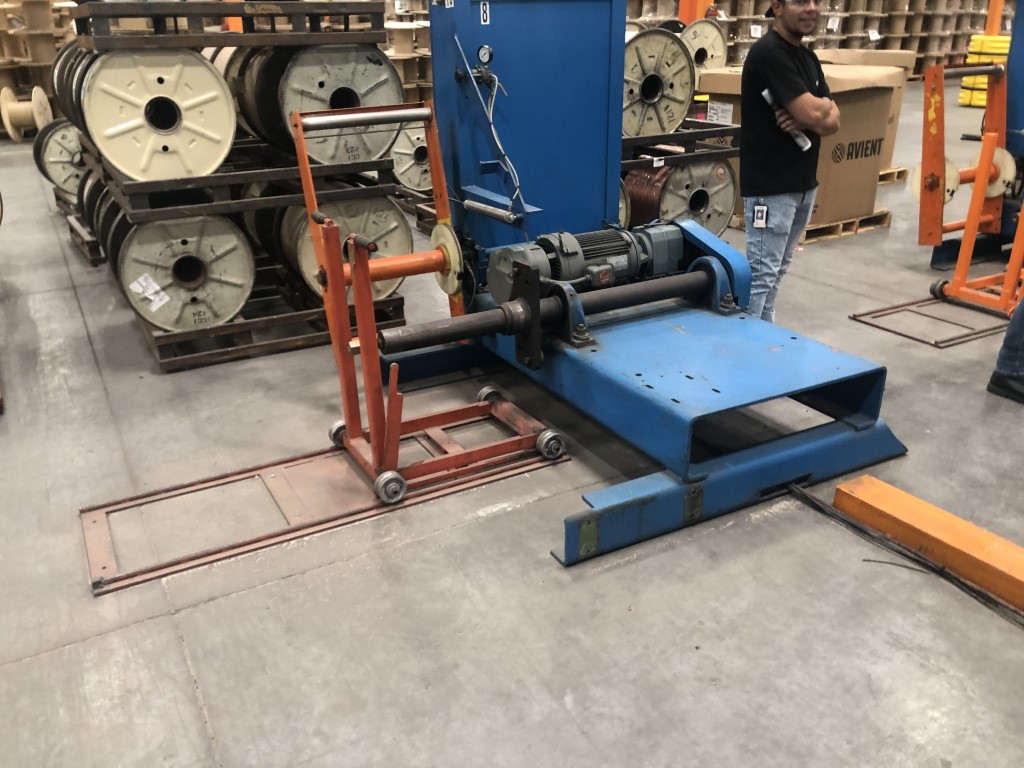

(1) Watson Shaft Type Driven Payoff
Modulating Arm Dancer
Cleaned and Painted
#41
