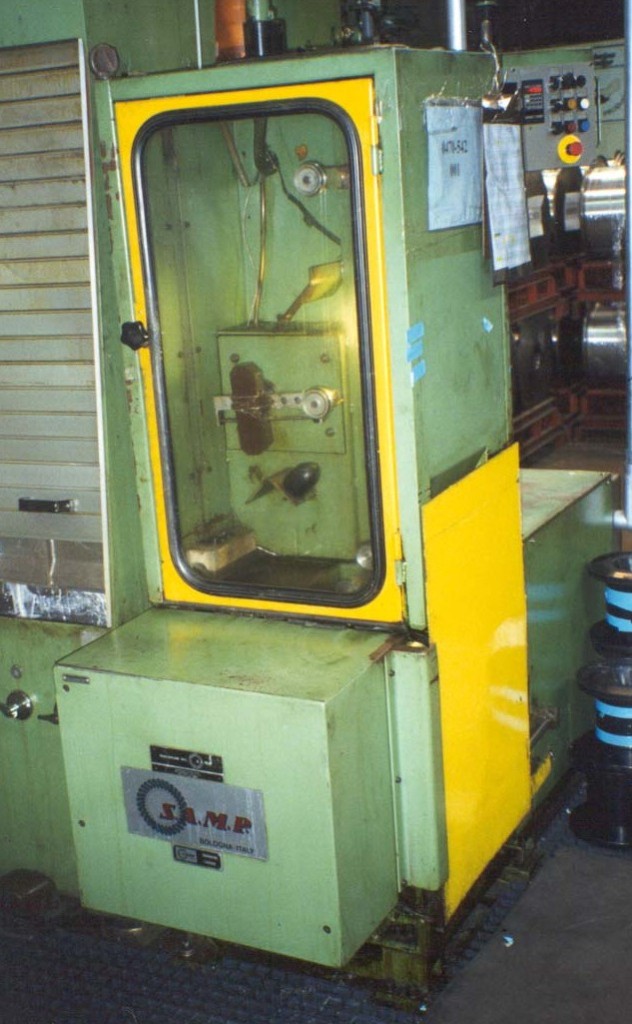

SAMP Two-Wire Drawing, Annealing and Spooling Line

Features:
Make: SAMP
Model: TRB3.2
Year of Manufacture: 1986
Serial number: 6027.08 / 6027.10 /86027/22

Specifications:
Material: Bare or tinned copper
Number of wires: 2
Number of die reductions: 22 per wire

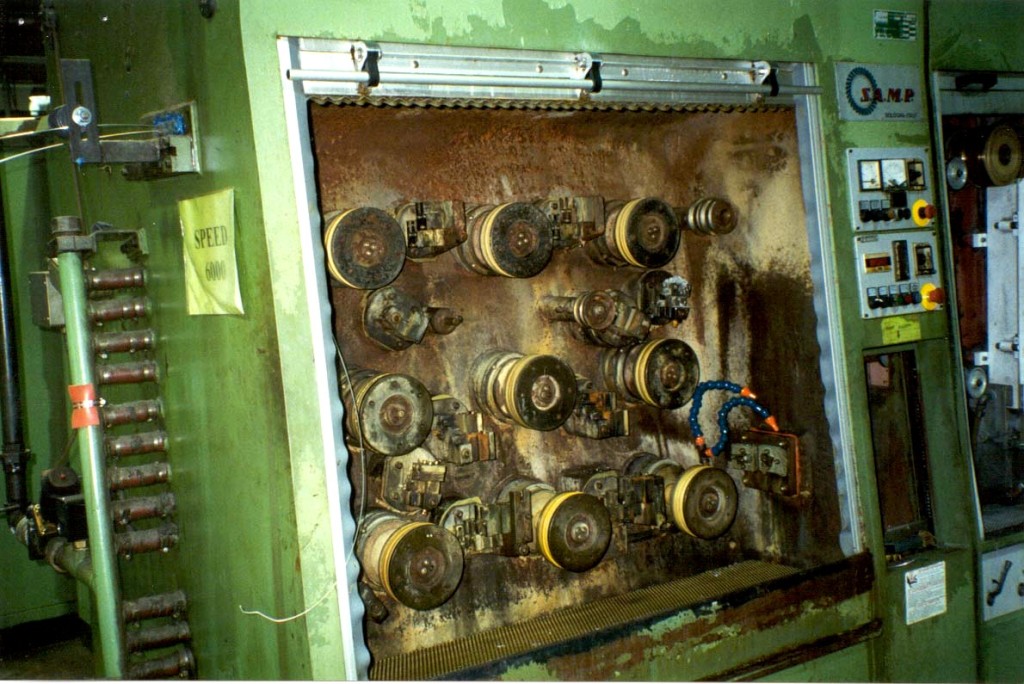

Number of draw-block shafts: 9
Draw-block arrangement: 2 and 3 step
Finish capstan: Separate
Draw-block and capstan material:zirconium oxide ceramic
Maximum size of entering wire: 2.0 mm soft / 1.8 mm hard
Maximum finish wire size: 2 x 0.40 mm / 1 x 0.60 mm
Minimum finish wire size: 2 x 0.15 mm
Maximum line speed: 50 m/sec
Drafting elongation: 26.1% per die
Drafting area reduction: 20.7 % per die

Number of annealer contactor: 3
Annealer contactor diameter: 160mm
Annealer wire path: Separate for each wire
Annealer drive: From finish capstan
Spoolers: Two (2) manual type
Maximum reel flange diameter: 250 mm

Electrics:
Drawing machine motor size: 75 kW (55 HP)
Annealer current capacity: 500 Amps
Spooler motors: 10 kW (7½ HP)
Operating Voltage: 460V/ 3 Phase/ 60 Hz
