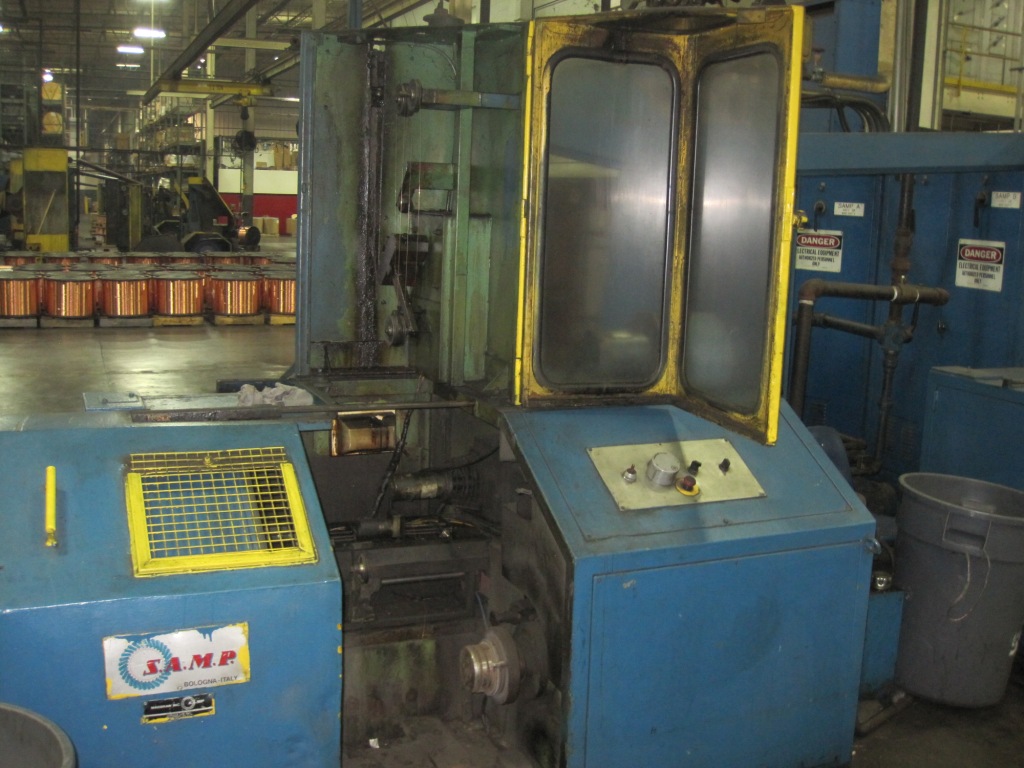

SAMP 2 Wire Drawing Line
SAMP 2 Wire Drawing Machine
Model MT16.2
SAMP Annealer
Model R16.2

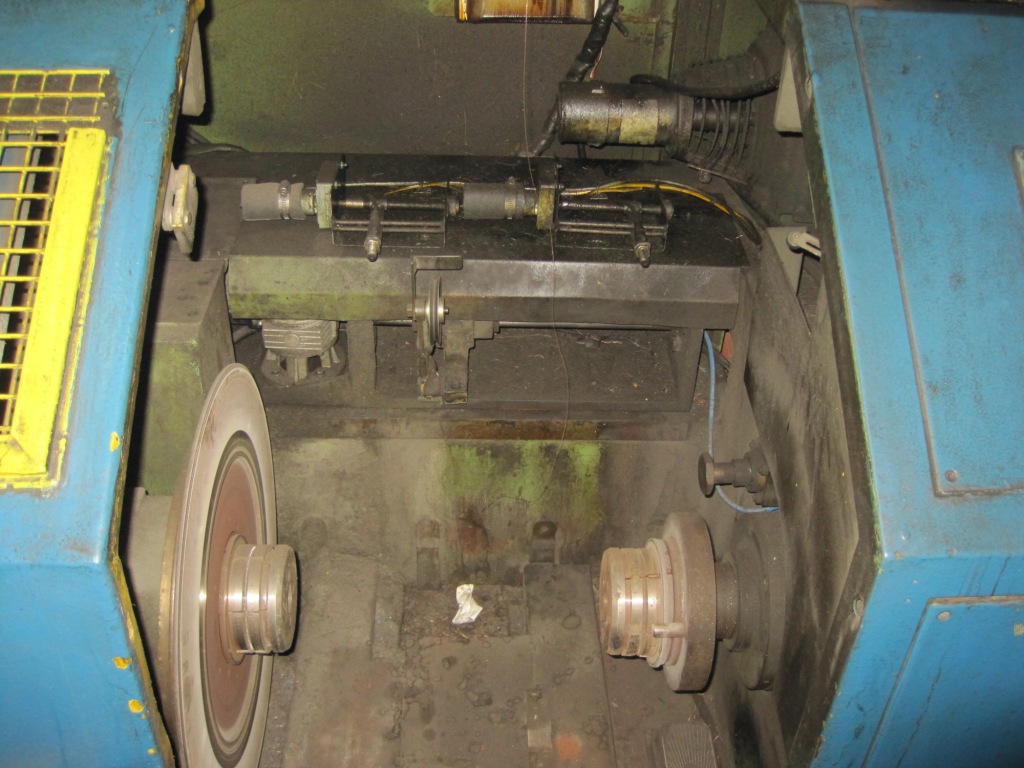

(2) SAMP Spoolers
Model TE/45-M
Year of Manufacture 1989
Serial Number 89003.05/.02
Spooler drive: Independent motor and drive
Spooler arbor: Expanding type
Dancer: Machine mounted
Reel size:
Maximum flange diameter: 20” (500 mm)
Bore diameter: 3” (76 mm)
Overall Width 14.5 (370 mm)

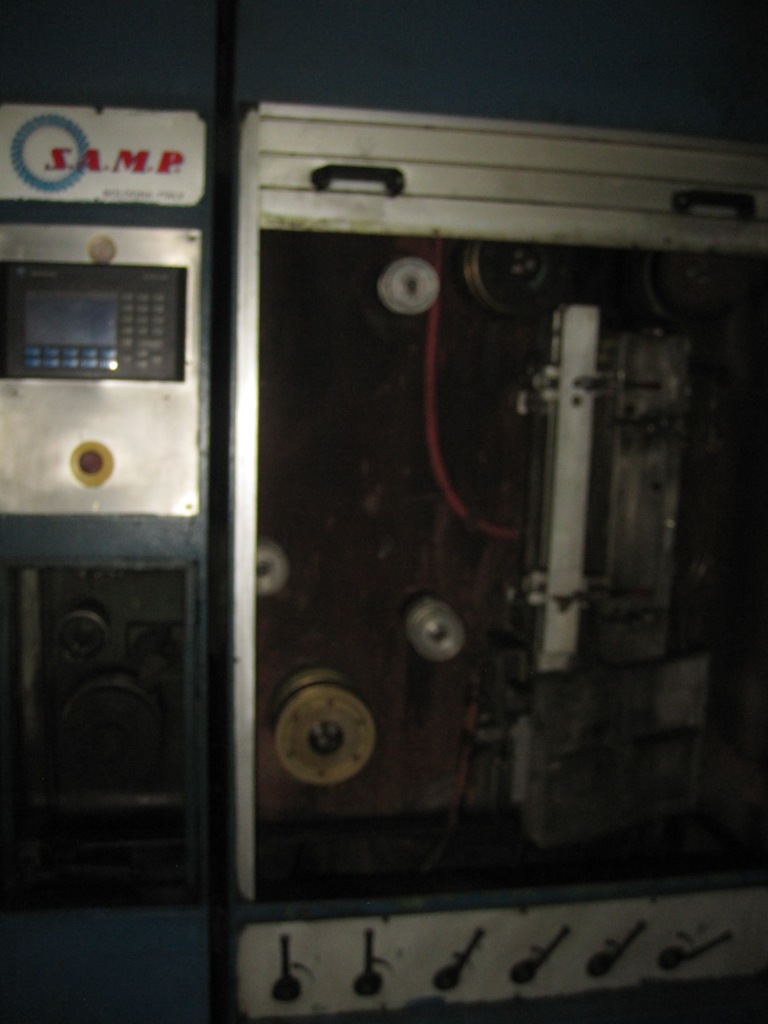

Allen Bradley PLC
Typact Drives

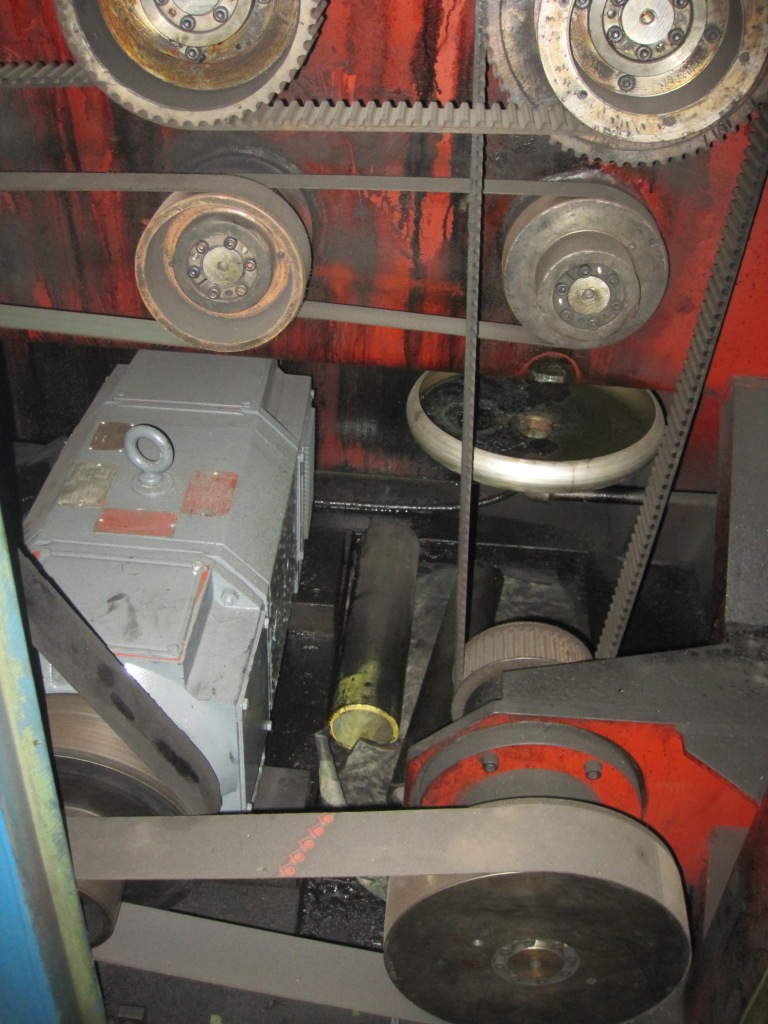

100 hp D.C. 500 volts arm 150/300 volts field and 2500 rpm
Original performance specifications for the line are as follows:
50 m/sec. - 2 x 0.15 - 0.35mm ( 1 x 0.15 - 0.40mm )
40 m/sec. - 2 x 0.36 - 0.37mm ( 1 x 0.41 - 0.50mm )
31.5 m/sec. - 2 x 0.38 - 0.40mm ( 1 x 0.51 - 0.56mm )
25 m/sec. - 1 x 0.57 - 0.60mm
Max. Inlet (hard):
2 x 1.80mm
1 x 2.00mm
Max. Inlet (annealed):
2 x 2.00mm
