SAMP Rod Breakdown Line, MS/400 13-die Ceramic draw blocks, 330 HP DC, SAMP 800mm AS/3-800 Drop Coiler
|
Product Code:WRD1169
Manufacturer:SAMP
Location: Wadesboro, North Carolina
|
|
|

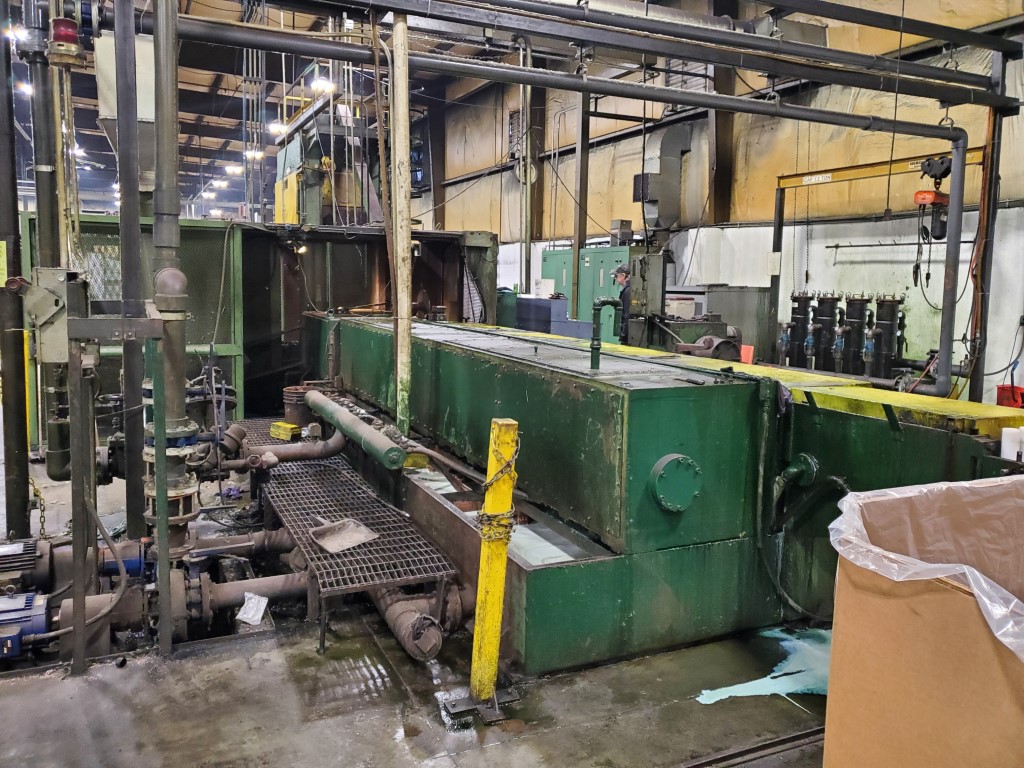

MS/400 13-die drawing machine, Ceramic draw blocks
Year of Manufacture 1988
Number of drawing dies: 13
Drawing Blocks: Tandem
Diameter of drawing blocks: 400mm
Material: Copper

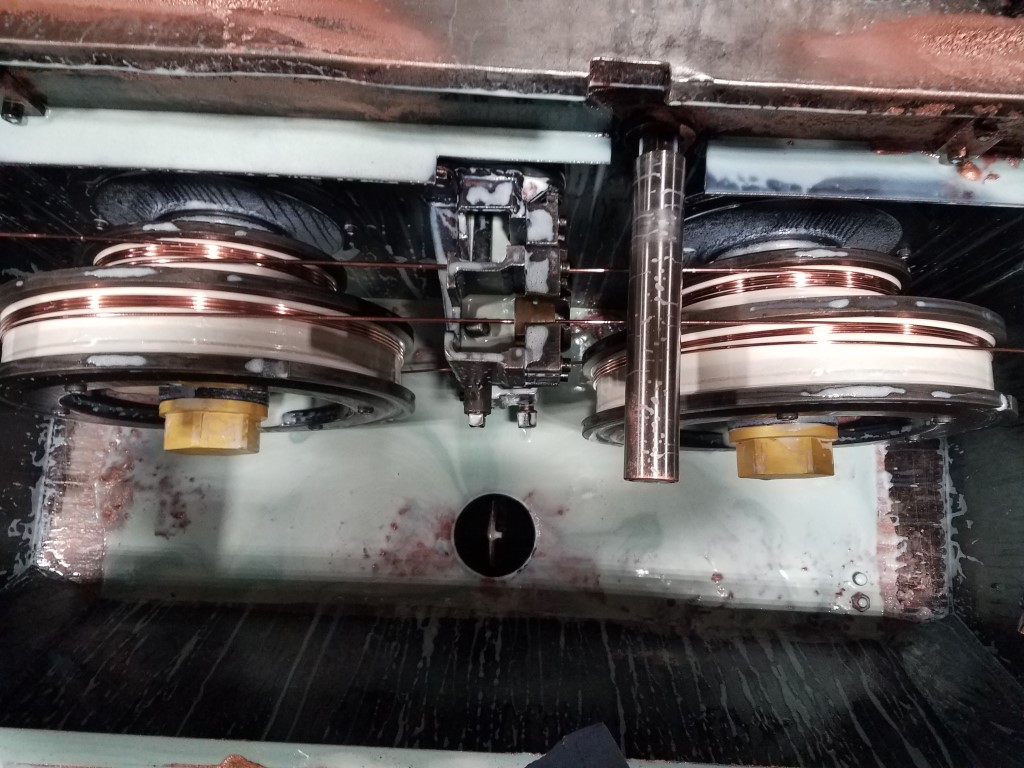

Draw blocks: Ceramic
Specifications:
Inlet wire diameter: 8mm copper rod
Finish wire diameter: 3.5mm to 1.0mm
Maximum rated line speed: 35 meters per second (6500FPM)
Electrics:
Motor: 330HP DC

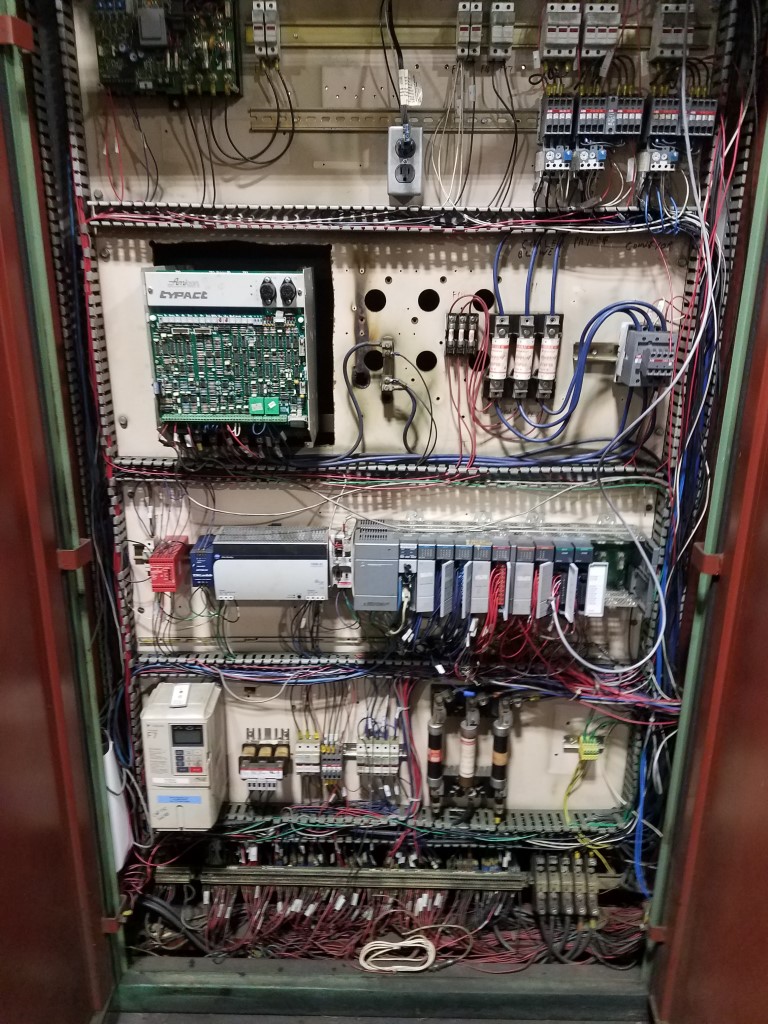

SAMP OEM drive control panel
440kVA and 51kVA isolation transformers

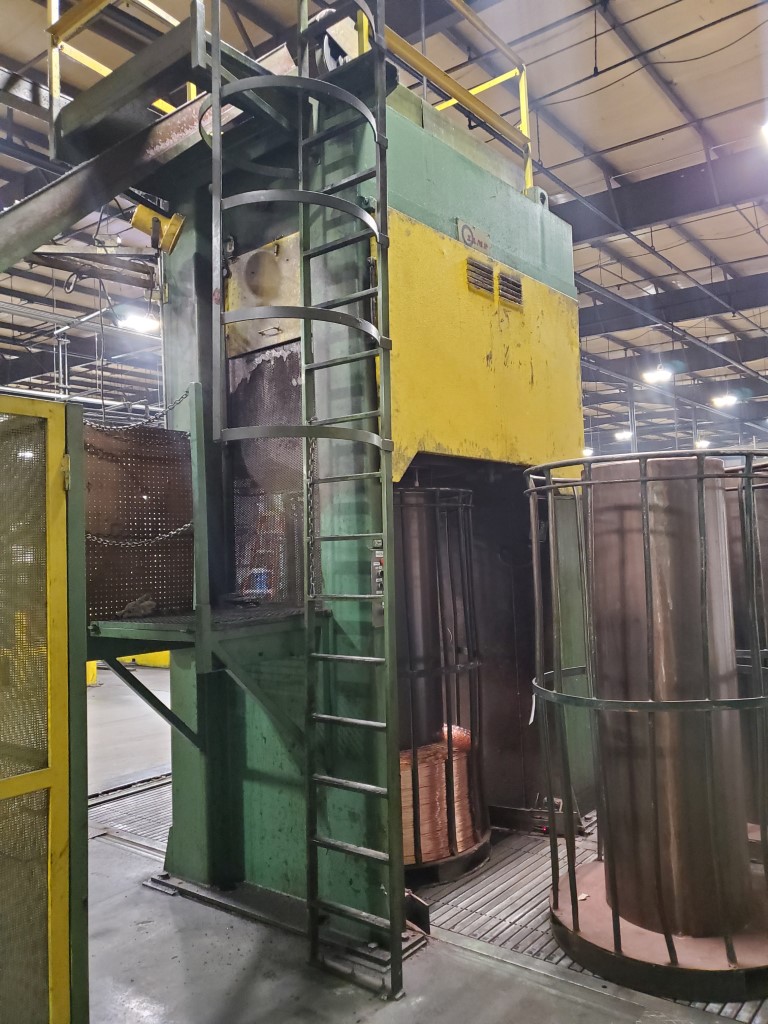

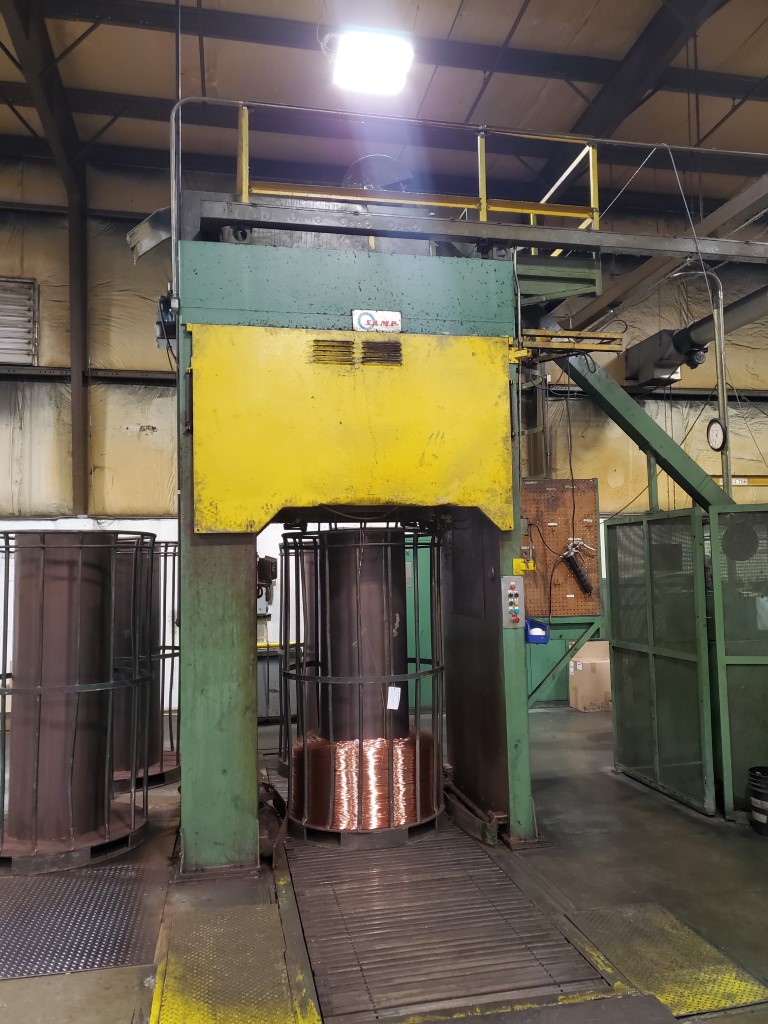

800mm SAMP Drop Coiler
Model: AS/3-800
Capstan Diameter: 820 mm
Basket dimensions:
Outer Diameter: 1000 mm x Inner Diameter: 590 mm
Max height: 1630 mm
Max Weight: 4,200 lbs.
Dancer assembly
3-position motorized basket conveyor
35 HP DC Drive.
Operator station
Protective guards, fencing and accessories
Available: Significant spare parts assortment-Bearings, Gears, Shafts, Ceramic rings etc.
|
|
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned.
