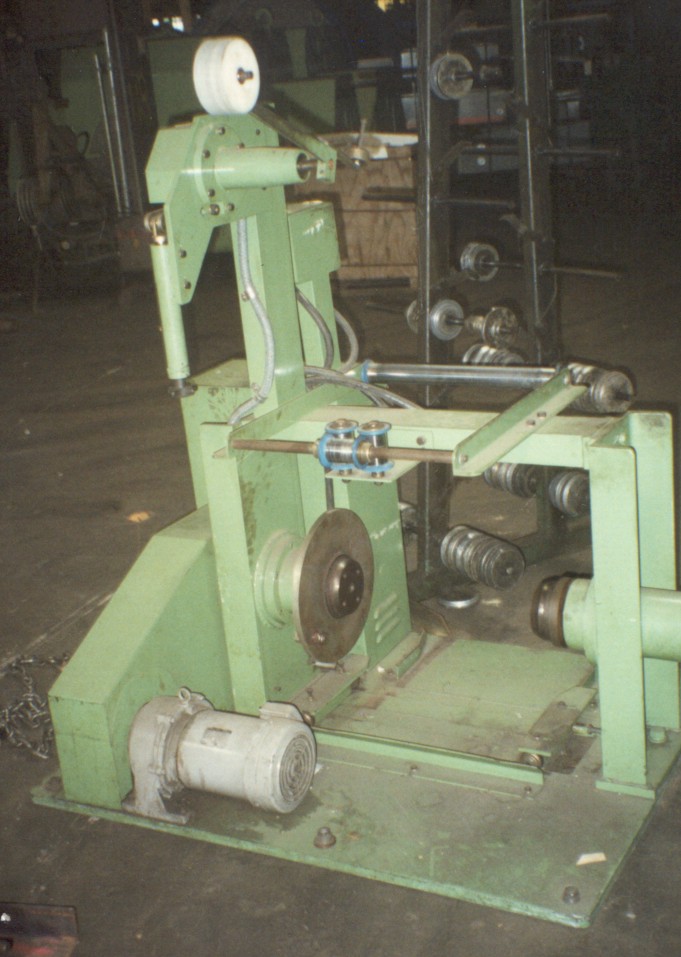

24" Watson payoff, shaftless, driven,
Model PP6,
Serial# K545-19 (.032)
Year of Manufacture: 1993,
Hand-crank in / out adjustment, one side
630 mm maximum reel flange diameter
475 mm maximum reel overall width
127 mm pintle diameter
one pintle in/out by hand crank,
DC motor with tensioning dancer,
control panel, plug in electrical cord.
fixed width and height, screw adjustment in and out 1 pintle, 5" dia. 19" OAW,
catenary dancer for tension control, 1.5 KW motor with controls.
