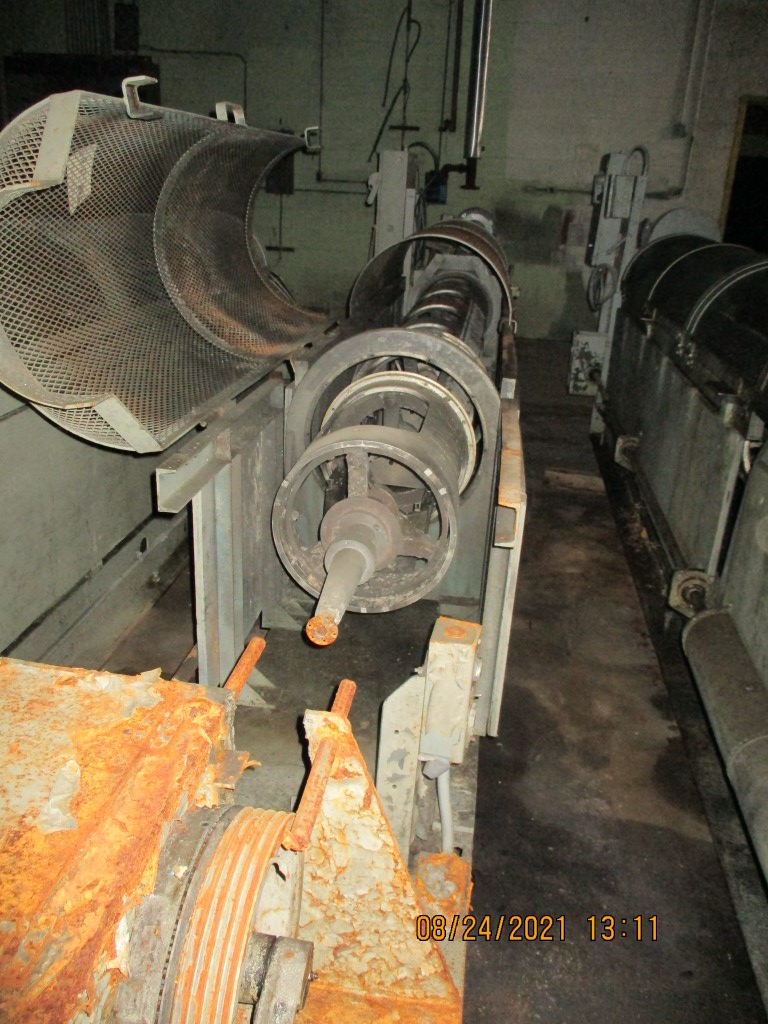

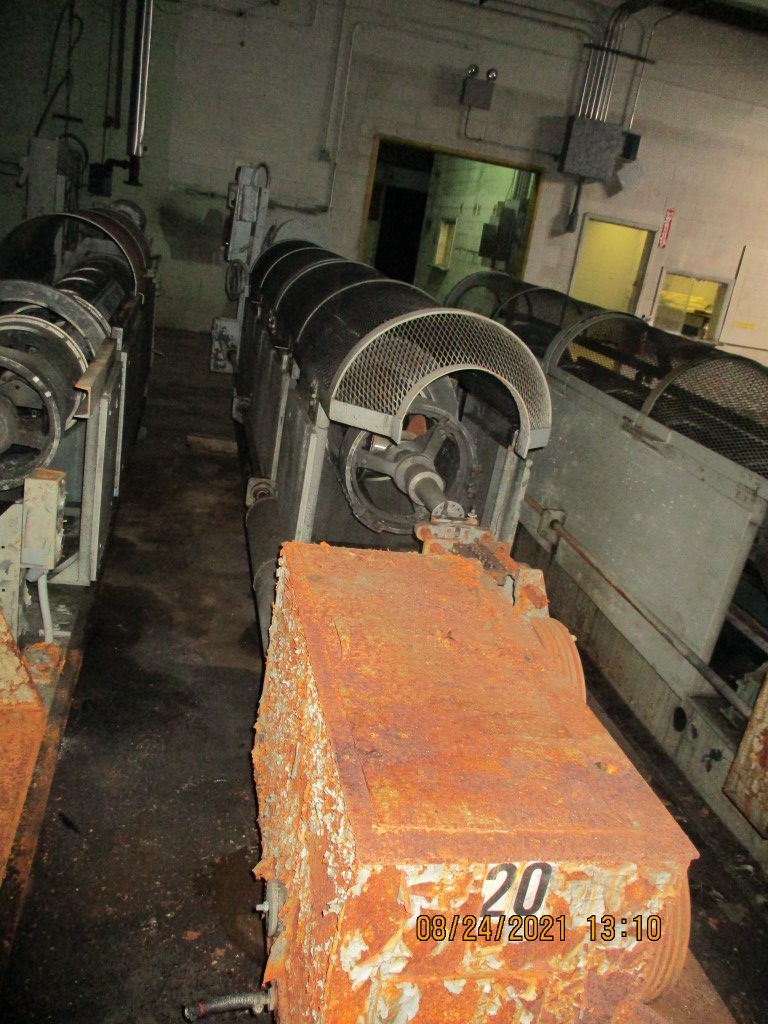

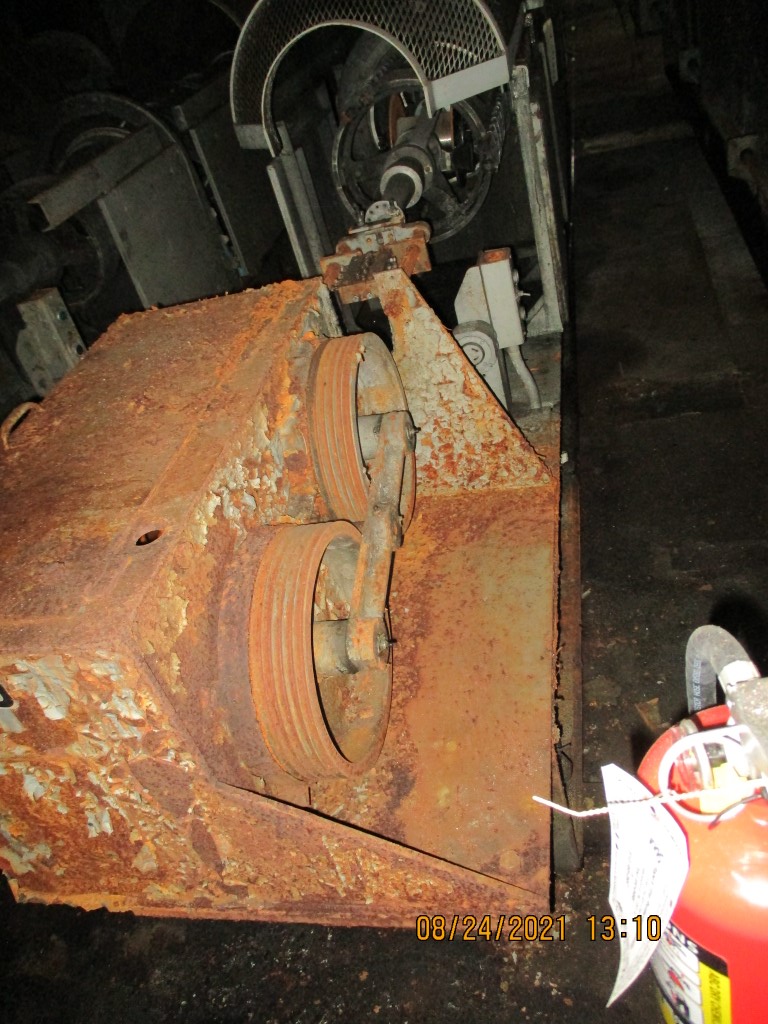

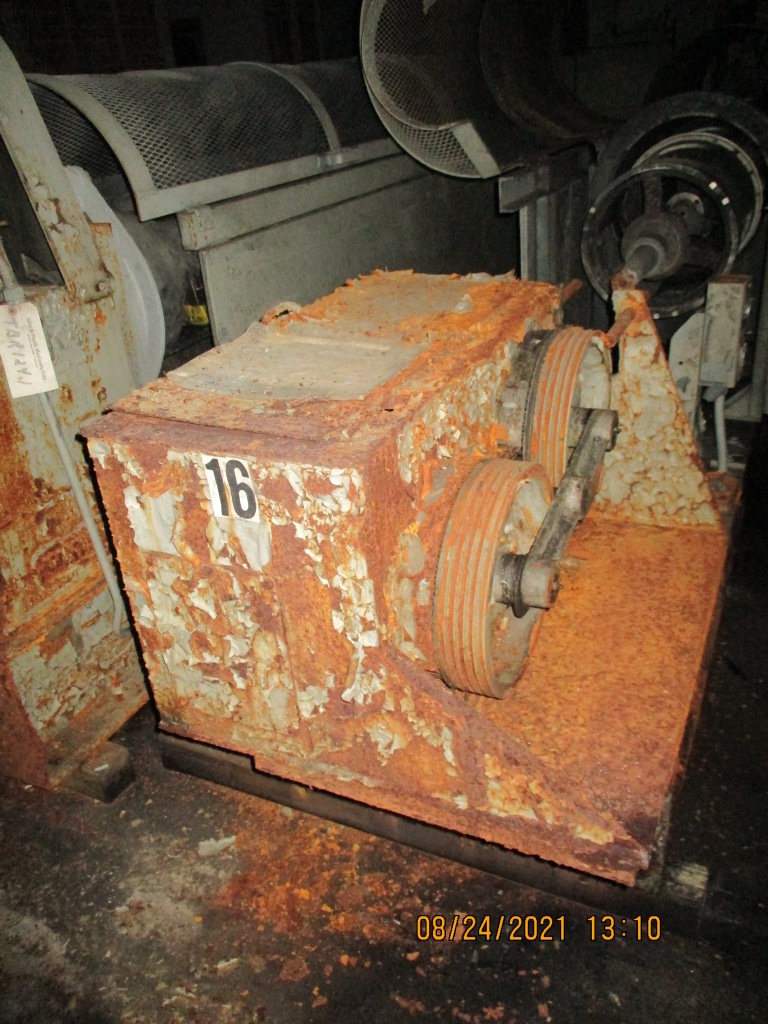

10" Watson Tubular Strander, 6 Wire,outside string up (qty 2)
|
Product Code:TBR124
Manufacturer:Watson-Kinrei
Location: Wadesboro, North Carolina
|

Click on any image to enlarge
Do you have a similar machine for sale ?
Fill out the contact us form
|
10" Watson Tubular Strander, 6Bay
Number of positions: 6
Direction: Left to Right
Model 6-B-64
Outside string up
Encircling bearing
Shaft type cradles
Rope tensioning
Bobbin Dimensions:
Flange Diameter: 250mm (10" )
Overall Width: 165mm (6 1/2")
Capstan Diameter: 304mm (12")
Dual wheel capstan 5x5 x 1/2" wide V groove
Change gears for lay control
10 HP AC motor, 1750 RPM
36" Custom Built take up
Cantilever shaft type
Screw traverse
Portable on wheels
1/2 HP variable speed DC motor
|
|
