16 Carrier OMA Braider with 1250 mm Payoff and Take-up, Braider, and Dancer
O.M.A. Advanced Braiding Solutions 16C Braider Braider (LL-1)
Includes: (2) Spool Holders, (1) Braider, (1) Dancer Braider
Year of Manufacture: 2009

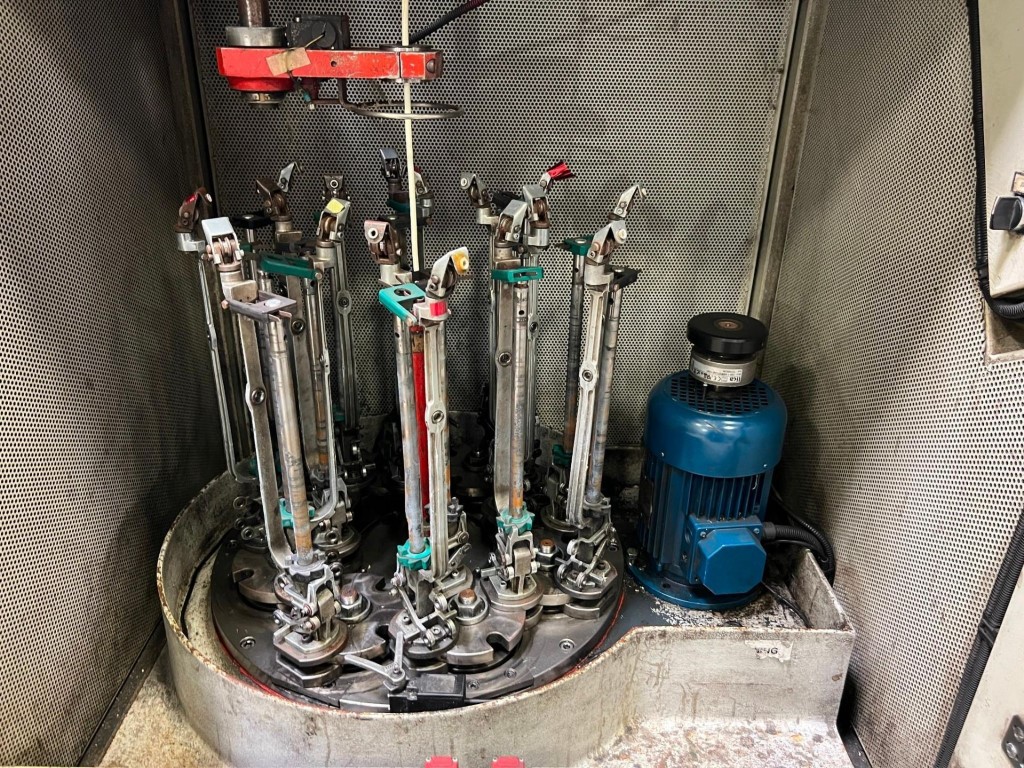

16 Carrier OMA Braider
Model: TRECCIATRICE
Type: TR161 1-140FT/ECDX
Max. speed: 230 rpm
General Specifications:
Horn gear size: 140 mm (5.5")
Carriers per deck: 16
Wire speed: 58.7
Wire carrier speed: 50
Capstan dia.: 400 - 600 mm
Braiding pitch control: Electronic
Sound proof cabinet
Average sound: 80 dBA

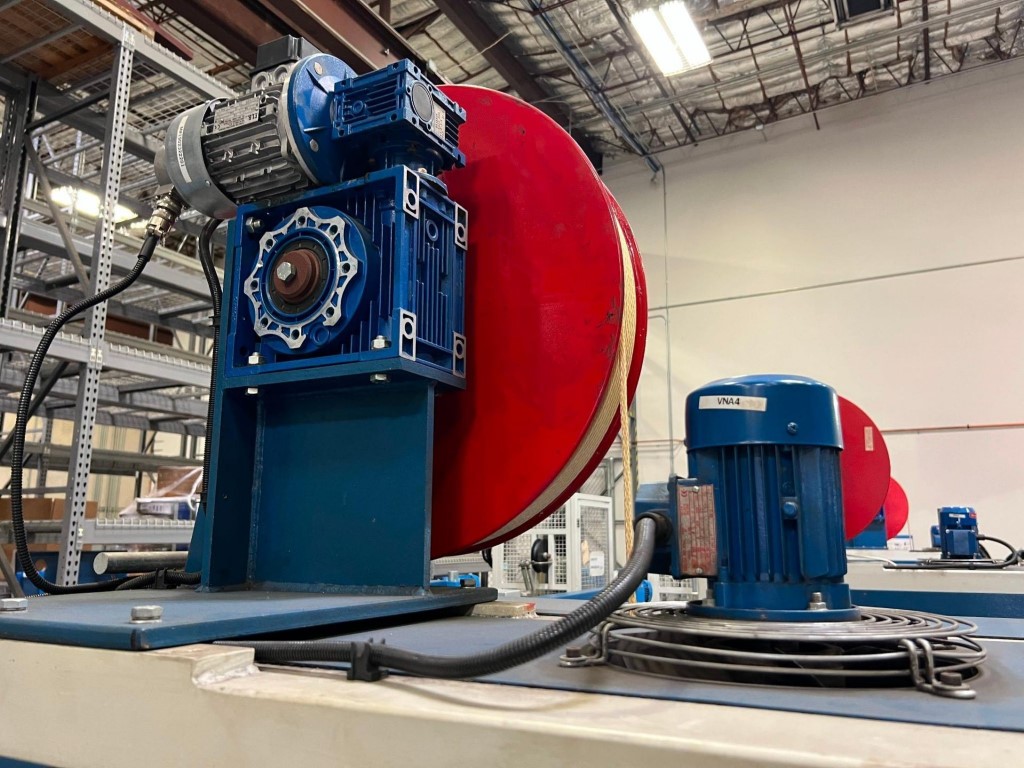

OMA 1250 mm Shaftless Payoff
Model: SVOLGITORE
Type: CSV1250 CMP 5 M
Voltage: 480V, 60 Hz
Motorized Lift
Fixed Width Style, Pintle for width adjustment

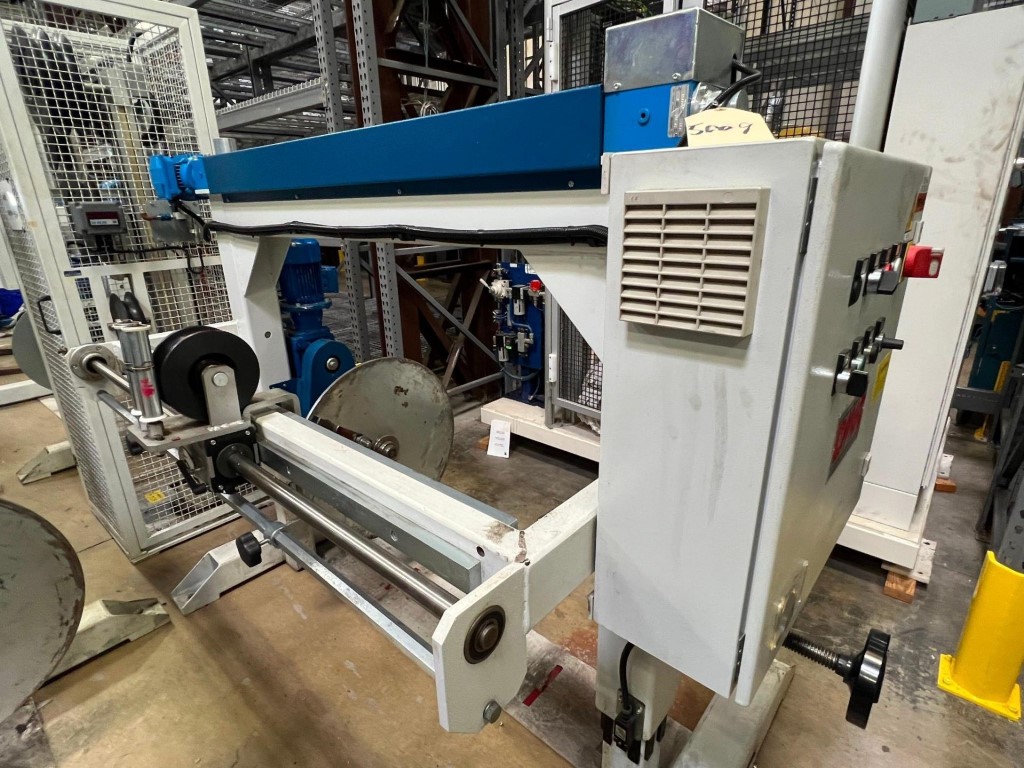

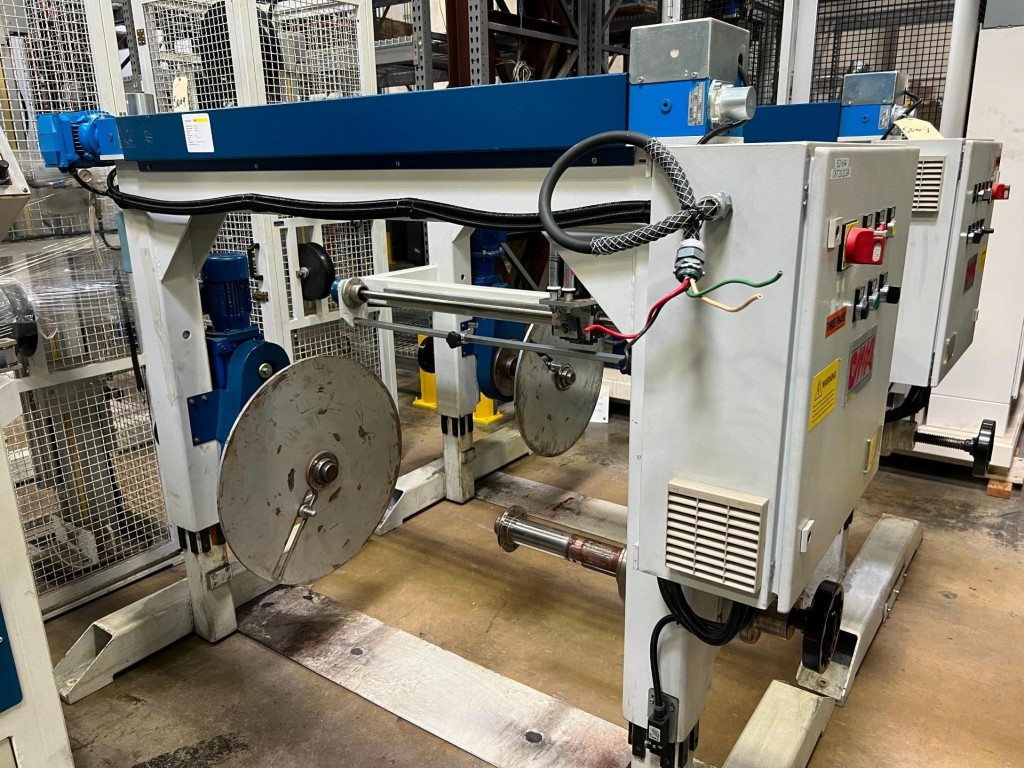

OMA 1250 mm Shaftless Take-up
Model: AVVOLGITORE
Type: CAV1250 CMP 5 M
Voltage: 480V, 60 Hz
Motorized Lift
Fixed Width Style, Pintle for width adjustment
Amacoil Traverse
Motor and Drive

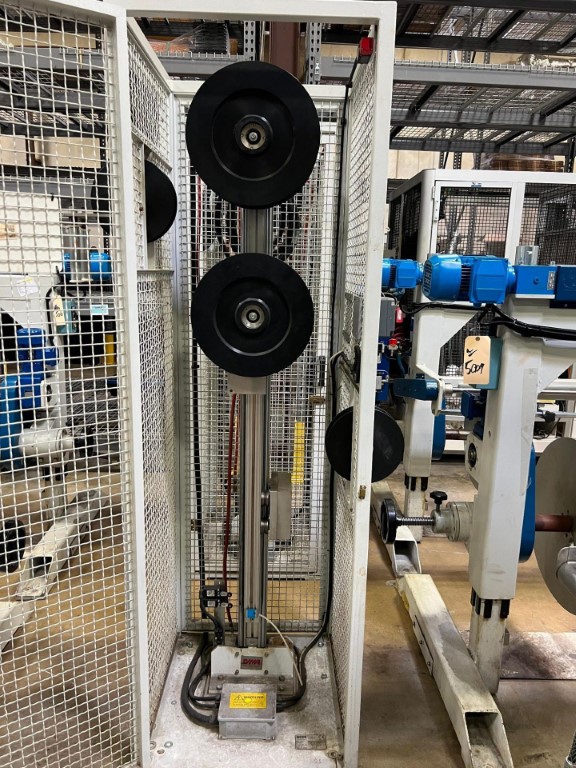

OMA Dancer Accumulator
Model: ACCUMULATORE
Type: AC/300/PN
Electrics: 480V, 60 Hz
Lot 1238
