24 Carrier Wardwell Braider, On wire

Product Code:BRD291.5

Manufacturer:Wardwell

Location: Wadesboro, North Carolina
Click on any image to enlarge
Do you have a similar machine for sale ?
Fill out the contact us form

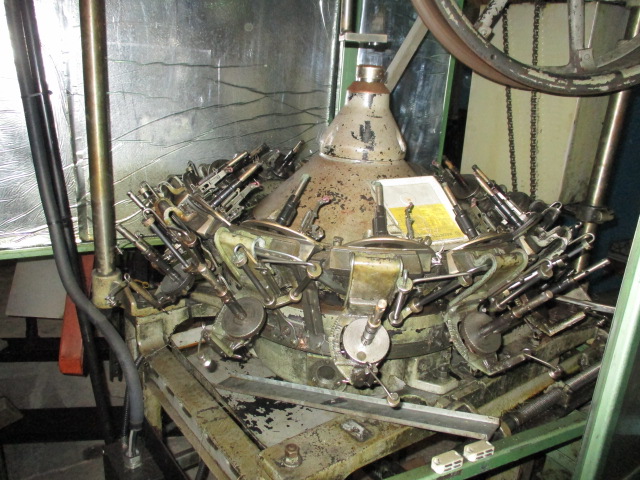

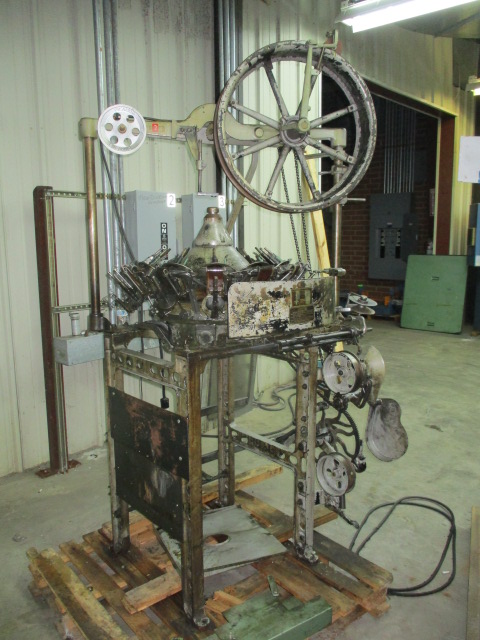

24 Carrier Wardwell Braider, On wire

Model: Rapid
Material: Cu. Al. and soft steel at reduced RPMs
Head Speed: 55 RPM
Capstan diameter: 26" (660 mm)
Capstan width: 5.5" (139 mm)
Bobbin rotational speed: 55 RPM on wire
Bobbin dimensions: 66 x 105 mm
Bobbin capacity: 255 cu. cm
Central passage (max braid diameter): 44 mm
Pull off per bobbin revolution- lay length (change gears): 6.6 - 75.8 mm
Payoff and take-up reel dimensions: 36" (914 mm) flange x 16" (406 mm) width

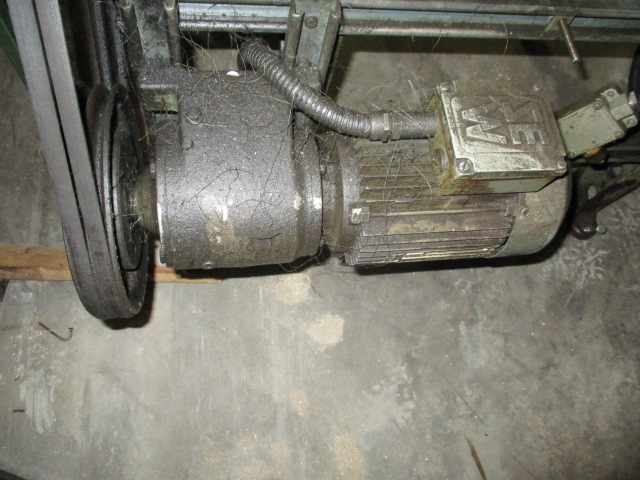

Motor: 1 HP
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned. Items listed on the website are for infomational purposes only. Please base your purchasing decision on specific information you receive from your sales representative.

Our complete inventory list is not available on the website. if you don't see the machine you are looking for, please contact us and we will be happy to assist you.
