New 16 Carrier Wardwell Braider
Model Speedmaster 150

Individual motorized direct drive.

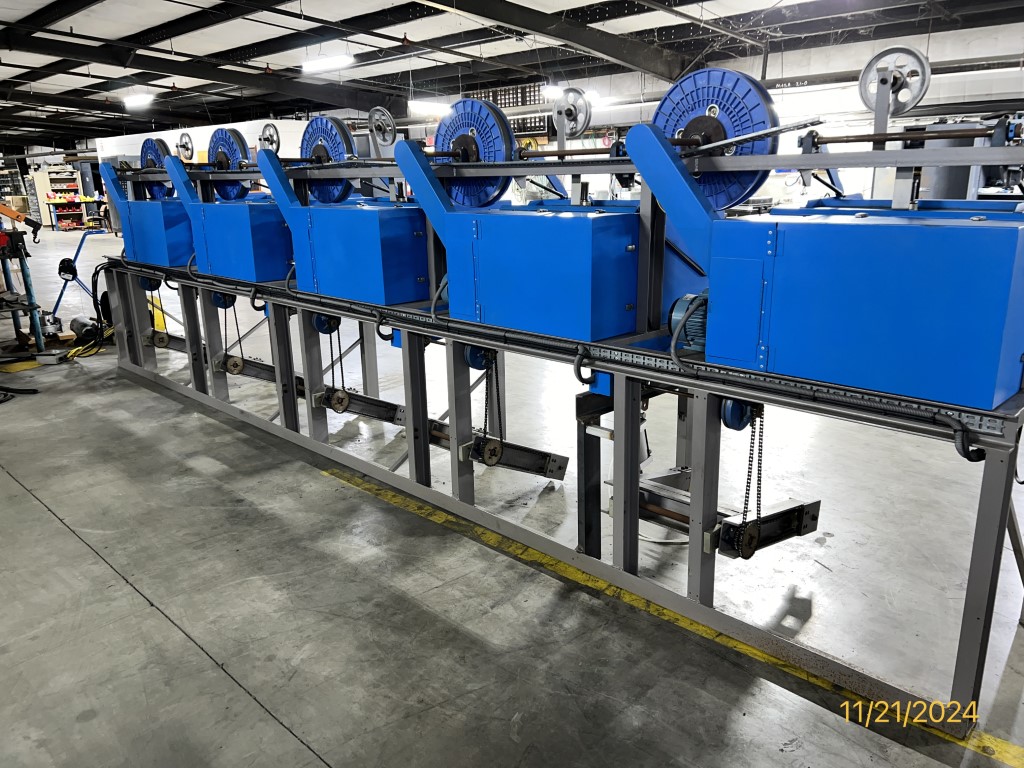

Set up in a bank of 5 on one frame
Capstan Diameter: 18"
30" Shaft type pivoting take-up with Uhing traverse

Specifications:
Carrier Speed: Up to 150 RPM, 1200 picks / Plaits per minute
Driving Pulley Speed: 459 RPM
Ratio Pulley Speed to Carrier Speed: 3.05 to 1
Capstan Diameter: 18” (14.52 cm)
Capstan Face: 3” (76.2 cm)
Standard Opening thru Braider 9/16” (14.2 mm)
Flexible Conductor Cope Diameter Up to 1/2” (12.7 mm)
Motor: 1 HP 50 or 60 HZ

Electrics:
Telemecanique make Electrical control pendent

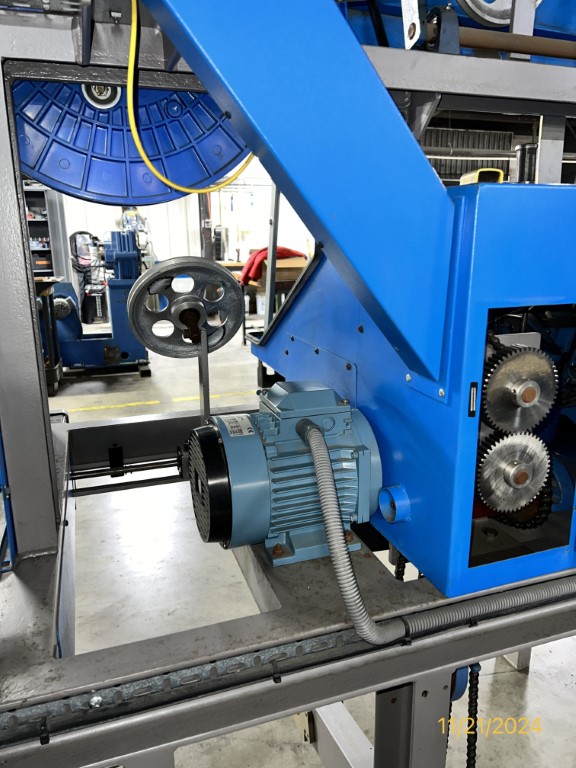

ABB make 3P AC Motors (1HP)
Type : M2AA 0905 3GAA09 3001-ASA
380-420V Star 50Hz, 0.75kW, 930 rpm
220-240V Delta 50Hz, 0.75kW, 930 rpm

Dimensions 21 ft 10inches long x 34 " wide x 6 ft 3inches high
