24 Carrier Wardwell Braider, on wire (Qty.2)

Product Code:BRD452

Manufacturer:Wardwell

Location: Attleboro, Massachusetts
Click on any image to enlarge
Do you have a similar machine for sale ?
Fill out the contact us form

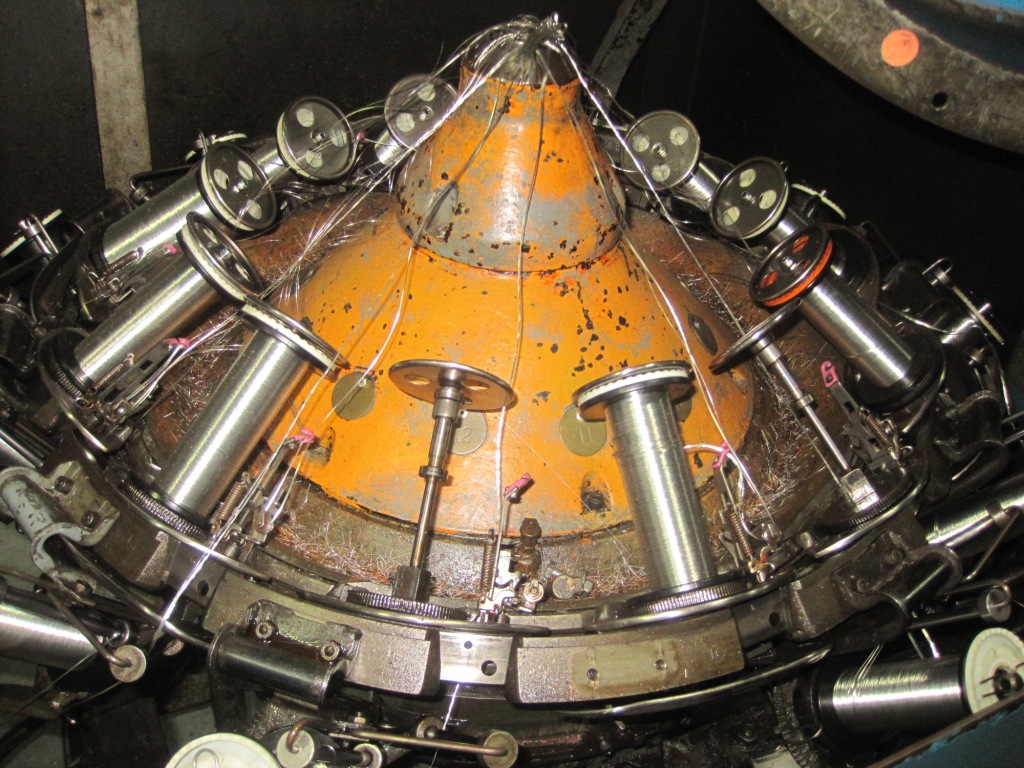

24 Carrier Wardwell Braider,

On wire
Model Rapid Braider
Head Speed: 55 RPM
Maximum beater opening: 1 1/2"
Capstan: 24" Diameter

Specifications:
Number of bobbins: 24
Bobbin rotational speed: 55 RPM on wire
Bobbin dimensions: 66 x 105 mm
Bobbin capacity: 255 cu. cm
Central passage (max braid diameter): 44 mm
Pull off per bobbin revolution- lay length (change gears): 6.6 - 75.8 mm

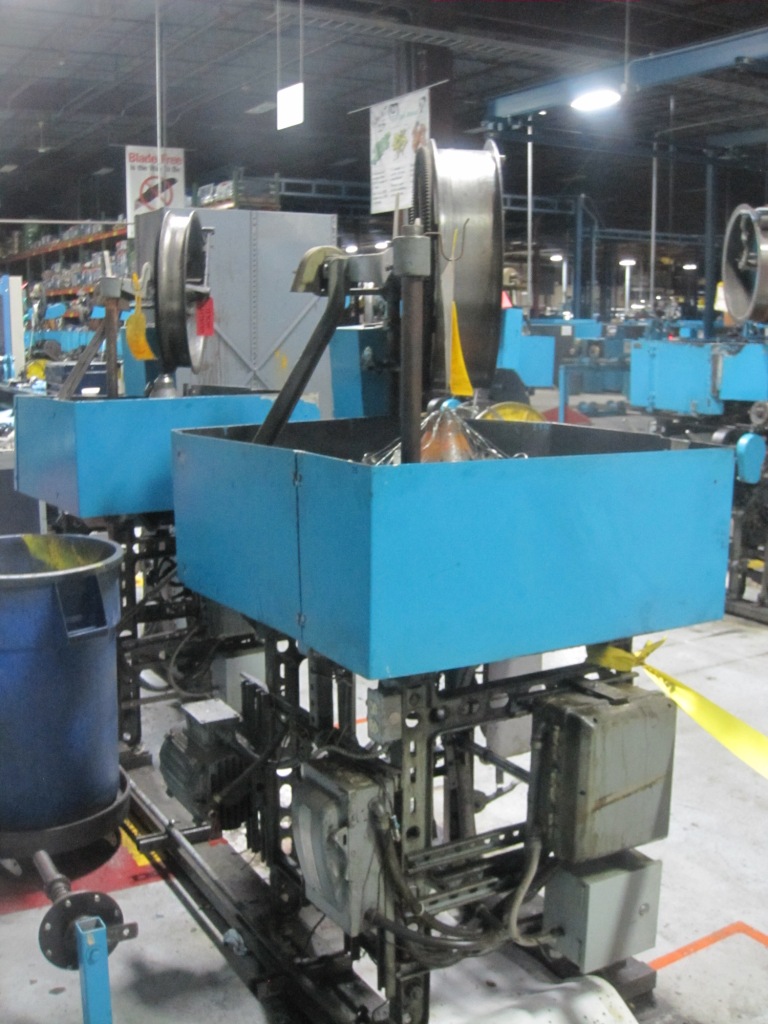

36" Flange x 20" (914mm x 500mm ) with take-up and payoff Reel Dimensions
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned. Items listed on the website are for infomational purposes only. Please base your purchasing decision on specific information you receive from your sales representative.

Our complete inventory list is not available on the website. if you don't see the machine you are looking for, please contact us and we will be happy to assist you.
