NanYang 16 Carrier Wire Braider Model GSB1A

Product Code:BRD501.11

Manufacturer:Shanghai Nanyang Equipment Co. Inc.

Location: Attleboro, Massachusetts
Click on any image to enlarge
Do you have a similar machine for sale ?
Fill out the contact us form

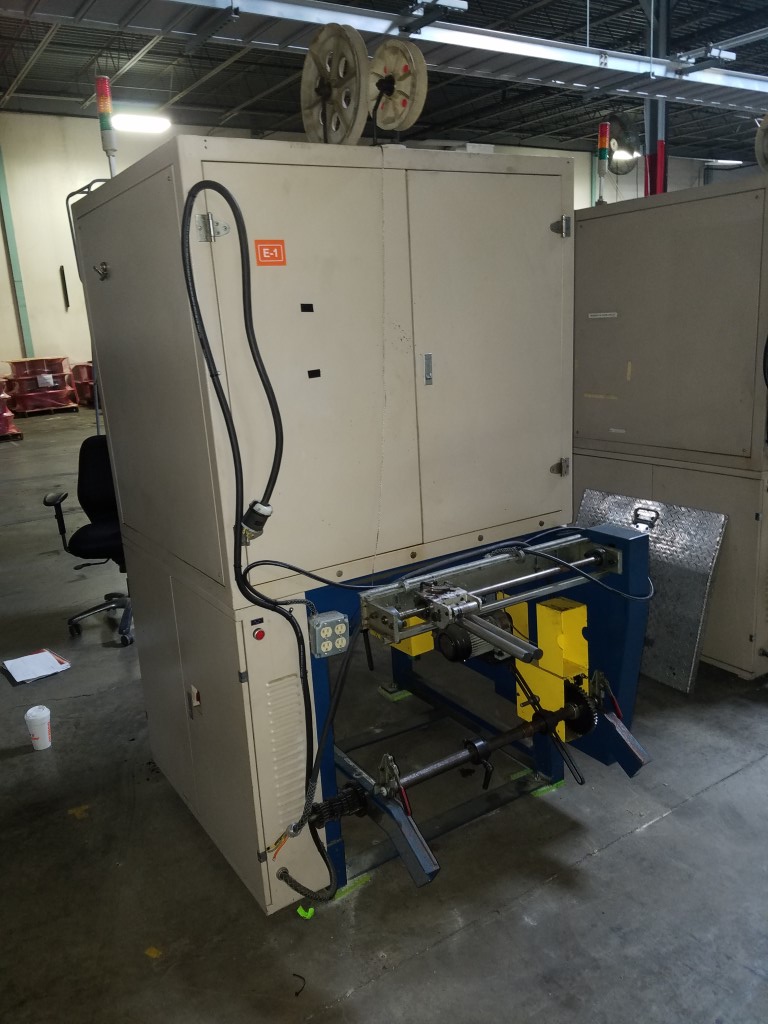

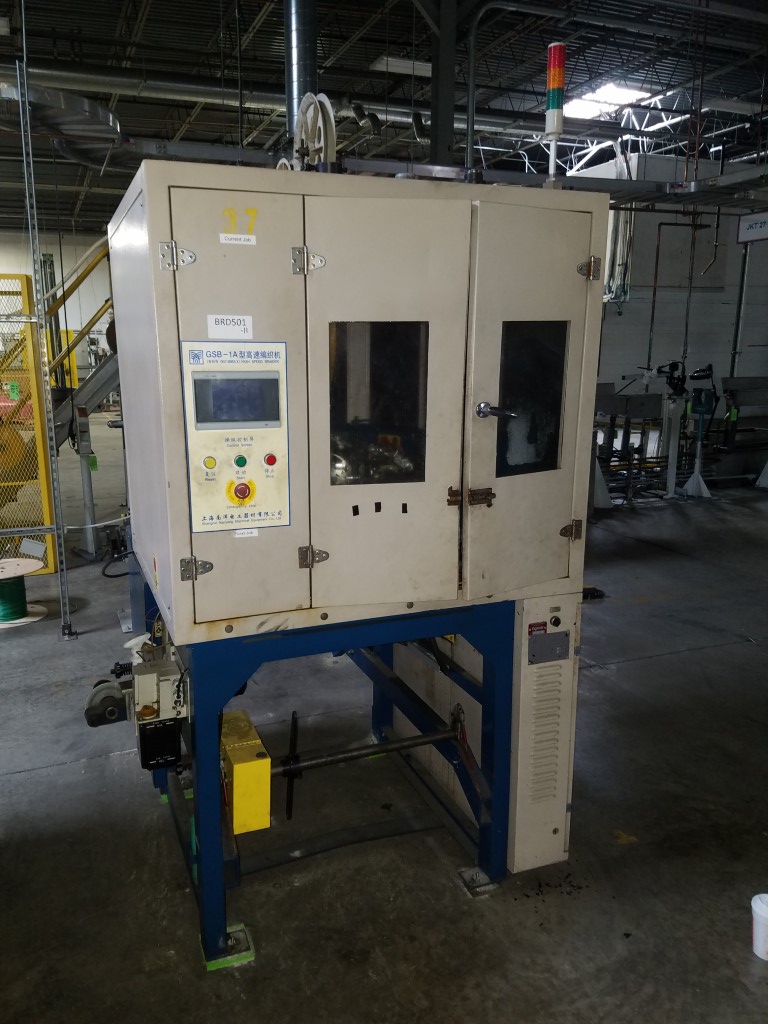

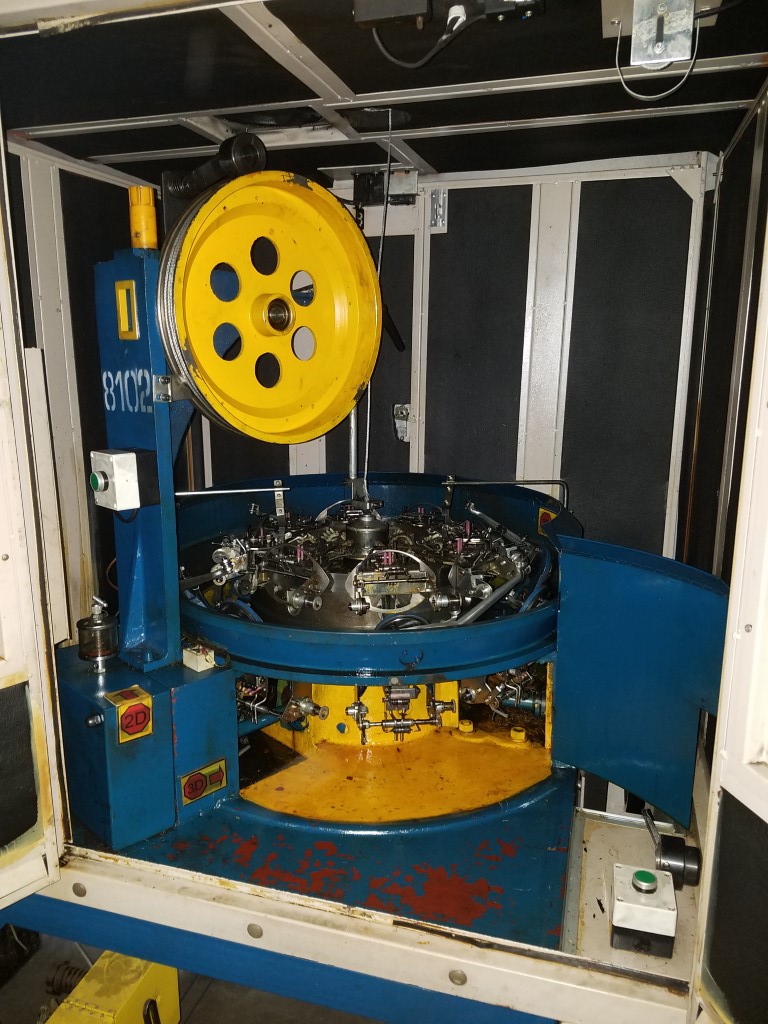

NanYang 16 Carrier Wire Braider
Model GSB1A

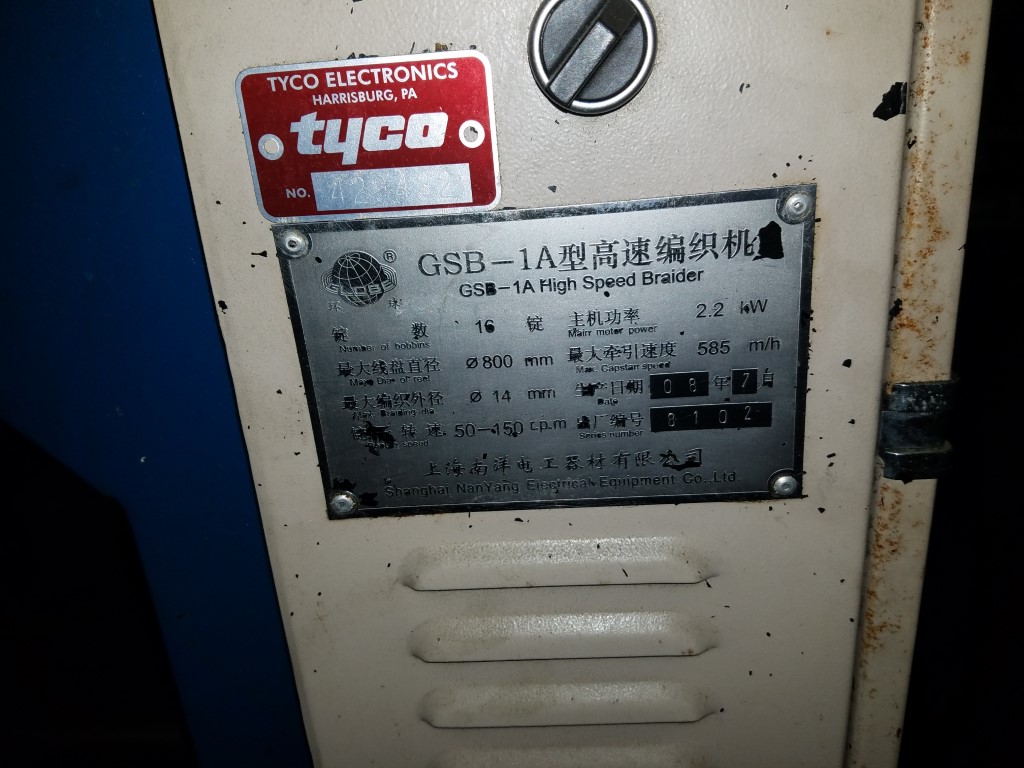

Serial Number    0102
Year of Manufacture: 2008

Specification
Number of bobbin    16
Braiding form    2 over 2
Braiding direction    Vertical
Bobbin size     Dia75mmXDrum22mmXTrav70mm
Bobbin speed    150r.p.m.(Max.)
Braiding pitch    3.2-65mm
Max braiding Dia     14mm
Caterpillar diameter    382mm
pay-off/Take-up    reel size≤800mm
Main motor    1.5kw
Size(mm)    1490X1350X2080
Weight(KG)    900

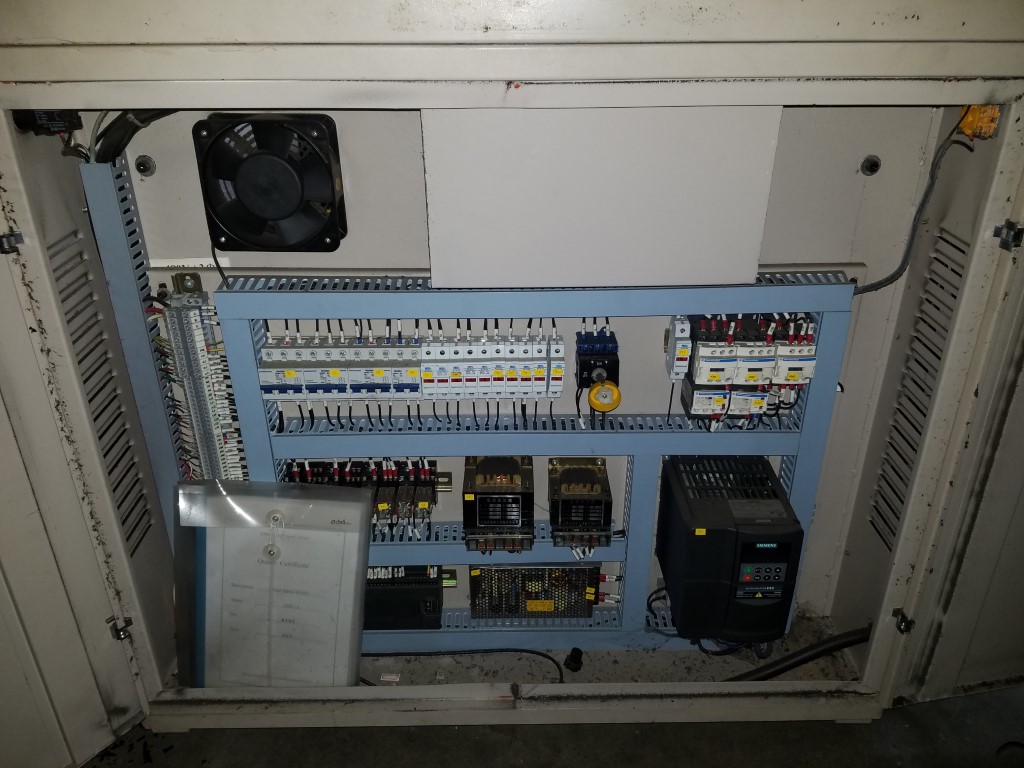

Siemens Drives

Stencil # 37
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned. Items listed on the website are for infomational purposes only. Please base your purchasing decision on specific information you receive from your sales representative.

Our complete inventory list is not available on the website. if you don't see the machine you are looking for, please contact us and we will be happy to assist you.
