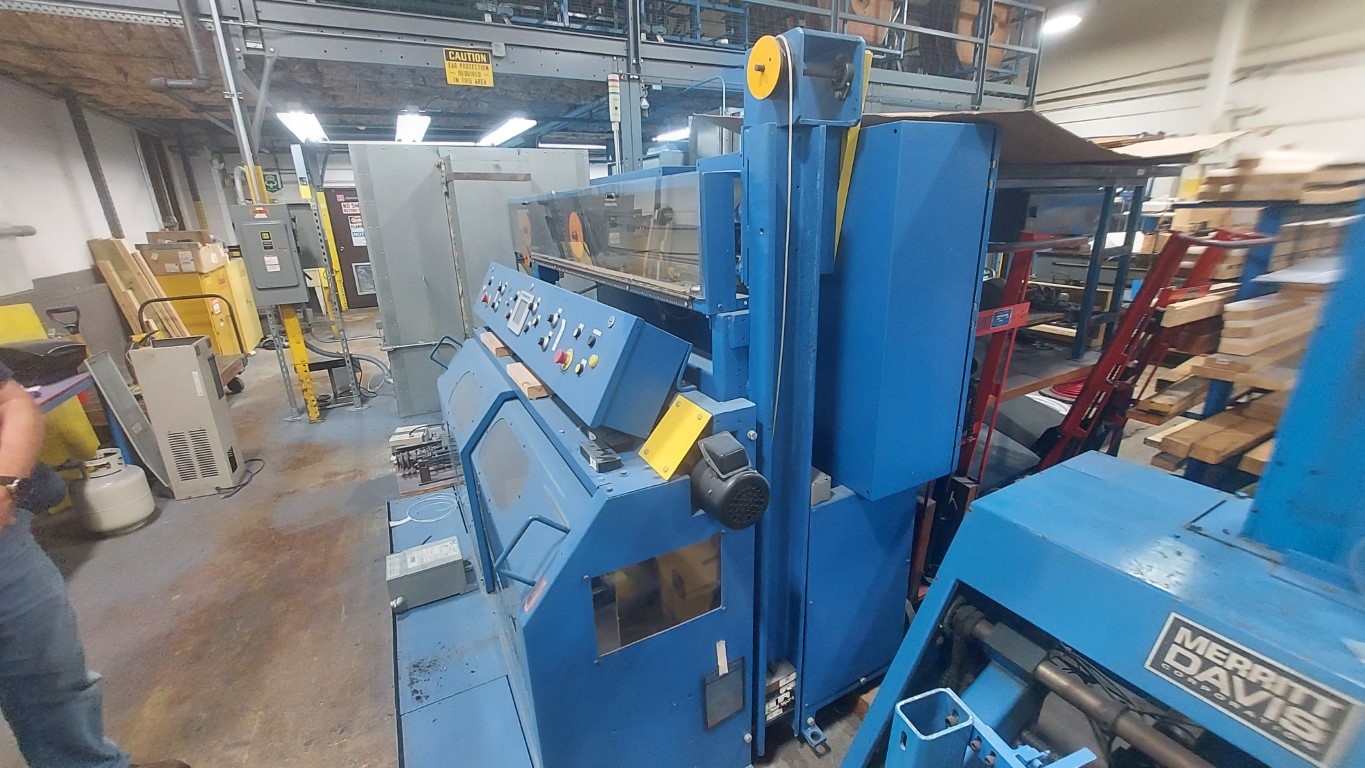

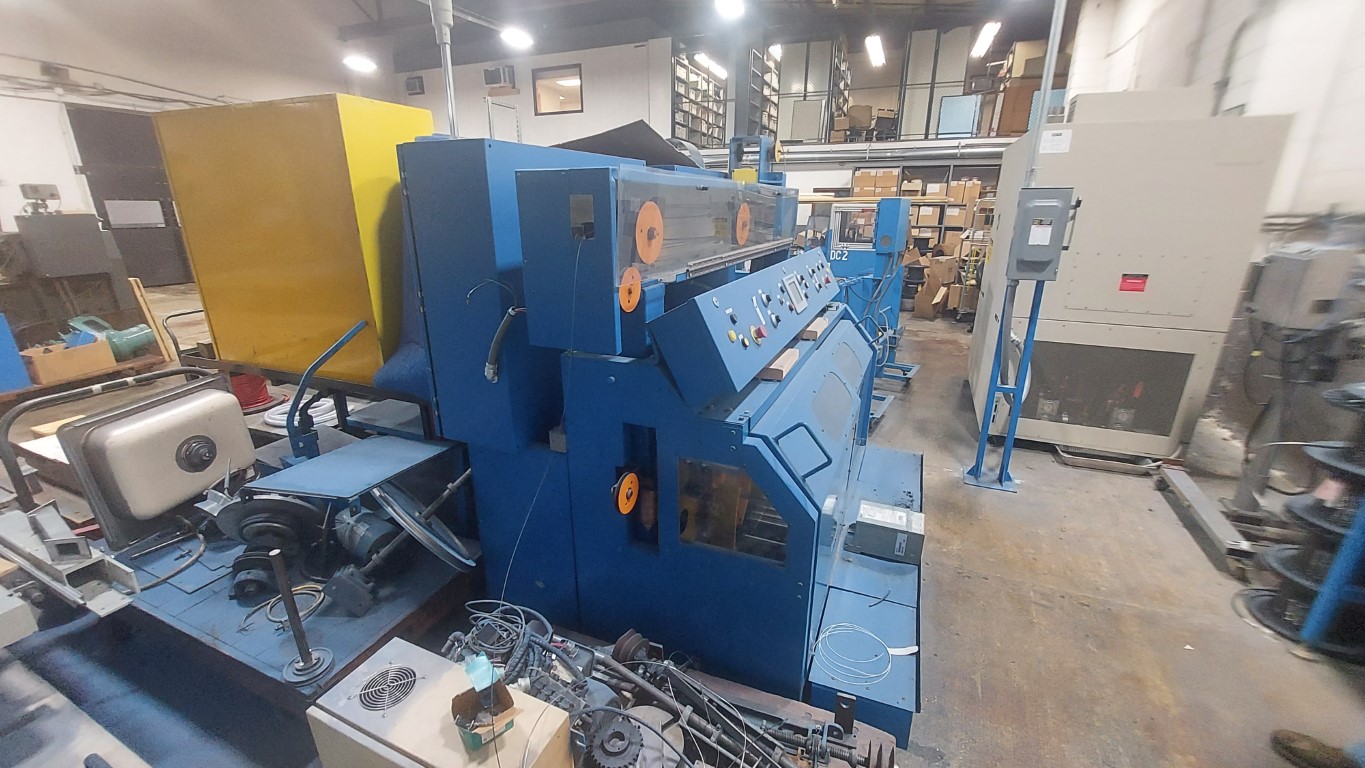

16" Clipper Dual Reel Take-up, DC Motors and Drives, Touch Screen controller
|
Product Code:TKU1769
Manufacturer:Custom Built
Location: Bristol, Connecticut
|
|
|
16" Clipper Dual Reel Take-up, Shaft type
Features: Model: PA-16
Style: Parallel Axis
Specifications:
Shafts: Cantilever type
Traverse: Independently driven
Dancer: Horizontal, machine mounted
Crossover: Automatic
Brake: Pneumatic
Performance:
Maximum linear speed: 3000 FPM
Wire size range: AWG #16 to #30
Maximum cable diameter: ¼”
Reel size:
Flange diameter range: 10“ to 16”
Maximum overall width: 12”
Barrel diameter range: 4“ to 14“
Maximum reel weight: 250 lbs
Electrics:
Motors: Two, DC type, drive, controls
Operating Voltage: 460 V / 3 Ph / 60 Hz
AB Touch Screen Controller
Cleaned, Painted and Checked Operational
|
|
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned.
Items listed on the website are for infomational purposes only.
Please base your purchasing decision on
specific information you receive from your sales representative.
|
|
