3.6m (144") Hall Portal Floor Traversing Take up, Year 1999, Siemens Digital DC Drive/PLC. (Qty 2)
|
Product Code:TKU1492
Manufacturer:Hall Industries
Location: Wadesboro, North Carolina
|
|
|

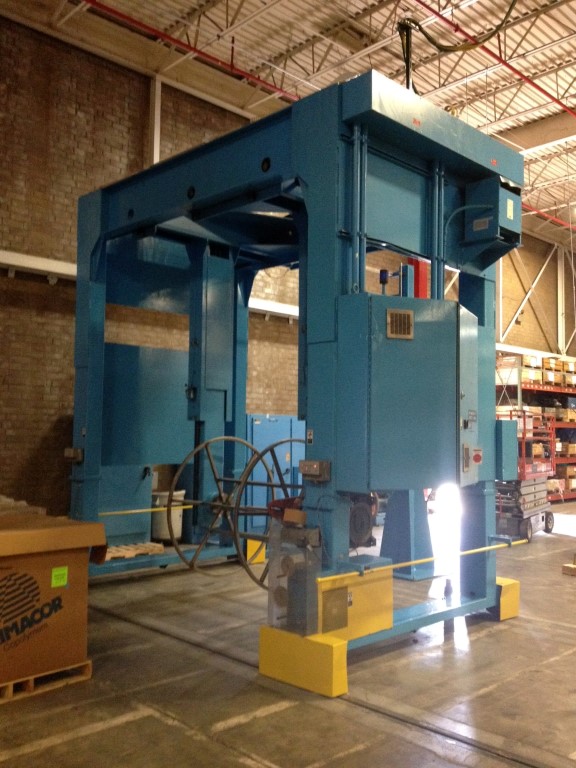

144" (3.6m) Hall Take up, Portal, Floor Traversing

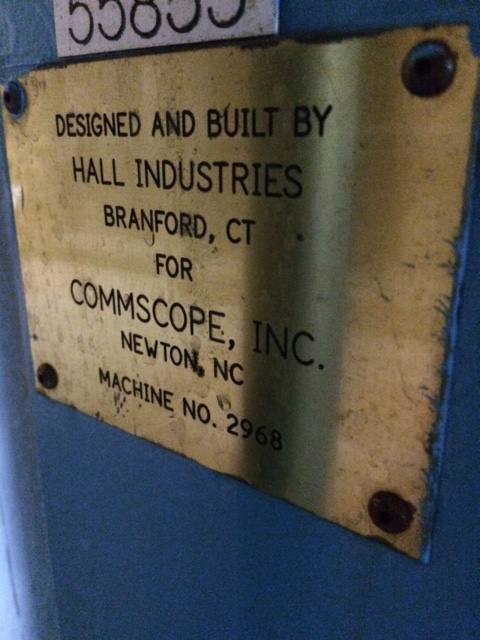

Serial Number: 2968
Year of Manufacture: 1999
Max Reel Weight:20,000 lbs (9 metric tons)
Reel Diameter range: 72"-144" (1.8m - 3.6m)
Reel Width range: 30" - 80" (760mm - 2m)

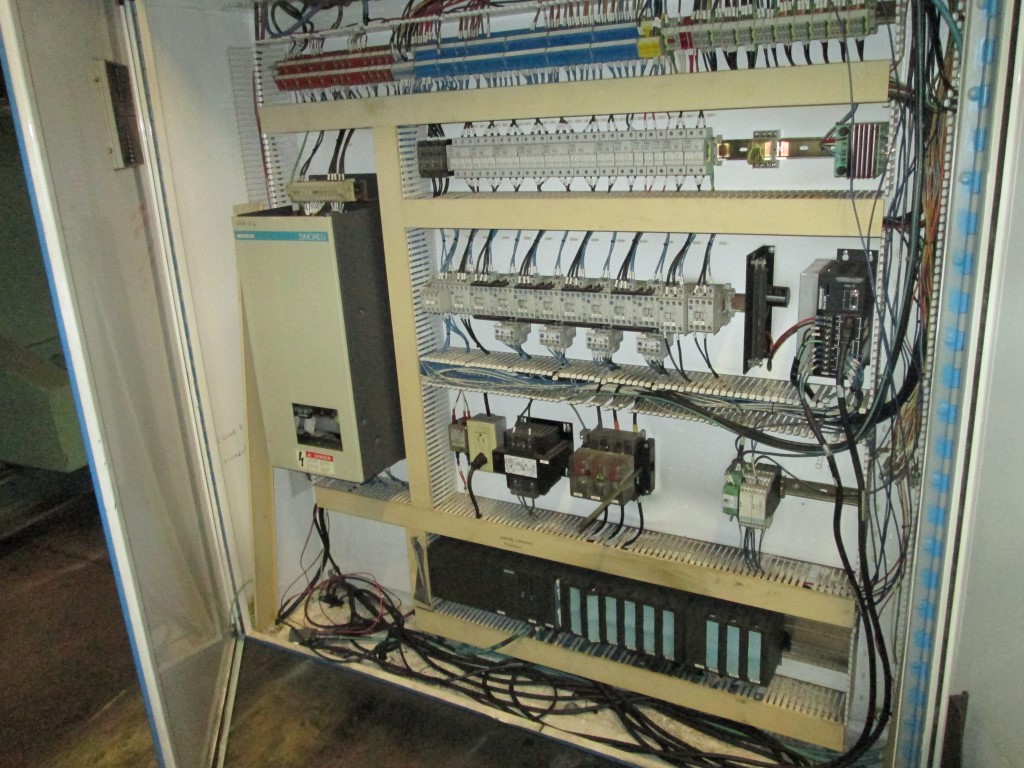

Drive: Siemens 6RA24DC Digital DC Regenerative
PLC: Siemens S7 Model S7-315-2DP
HMI: Siemens 6" (150mm) color touchscreen
7.5 HP DC Motor
Browning Gear Box - Ratio/100 - input 1750 RPM - output Torque 49000 IN LBS
Festoons available for each unit.

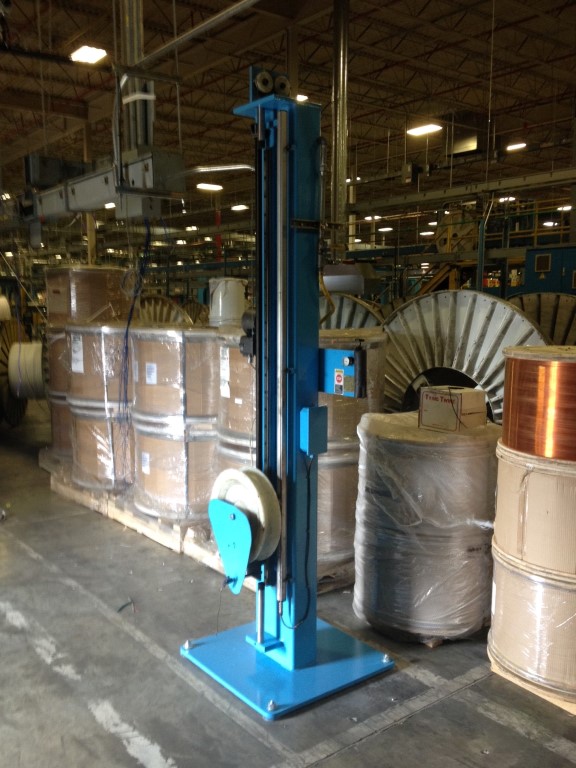

Hall Vertical Guide Stands (2)
|
|
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned.
Items listed on the website are for infomational purposes only.
Please base your purchasing decision on
specific information you receive from your sales representative.
|
|
