Hipotronics Multiconductor Cable Tester

Model ATS-20-100-1-MOD3
Serial # 701-10-413-2
with fan Out Board

ATS Series Test Sets can perform the following tests:
Continuity
Hipot (up to 10kVac/20kVdc)
conductor to conductor
conductor to shield
Insulation Resistance (optional)
Conductor Resistance
(100-5000 Ohms, +1%)
Conductor Resistance Unbalance
Mutual Capacitance (with installed
capacitance meter)
Low Voltage Shield Isolation

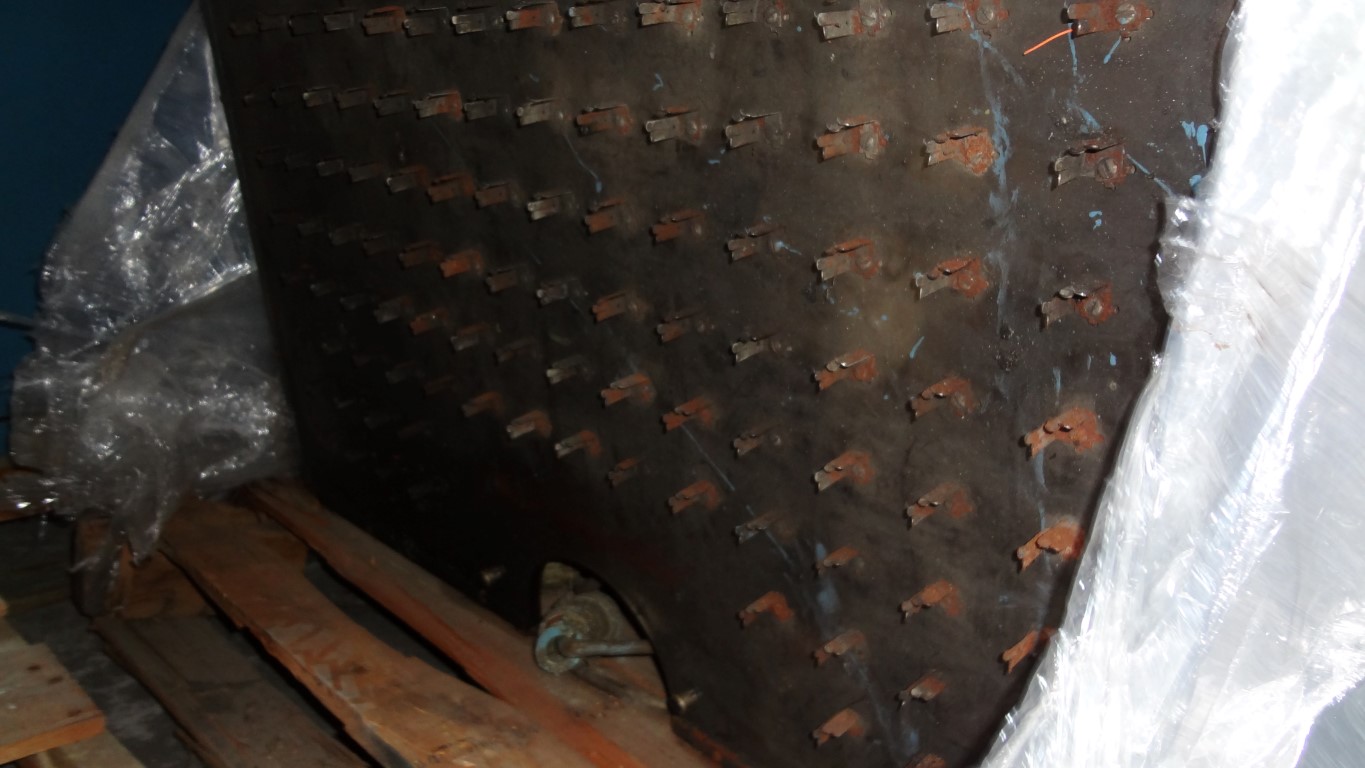

84 Positions Board

Applications
Telephone Cable
SCSI Cables
Category Cables
Control/Signal Cables
LAN Cables
