Trumpf Laser Welder, model TruPulse 156 20-06-09-A6, Year 2007
|
Product Code:WEL508
Manufacturer:Trumpf
Location: Wadesboro, North Carolina
|
|
|

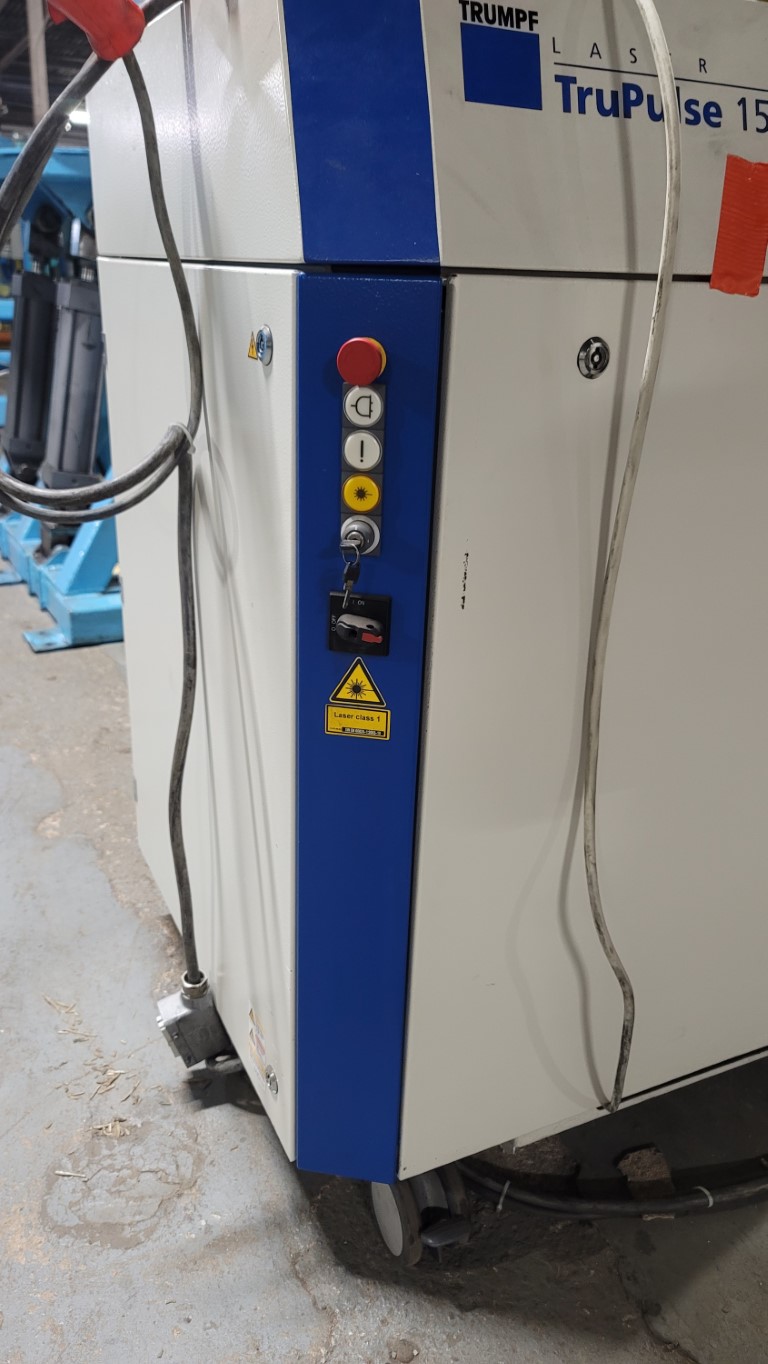

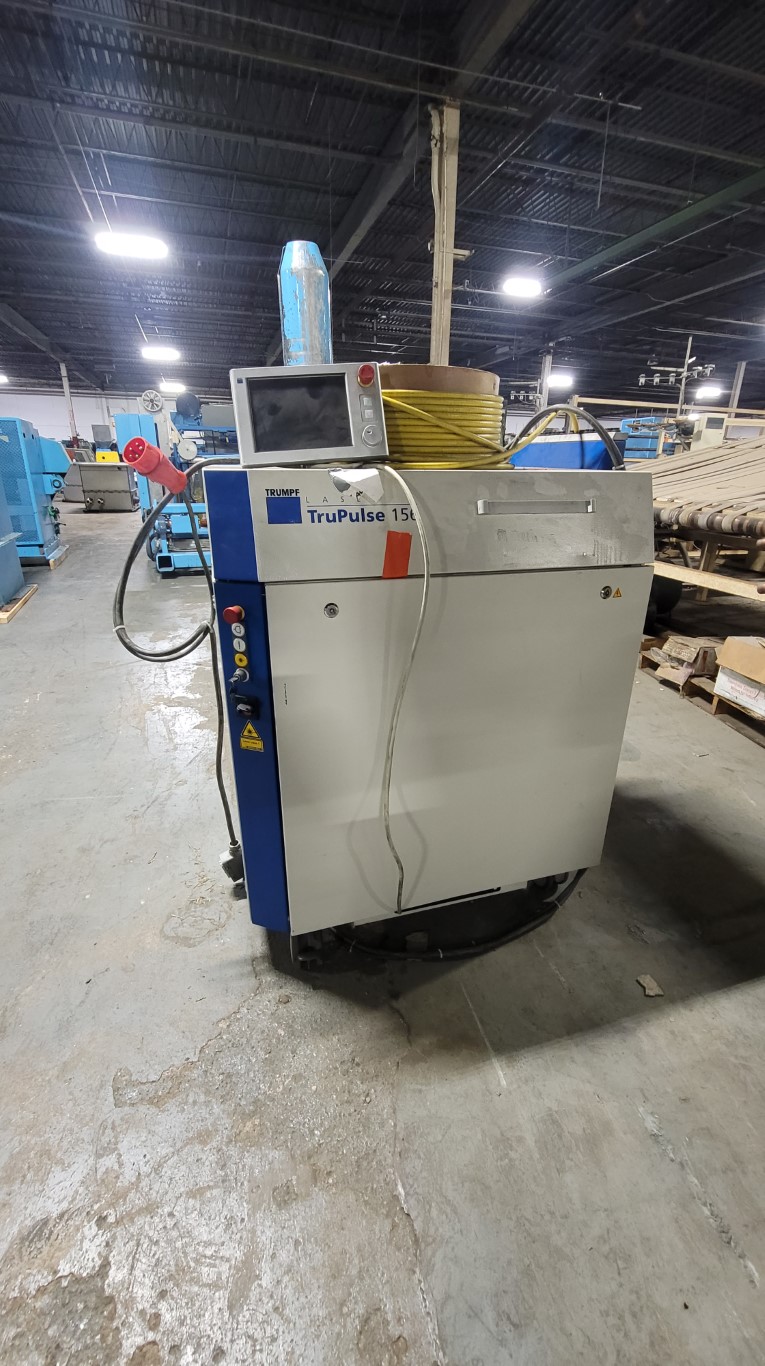

Trumpf Laser Welder
Model: TruPulse 15620-06-09-A6
Serial Number: E0751A0282
Year of Manufacture 2007
50-60 Hz., IP54
Laser Parameters
Laser Power
Laser Power at the workpiece: 140W, 150W,160W
Max. Peak Pulse Power: 6W, 10W
Beam Quality: 25 mm▪mrad
Wavelength:1064 nm
Adjustable pulse juration: 0.3 ms - 50 ms
Max pulse sequence frequency: 833 Hz
Max pulse energy: 30 J,80 J,120 J
Minimum laser light cable diameter: 600 μm
|
|
