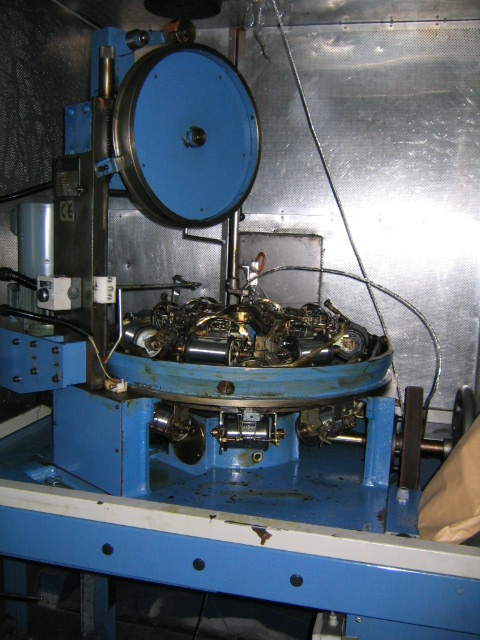

16 Carrier Wardwell-Dratex Braider

Model: Dratex 16

Type: 1615

Serial Number: 29292

Year of Manufacture: 1999

Bobbin rotational speed: 50 to 150 RPM

Jog speed: 12 RPM

Bobbin dimensions 1: 75mm diameter x 100/70mm wide - 260 cu.cm capacity

Bobbin dimensions 2: 80mm diameter x 100/80mm wide - 370 cu.cm capacity

Braid material: All soft metals and textile materials

Diameter of pullout capstan: 380mm

Central passage: 15mm

Braid maximum diameter: 14mm

Motor capacity: 2.2 kW

Floor space requirement: 1500 x 1500 mm

Machine weight: 1000 Kg

Noise level: 80 dB (A)

Guard: Full machine enclosure

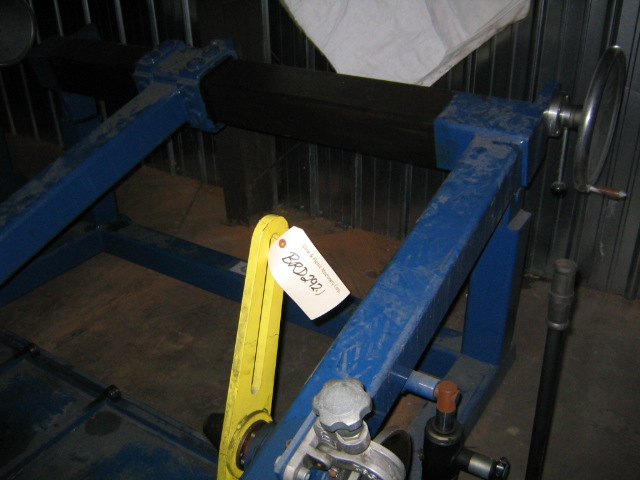

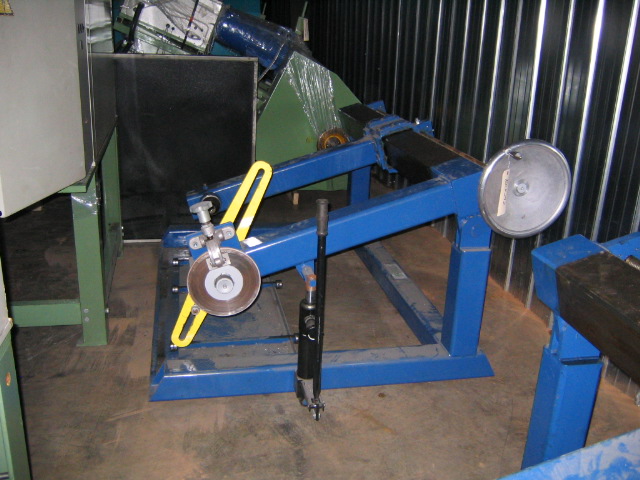

1.5 m Transportkabel DixiShaftless payoff

Maximum Reel Diameter 1500 mm (59")

Minimum Reel Diameter 1000 mm (39.4")

Traverse Width 600 (24") to 1050 mm (42.5")

Maximum Weight 1200 Kg (2640 lbs)

Reel clampingand reel width adjustment is by hand wheel

Reel lift by Hand operated Hydraulic Pump

Back tension is provided by a manually adjusted Disc Brake (20 Nm)

Line Speed 50 m/ minute

Overall Dimensions1900-2100 mm x 1350 mm

Weight 1100 Kg

TKU1370.1

1.5 m Transportkabel DixiShaftlessTake up. Not Available. SOLD 9/2/22 JN-21081

Excellent condition - Like New
