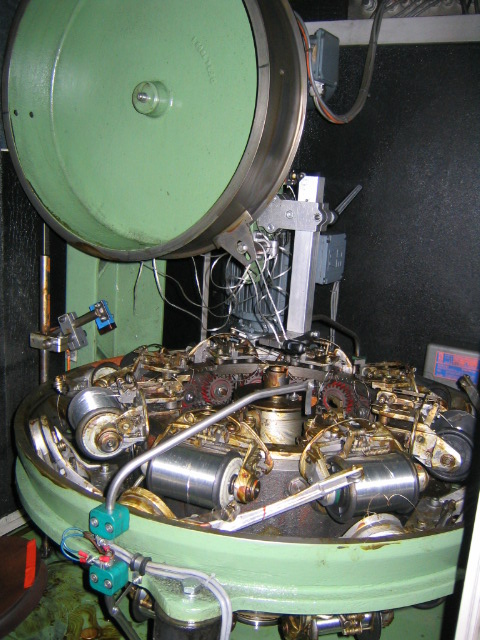

16 Carrier Spirka Braider

Model DF16A

Serial Number: 6956

Year of Manufacture: 2000

Number of Bobbins: 16
Braid binding: 2 over 2
Bobbin Speed: 165 RPM
Bobbin Capacity: 380cm³
Bobbin Type: Spirka S1, S2, S3, HSP, WSN, S16-3107
Central Passage: 15 mm
Bobbin carrier tension ranges: 0.5 up to 5 N
Bundle cross Section: 0.02 - 0.30mm²
Braiding material: Cu. Al. Stainless Steel
Braiding Pitch: 1 to 30mm, 2 to 60mm, 3 to 90mm
Capstan diameter: 400mm or 500 mm
Motor: 2.2 kW
Power requirements: 5 kVA
Noise level: less than 80 dB(A)
Full sound enclosure

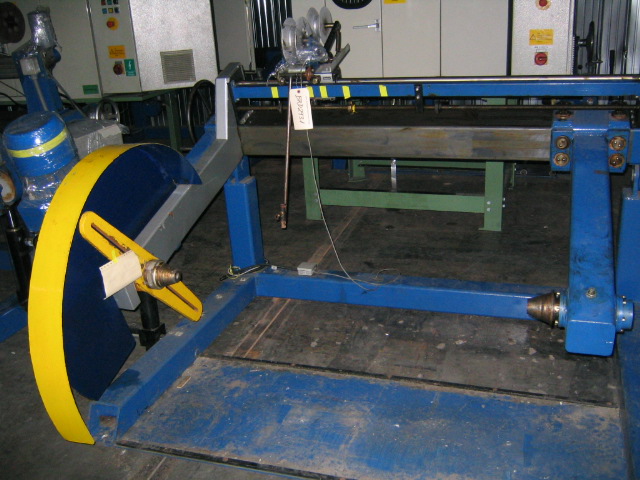

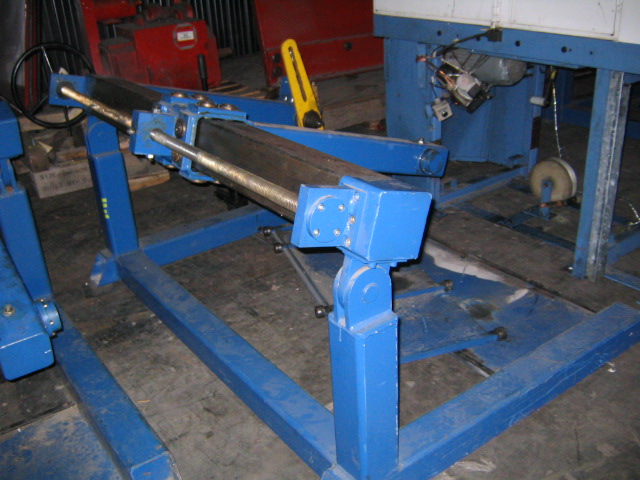

1.5 m Transportkabel Dixi Shaftless payoff
Model OD1500
Maximum Reel Diameter 1500 mm (59")
Minimum Reel Diameter1000 mm (39.4")
Traverse Width 600 (24") to 1050 mm (42.5")
Maximum Weight 1200 Kg (2640 lbs)
Reel clamping and reel width adjustment is by hand wheel
Reel lift by Hand operated Hydraulic Pump
Back tension is provided by a manually adjusted Disc Brake (20 Nm)
Line Speed 50 m/ minute

Overall Dimensions 1900-2100 mm x 1350 mm
Weight 1100 Kg
