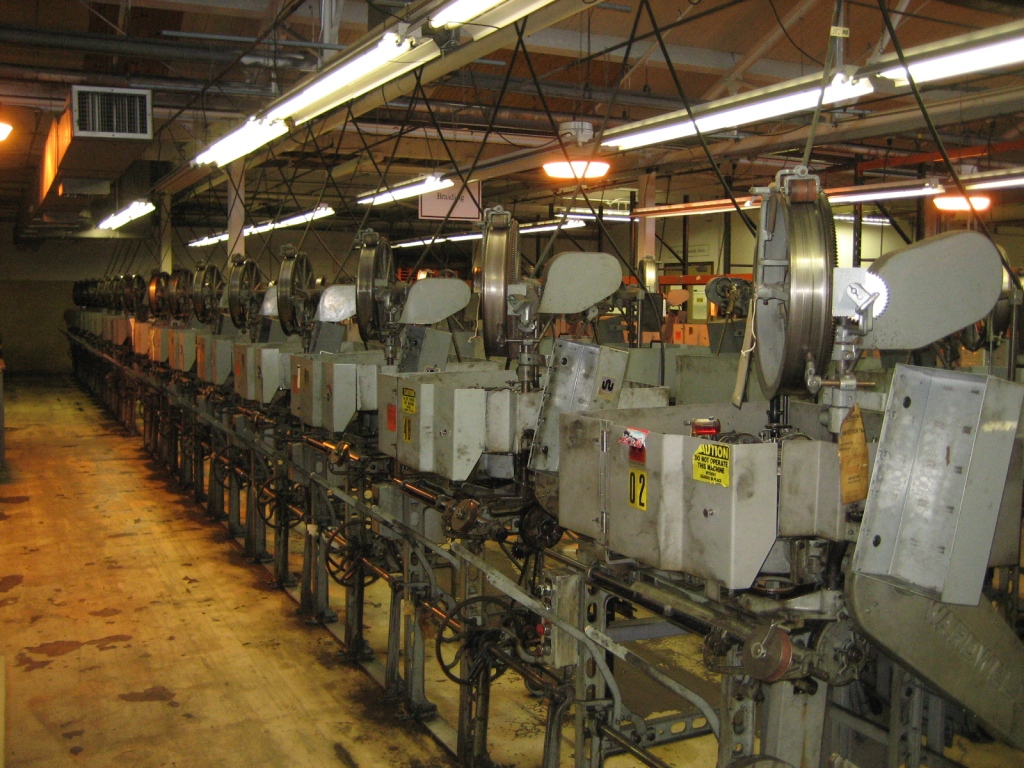

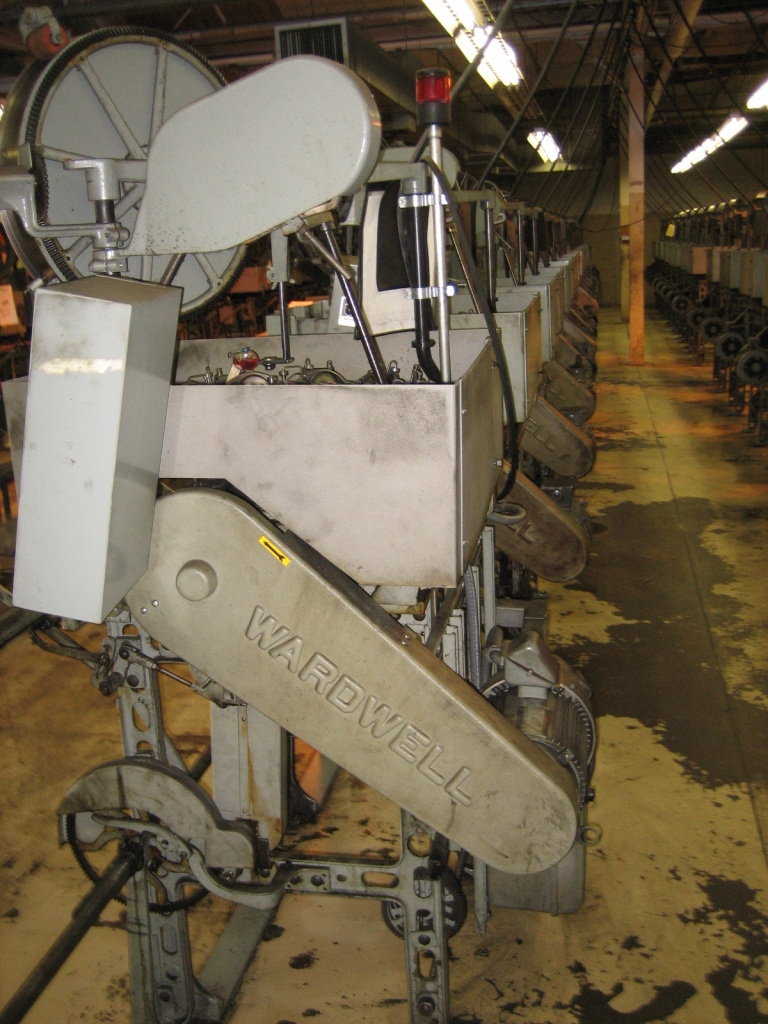

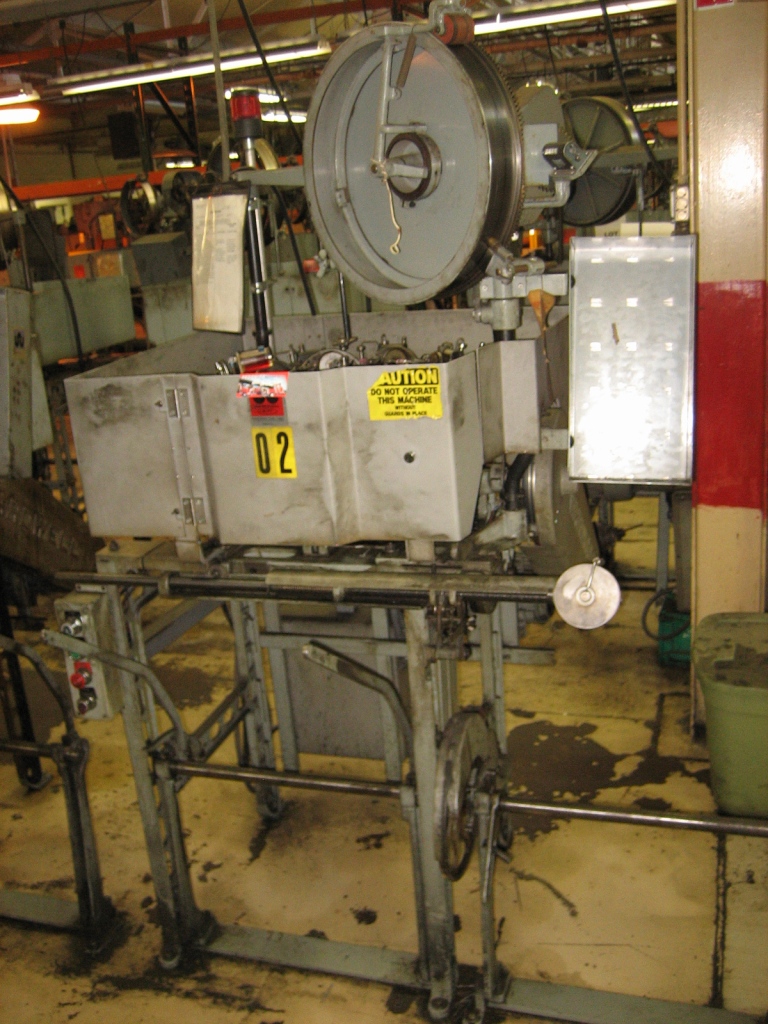

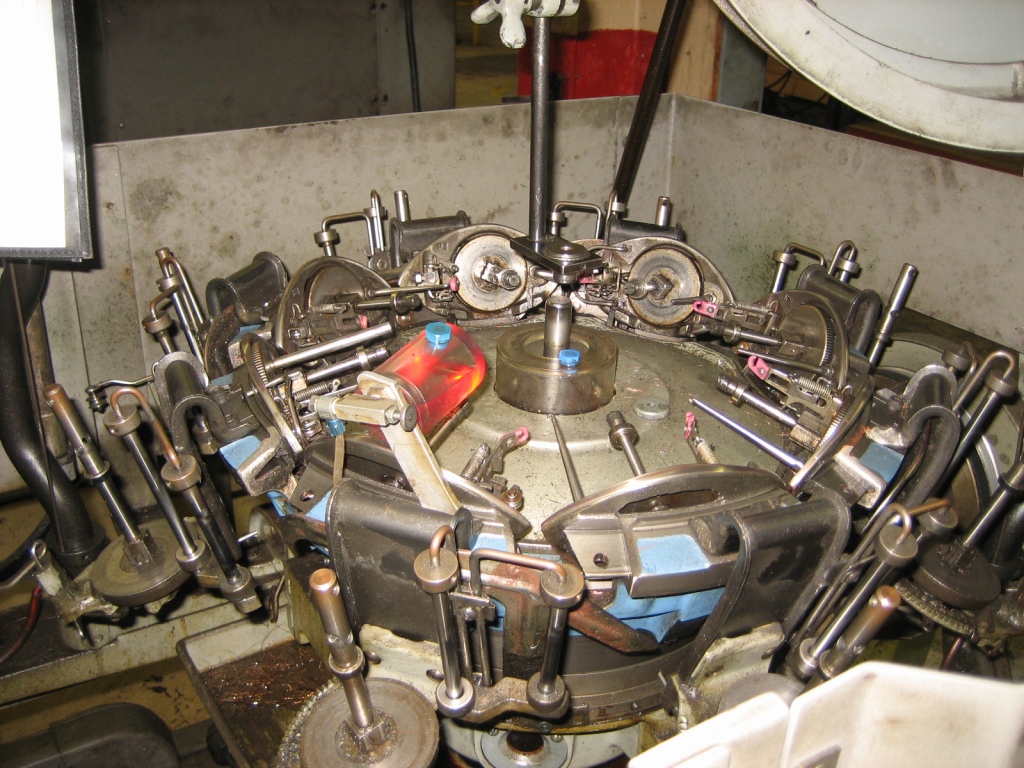

16 Carrier Wardwell braider
Model: Speedmaster 150
Set up on wire

Specifications:
150 RPM carrier speed
1200 picks / minute production
459 RPM driving pulley speed
3.05:1 pulley to carrier speed ratio
18” diameter x 3” wide capstan wheel
9/16” product passage
½” diameter maximum flexible conductor
1 HP motor 50-60 Hz
36" x 20" Frame,

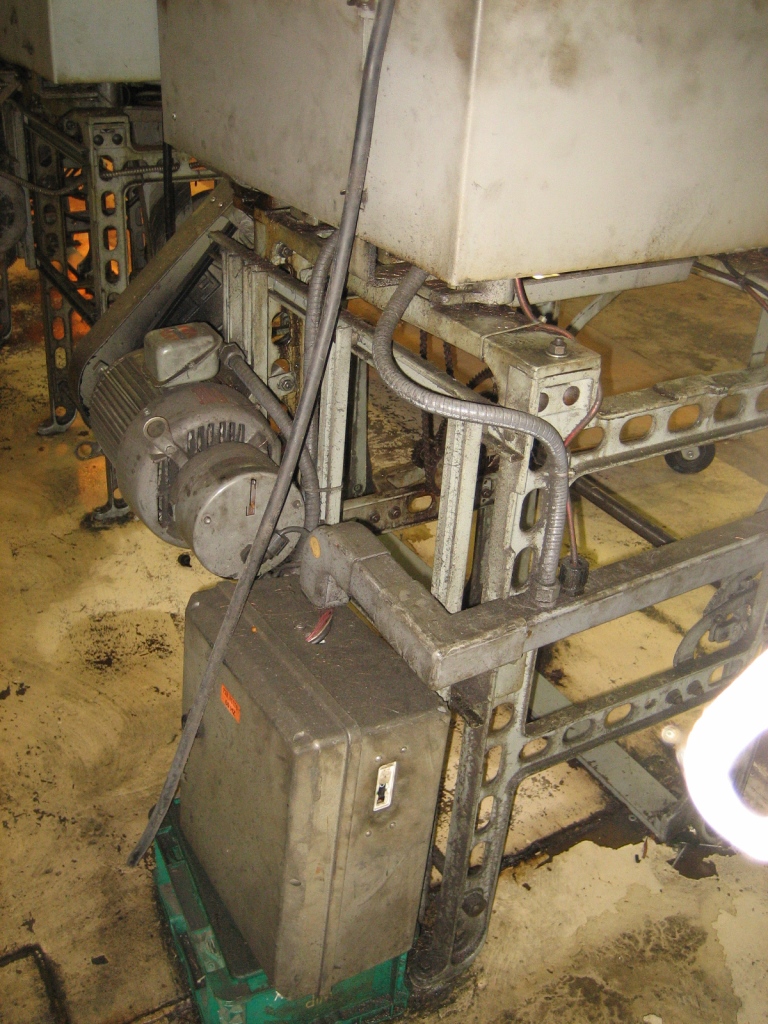

Direct drive individually motorized
Complete with head guards
Change gear guards
Payoff and take up

Excellent condition
